OIL PUMP - OIL FILTER
GS1150EG 1985 (F) USA (E03)

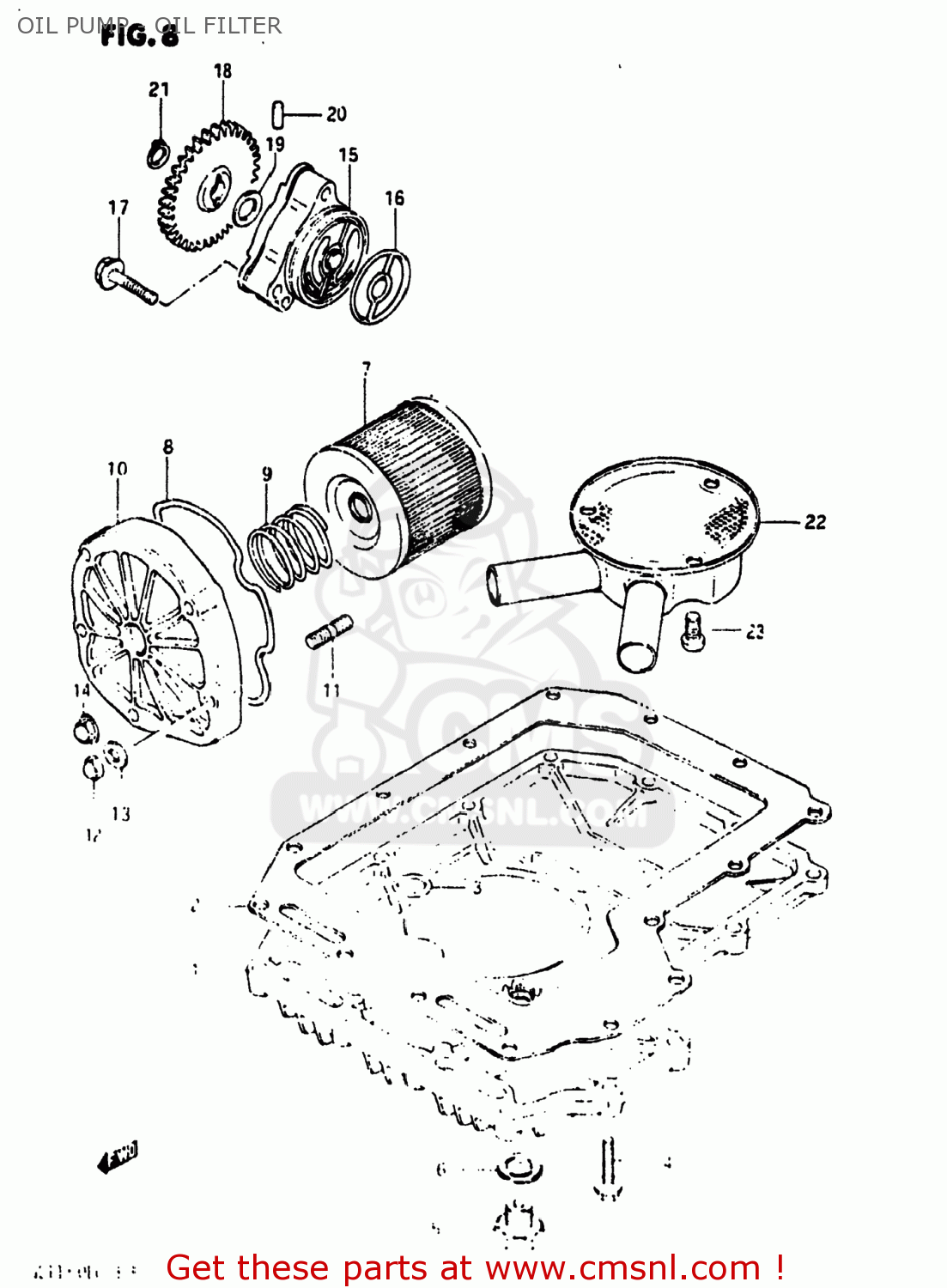

Oil pump - oil filter diagram GS1150EG 1985 (F) USA (E03)
OIL PUMP - OIL FILTER GS1150EG 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151149200
ref: 1
11511-49201
PAN,OIL
€ 255.50
2-1
1148949200
ref: 2-1
11489-49201-H17
GASKET,OIL PAN (MCA)
€ 13.00
2-2
1148949201
ref: 2-2
11489-49201-H17
GASKET,OIL PAN (MCA)
€ 13.00
3
0928013001
ref: 3
O RING(D:3.2,ID:12.9)
€ 4.00
4
0151706254
ref: 4
01550-0625A
BOLT
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
€ 7.50
8
1651849200
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 8.50
9
0944032004
ref: 9
SPRING
€ 13.50
10
1653100A00
ref: 10
CAP,ENGINE OIL FILTER
€ 151.50
11
0142106258
ref: 11
01421-06257
STUD 6X25
€ 2.50
12
0831311065
ref: 12
08313-1006A
NUT 6MM
€ 2.00
13
0832221064
ref: 13
08322-0106B
WASHER
€ 2.00
14
0831321065
ref: 14
08313-2006A
NUT
€ 2.00
15
1640049220
ref: 15
PUMP ASSY,ENGINE OIL
€ 155.00
16
1649131300
ref: 16
O RING,OIL PUMP
€ 12.50
17
0910306045
ref: 17
BOLT(6X32)
€ 3.00
18
1633149000
ref: 18
GEAR,ENG OIL PUMP DRIVEN(NT:33
€ 84.50
19
0822110185
ref: 19
SHIM
€ 2.00
20
0926104009
ref: 20
PIN(4X15.8)
€ 1.50
21
0833131109
ref: 21
CIRCLIP
€ 2.00
22
1652049200
ref: 22
STRAINER,ENGINE OIL
€ 58.50
23
0211206128
ref: 23
02112-06127
SCREW 6X12
€ 2.00
