CRANKSHAFT
GS300L 1982 (Z) USA (E03)

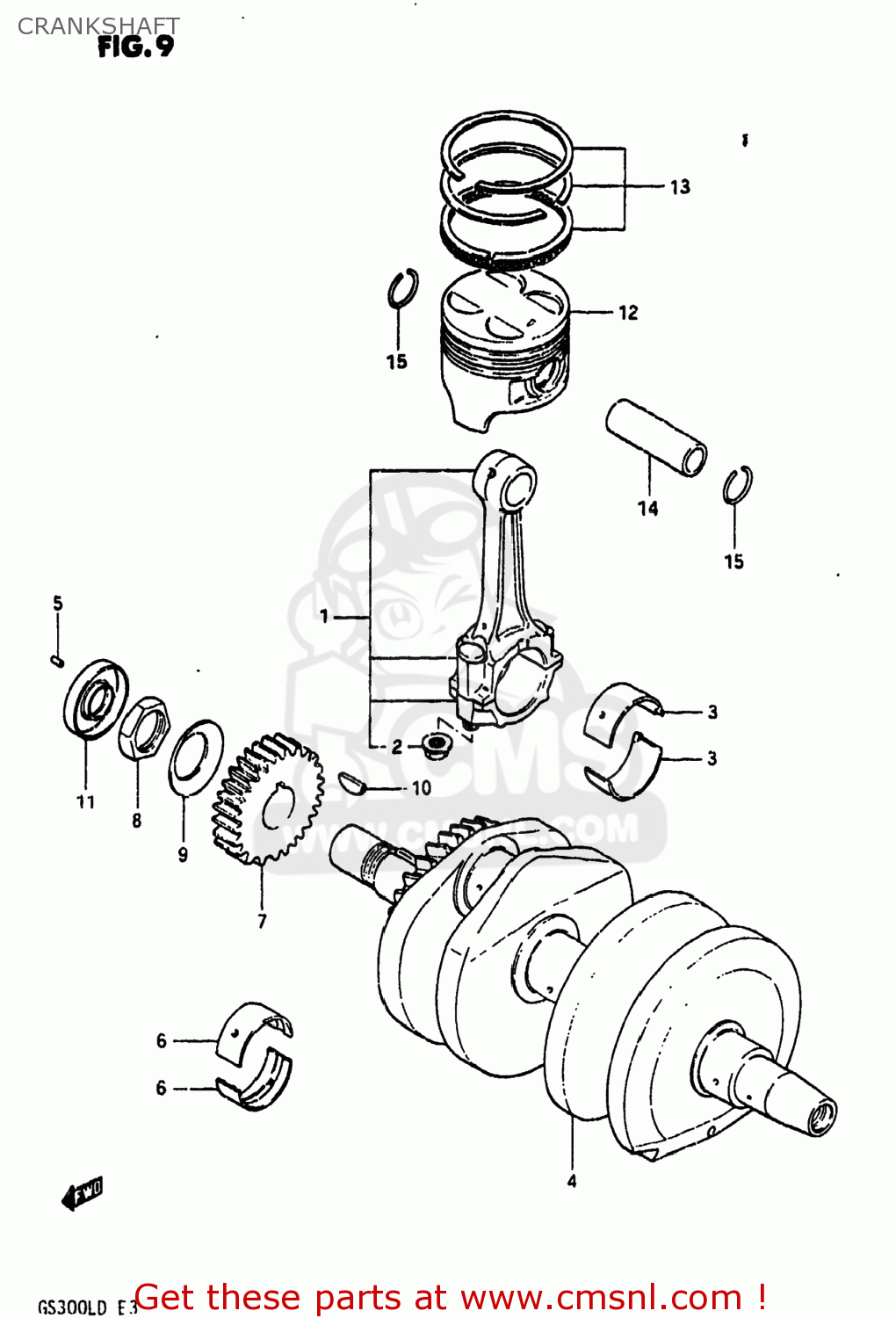

Crankshaft diagram GS300L 1982 (Z) USA (E03)
CRANKSHAFT GS300L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1216011900
ref: 1
ROD ASSEMBLY,CONNECTING
€ 63.00
2
0915908033
ref: 2
NUT
€ 2.50
3-1
1216411400010
ref: 3-1
12164-33300-0A0
BEARING,CRANK PIN GREEN
€ 12.00
3-10
1216433210050
ref: 3-10
BEARING,CRANK PIN(US:0.5)
€ 11.00
3-2
1216411400020
ref: 3-2
12164-33300-0B0
BEARING,CRANK PIN BLACK
€ 12.50
3-3
1216411400030
ref: 3-3
12164-33300-0C0
BEARING,CRANK PIN BROWN
€ 12.50
3-4
1216411400040
ref: 3-4
12164-33300-0D0
BEARING,CRANK PIN YELLOW
€ 11.50
3-5
1216433210010
ref: 3-5
12164-33300-0A0
BEARING,CRANK PIN
€ 12.00
3-6
1216433210020
ref: 3-6
12164-33300-0B0
BEARING,CRANK PIN
€ 12.50
3-7
1216433210030
ref: 3-7
12164-33300-0C0
BEARING,CRANK PIN
€ 12.50
3-8
1216433210040
ref: 3-8
12164-33300-0D0
BEARING,CRANK PIN
€ 11.50
3-9
1216433210025
ref: 3-9
BEARING,CRANK PIN(US:0.25)
€ 11.50
4
1222011901
ref: 4
CRANKSHAFT
€ 311.00
5
0621103052
ref: 5
04221-03059
PIN 3X5
€ 1.50
6-1
1222911400010
ref: 6-1
12229-43400-0A0
METAL CRANKSHAFT (YELLOW)
€ 9.50
6-2
1222911400020
ref: 6-2
12229-43400-0B0
METAL CRANKSHAFT (BROWN)
€ 12.00
6-3
1222911400030
ref: 6-3
12229-43400-0C0
METAL CRANKSHAFT (BLACK)
€ 10.00
6-4
1222911400040
ref: 6-4
12229-43400-0D0
METAL CRANKSHAFT (GREEN)
€ 10.50
6-5
1222911400025
ref: 6-5
BEARING,CRANKSHAFT(US:0.25)
€ 9.50
6-6
1222911400025
ref: 6-6
BEARING,CRANKSHAFT(US:0.25)
€ 9.50
7
2111111400
ref: 7
GEAR,PRIMARY DRIVE
€ 0.00
8
0914024007
ref: 8
NUT
€ 4.50
9
0916425001
ref: 9
WASHER
€ 4.50
10
0834131059
ref: 10
KEY
€ 3.00
11
0928322013
ref: 11
09283-22015
OIL SEAL
€ 10.50
12-1
1211111901
ref: 12-1
12111-11902
PISTON
€ 36.50
12-2
1211111902
ref: 12-2
PISTON (62.00MM)
€ 36.50
12-3
1211111901050
ref: 12-3
12111-11902-050
PISTON (OS:0.5)
€ 38.00
12-4
1211111902050
ref: 12-4
PISTON (OS:0.5)
€ 38.00
12-5
1211111901100
ref: 12-5
12111-11902-100
PISTON (OS:1.0)
€ 32.50
12-6
1211111902100
ref: 12-6
PISTON (OS:1.0)
€ 32.50
13-1
1214034240
ref: 13-1
RING SET,PISTON
€ 50.00
13-2
1214034211050
ref: 13-2
12140-34240-050
RING SET,PISTON (OS:0.5)
€ 44.00
13-3
1214034240050
ref: 13-3
RING SET,PISTON (OS:0.5)
€ 44.00
13-4
1214034211100
ref: 13-4
12140-34240-100
RING SET,PISTON (OS:1.0)
€ 34.50
13-5
1214034240100
ref: 13-5
RING SET,PISTON (OS:1.0)
€ 34.50
14
1215178110
ref: 14
12151-60D00
PIN,PISTON
€ 15.00
15
0938116002
ref: 15
09381-16001
CIRCLIP
€ 1.50
