FRONT FORK
GS300L 1982 (Z) USA (E03)

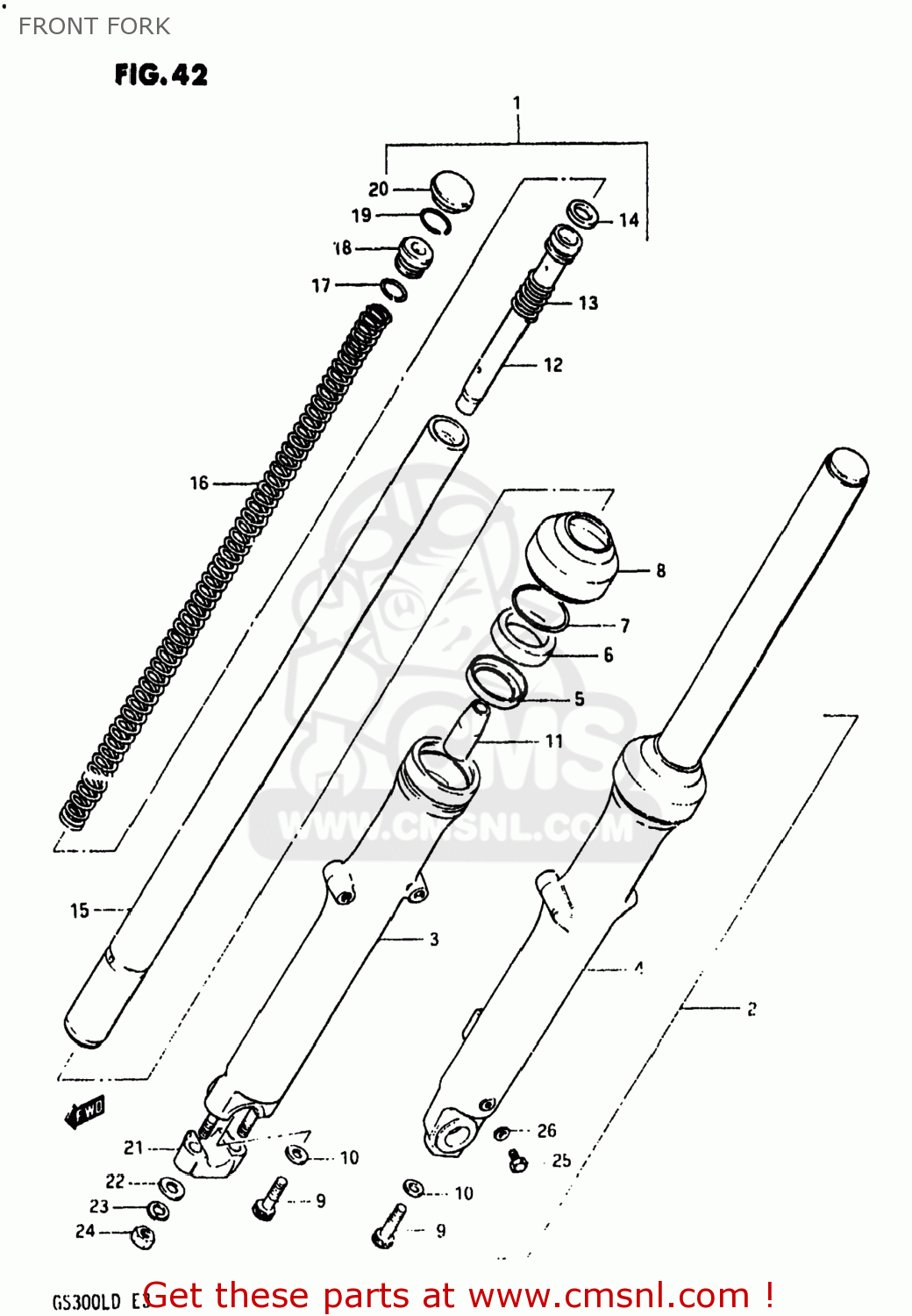

Front fork diagram GS300L 1982 (Z) USA (E03)
FRONT FORK GS300L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110311900
ref: 1
DAMPER ASSEMBLY,FRONT FORK
€ 180.00
2
5110411900
ref: 2
DAMPER ASSEMBLY,FRONT FORK,LEFT
€ 191.50
3
5113011900
ref: 3
TUBE,OUTER,RIGHT
€ 136.00
4
5114011900
ref: 4
TUBE,OUTER,LEFT
€ 106.50
5
5116844030
ref: 5
SPACER,OIL SEAL
€ 4.50
6
5115337310
ref: 6
51153-02B00
OIL SEAL,FRONT FORK
€ 15.00
7
5115633130
ref: 7
51156-02B00
CIRCLIP,FORK OIL SEAL
€ 4.50
8
5157137310
ref: 8
DUST SEAL
€ 22.00
9
5114748130
ref: 9
BOLT(8X27)
€ 3.50
10
5114831030
ref: 10
51148-36011
GASKET (NAS)
€ 4.00
11
5119548000
ref: 11
PIECE,OIL LOCK
€ 8.50
12
5114611400
ref: 12
CYLINDER,FRONT FORK
€ 43.00
13
5117736030
ref: 13
SPRING,REBOUND
€ 4.50
14
5119633130
ref: 14
RING,PISTON
€ 7.50
15
5111044170
ref: 15
TUBE,FORK,INNER
€ 87.00
16
5117111900
ref: 16
51171-11500
SPRING,FRONT FORK
€ 43.50
17
5118133131
ref: 17
O RING
€ 5.00
18
5117548500
ref: 18
SEAT,SPRING
€ 9.00
19
5116948500
ref: 19
RING,STOPPER
€ 2.00
20
5118944301
ref: 20
51189-44031
CAP,FRONT FORK
€ 7.00
21
5113231030
ref: 21
HOLDER,AXLE
€ 31.50
22
0832221088
ref: 22
08322-01087
WASHER
€ 2.00
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
0831012088
ref: 24
08310-00087
NUT
€ 2.00
25
0910006011
ref: 25
BOLT(6X8)
€ 2.50
26
5118331030
ref: 26
GASKET,DRAIN,PLUG (NAS)
€ 4.00
