CYLINDER HEAD
GS300L 1982 (Z) USA (E03)

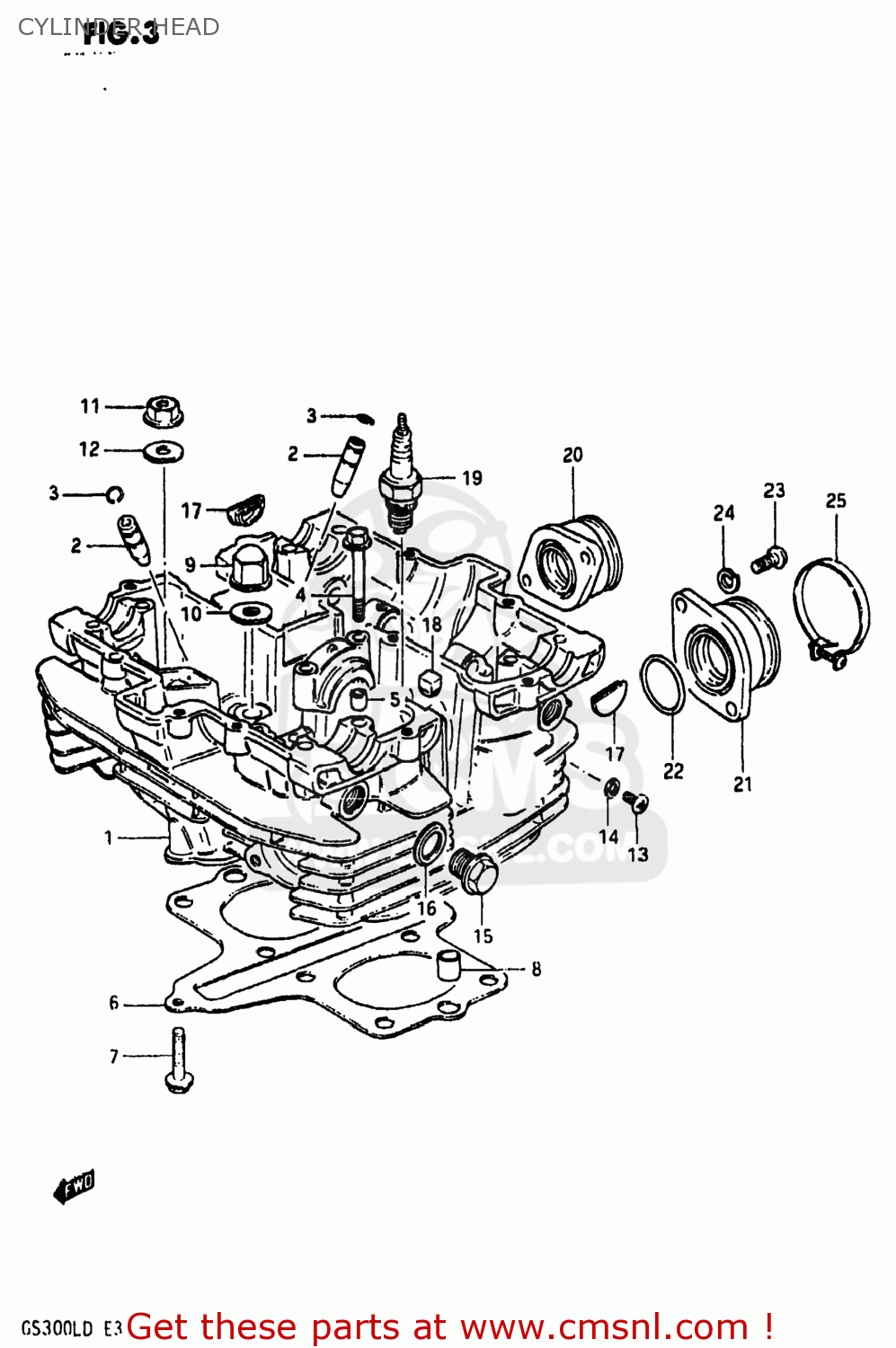

Cylinder head diagram GS300L 1982 (Z) USA (E03)
CYLINDER HEAD GS300L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110011420
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 453.50
1-2
1110011450
ref: 1-2
11100-11420
HEAD ASSEMBLY,CYLINDER
€ 453.50
2
1111511470
ref: 2
GUIDE,INTAKE VALVE
€ 15.00
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
€ 2.00
6
1114111900
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 50.50
7-1
0151706308
ref: 7-1
01550-06307
BOLT
€ 2.00
7-2
0151706305
ref: 7-2
01550-0630A
BOLT 6X30
€ 2.50
8
0421111189
ref: 8
PIN
€ 2.00
9
0915908029
ref: 9
NUT
€ 6.00
10
0916808013
ref: 10
GASKET(8.5X20X2.3) (NAS)
€ 4.50
11
0915908031
ref: 11
09159-08034
NUT
€ 2.00
12
0916008039
ref: 12
WASHER(8.5X19X2.3)
€ 2.00
13
0211205088
ref: 13
02112-05087
SCREW
€ 2.00
14
0916805010
ref: 14
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
15
0924714012
ref: 15
09247-14026
PLUG (14X12)
€ 3.50
16
0916814004
ref: 16
GASKET(14X19.2X2) (NAS)
€ 2.50
17
0924123002
ref: 17
PLUG
€ 8.50
18
1115145000
ref: 18
PAD,CYLINDER HEAD
€ 3.00
19-1
0948200184
ref: 19-1
SPARK PLUG D9EA
€ 6.50
19-2
0948200185
ref: 19-2
SPARK PLUG X27ES-U
€ 0.00
20
1311011400
ref: 20
PIPE,INTAKE,R
€ 33.50
21
1312011400
ref: 21
PIPE,INTAKE,L
€ 31.50
22
0928030004
ref: 22
09280-30008
O-RING (D:2.4 ID:29.7)
€ 10.50
23
0211206208
ref: 23
02112-06207
SCREW
€ 2.00
24
0832121068
ref: 24
08321-01067
LOCK WASHER
€ 2.50
25
0940248306
ref: 25
09402-48208
CLAMP
€ 4.50
