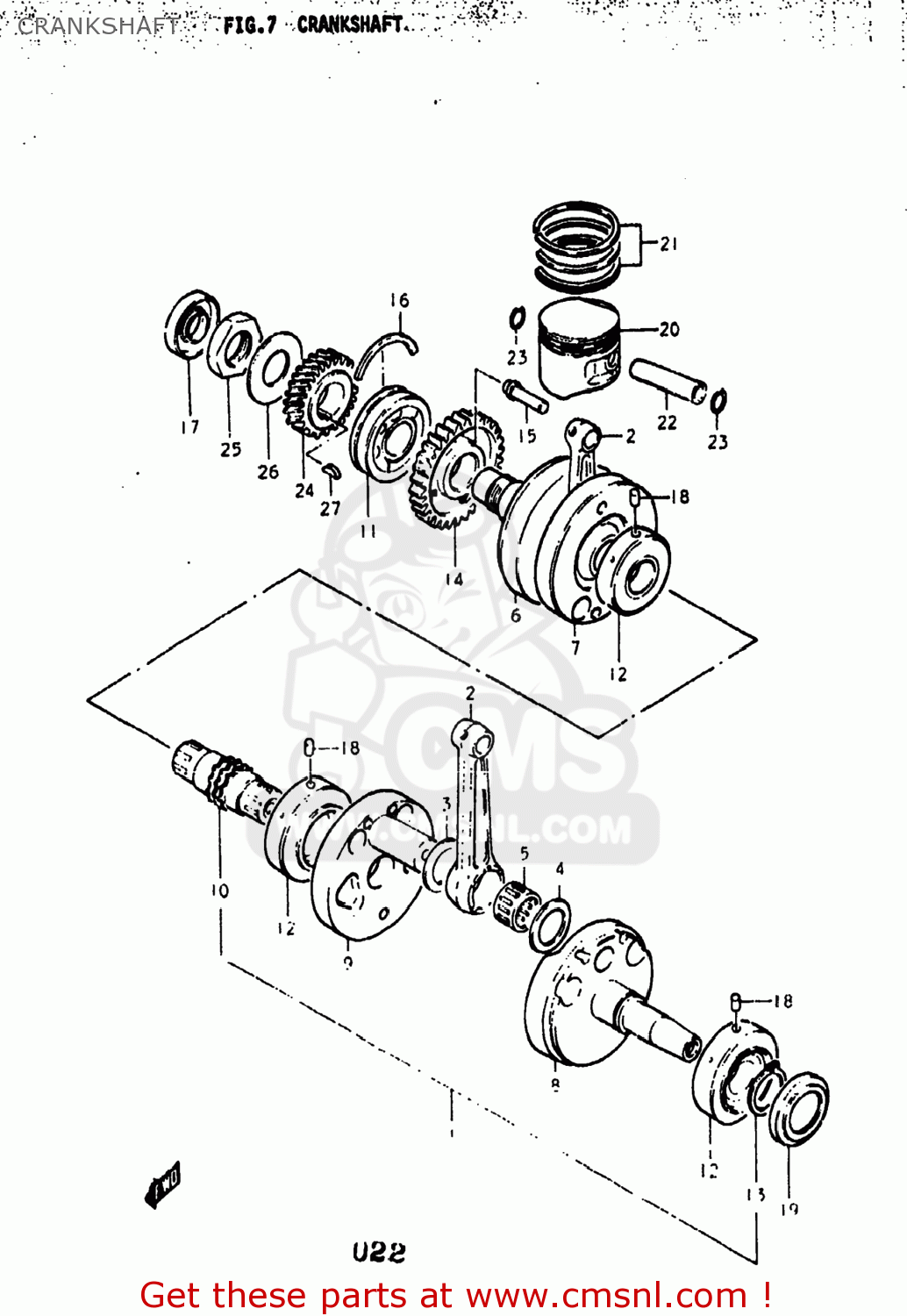

CRANKSHAFT

ref

part #

description

quantity

1

1220044001
ref: 1
12200-44003

CRANKSHAFT ASSEMBLY

€ 0.00

2

1216144000
ref: 2
12161-44001

CONNECTING ROD

€ 80.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328010
ref: 5

BEARING(28X38X19.8)

€ 22.00

6

1222044001
ref: 6

CRANKSHAFT

€ 203.00

7

1223044001
ref: 7
12230-44002

WEB,CRANK

€ 195.00

8

1226144001
ref: 8

CRANKSHAFT,LEFT

€ 0.00

9

1223044001
ref: 9
12230-44002

WEB,CRANK

€ 195.00

10

1228145000
ref: 10

SHAFT,TIMING CHAIN DRIVE

€ 53.50

11

0926230033
ref: 11

BEARING(30X72X19)

€ 47.00

12

0926432002
ref: 12
09264-32009

BEARING

€ 138.00

13

0833131329
ref: 13

CIRCLIP.32MM

€ 2.00

14

1266144001
ref: 14

GEAR,CRANK BALANCER DRIVE

€ 85.50

15

0920910014
ref: 15

PIN

€ 0.00

16

0939072004
ref: 16

C RING

€ 3.00

17

0928325062
ref: 17

SEAL,OIL(25X47X8)

€ 11.50

18

0621107122
ref: 18
04221-07129

PIN

€ 1.50

19

0928948001
ref: 19
09289-48002

OIL SEAL

€ 12.00

20-1

1211145001
ref: 20-1
12111-45002

PISTON

€ 49.00

20-2

1211145701
ref: 20-2
12103-45820-050

PISTON

€ 101.00

20-3

1211145711
ref: 20-3
12103-45820-100

PISTON

€ 133.00

21-1

1210045810
ref: 21-1
12140-45013

RING SET,PISTON

€ 59.00

21-2

1210045820
ref: 21-2
12140-45013-050

PISTON RING SET

€ 48.00

21-3

1210045830
ref: 21-3
12140-45013-100

PINSTON RING SET

€ 68.00

22

1215129001
ref: 22

PIN,PISTON

€ 9.00

23

0938116002
ref: 23
09381-16001

CIRCLIP

€ 1.50

24

2111144000
ref: 24

GEAR,PRIMARY DRIVE

€ 0.00

25

0914028001
ref: 25
09140-28003

NUT

€ 8.00

26

0916428001
ref: 26

WASHER

€ 0.00

27

0834131059
ref: 27

KEY

€ 3.00
