FRONT HUB (GS400XB)
GS400 1977 (B) USA (E03)

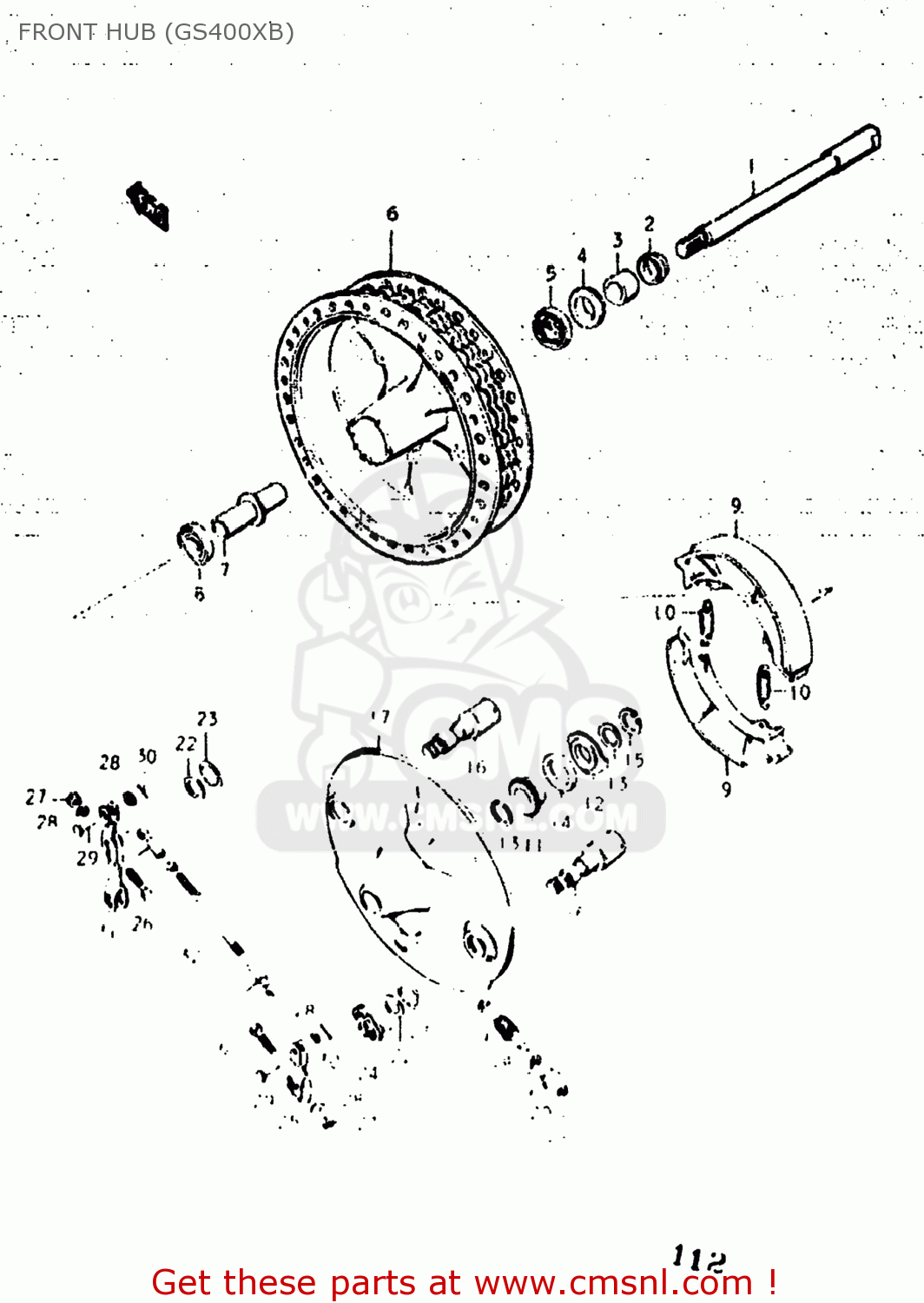

Front hub (gs400xb) diagram GS400 1977 (B) USA (E03)
FRONT HUB (GS400XB) GS400 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5471133002
ref: 1
54711-3300V
AXLE,FRONT
€ 41.00
2
5489211000
ref: 2
DUST SEAL,FRONT HUB DRUM
€ 3.50
3
0918015001
ref: 3
SPACER
€ 6.00
4
0928422001
ref: 4
OIL SEAL
€ 4.00
5
0811360020
ref: 5
BEARING
€ 14.00
6
5411015000
ref: 6
HUB,FRONT
€ 134.00
7
5473011000
ref: 7
SPACER,FRONT HUB BEARING
€ 36.00
8
0814362020
ref: 8
08143-62027
BEARING
€ 12.50
9
5441015000
ref: 9
54400-15820
SHOE,BRAKE (MCA)
€ 99.50
10
5542030000
ref: 10
SPRING,BRAKE SHOE
€ 3.50
11
5461136000
ref: 11
54611-36001
GEAR,SPEEDOMETER
€ 26.50
12
5466011030
ref: 12
54660-11031
DRIVER,SPEEDOMETER GEAR
€ 31.00
13
0916022001
ref: 13
WASHER(22.5X27X1)
€ 2.00
14
0928526001
ref: 14
09285-26003
OIL SEAL
€ 22.00
15
0833111229
ref: 15
08331-3122A
CIRCLIP
€ 2.00
16
5444011003
ref: 16
64440-38A00
CAM,FRONT BRAKE
€ 43.00
17
5421015002
ref: 17
PANEL,FRONT HUB
€ 89.00
18
5462111000
ref: 18
PINION,SPEEDOMETER
€ 11.50
19
0916005001
ref: 19
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
20
5463211020
ref: 20
54632-49200
BUSHING,SPEEDOMETER PINION
€ 6.50
21
0928906001
ref: 21
SEAL,OIL(6X10X3)
€ 4.00
22
0916015001
ref: 22
09160-15048
WASHER (15X24X1.6)
€ 2.50
23
0928015001
ref: 23
09280-15003
O-RING,BOSS
€ 2.00
24
0944830001
ref: 24
09448-30001-XC0
SPRING
€ 16.00
25
5446111000
ref: 25
LEVER,FRONT BRAKE CAM
€ 5.00
26
0910006050
ref: 26
09100-06150
BOLT
€ 1.50
27
0831111068
ref: 27
08310-00067
NUT
€ 2.50
28
0832221068
ref: 28
08322-01067
WASHER
€ 2.00
29
0920006001
ref: 29
PIN
€ 3.00
30
0411112108
ref: 30
04111-1210A
PIN 12X10
€ 2.00
31
5445011000
ref: 31
LEVER,FRONT BRAKE CAM
€ 6.50
32
5440011835
ref: 32
54400-18840
SHOE SET,BRAKE (NAS)
€ 40.00
