STARTING MOTOR (GS400B)
GS400 1977 (B) USA (E03)

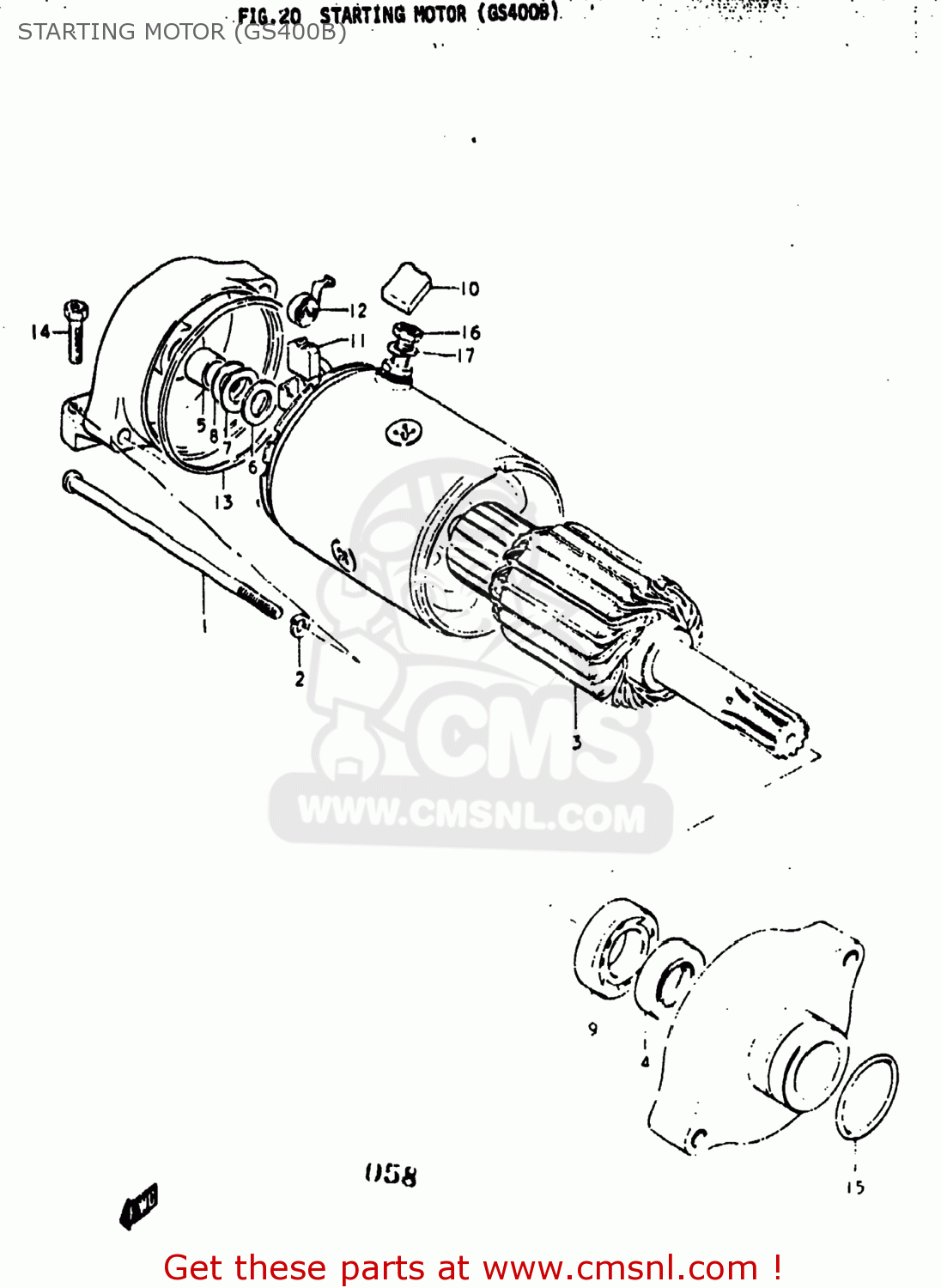

Starting motor (gs400b) diagram GS400 1977 (B) USA (E03)
STARTING MOTOR (GS400B) GS400 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3110045010
ref: 0
31100-49050
MOTOR ASSEMBLY,STARTING
€ 873.50
1
3128131010
ref: 1
31280-06B00
BOLT
€ 10.50
2
0832121058
ref: 2
08321-0105A
LOCK WASHER
€ 2.00
3
3131145010
ref: 3
ARMATURE
€ 163.00
4
3115345010
ref: 4
31153-43400
SEAL,OIL
€ 19.50
5
3115265010
ref: 5
BUSHING
€ 5.50
6
3136165010
ref: 6
SHIM, (1)
€ 0.00
7
3136251010
ref: 7
SHIM, (2)
€ 0.00
8
3136351010
ref: 8
SHIM, (3)
€ 0.00
9
3115545010
ref: 9
31155-45C00
BEARING
€ 21.00
10
3113165011
ref: 10
BRUSH(-)
€ 12.50
11
3113165011
ref: 11
BRUSH(-)
€ 12.50
12
3113565010
ref: 12
SPRING
€ 3.00
13
3126465010
ref: 13
GASKET
€ 0.00
14
0912806012
ref: 14
09103-06212
SCREW
€ 2.50
15
0928024001
ref: 15
O RING(D:2,ID:24.5)
€ 2.00
16
0831131068
ref: 16
08310-00067
NUT
€ 2.50
17
0832121068
ref: 17
08321-01067
LOCK WASHER
€ 2.50
