CRANKCASE
GS400 1978 (C) USA (E03)

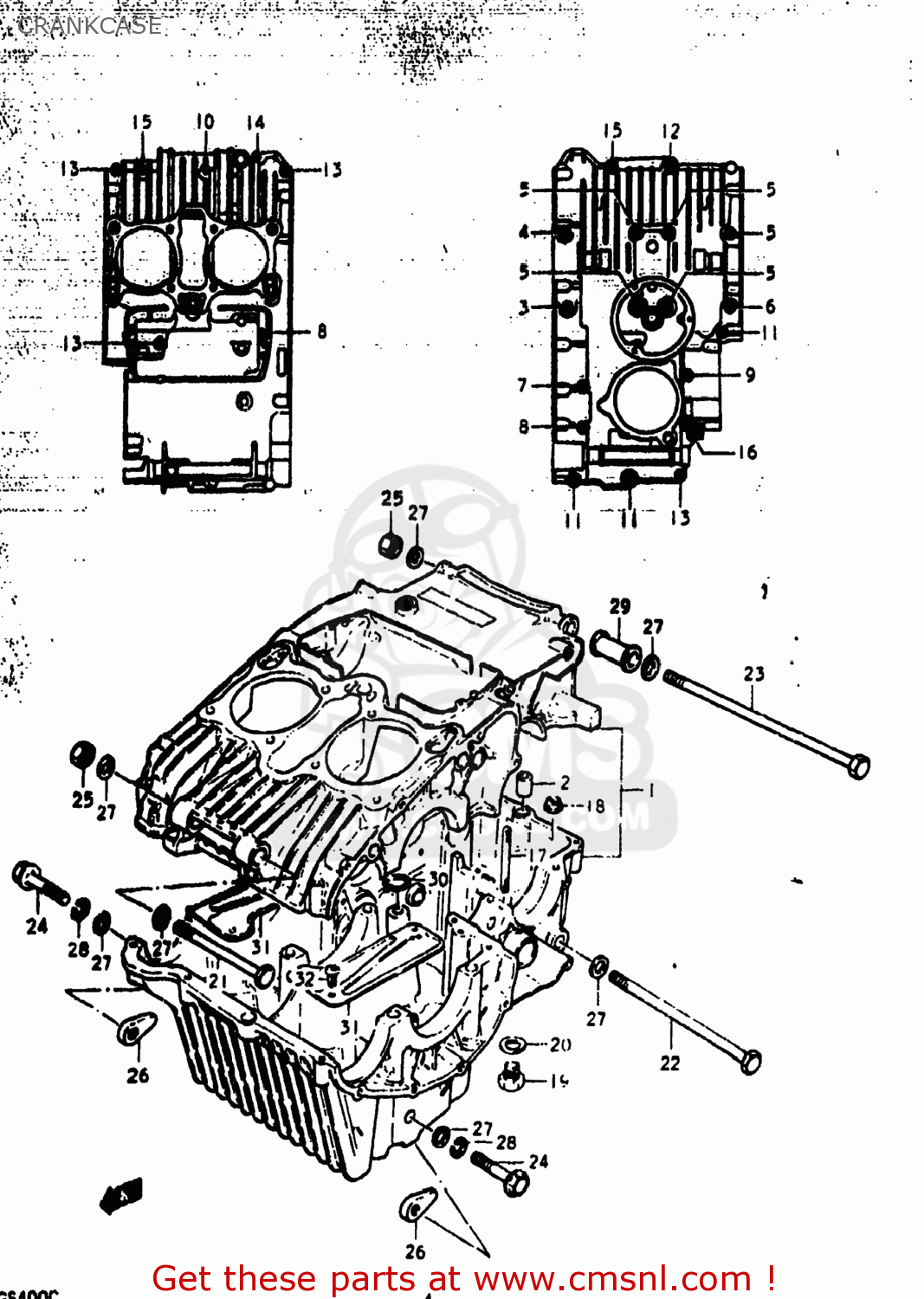

Crankcase diagram GS400 1978 (C) USA (E03)
CRANKCASE GS400 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130044812
ref: 1
CRANKCASE SET
€ 0.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308025
ref: 3
09103-08098
BOLT
€ 3.00
4
0151708958
ref: 4
01550-08957
BOLT (8X95)
€ 3.50
5
0151708908
ref: 5
01550-08907
BOLT 8X90
€ 3.50
6
0151708858
ref: 6
01550-0885B
BOLT
€ 3.50
7
0910306027
ref: 7
09103-06052
BOLT
€ 5.00
8
0151706908
ref: 8
01550-06907
BOLT (6X90)
€ 2.00
9
0151706708
ref: 9
01550-06707
BOLT (6X70)
€ 3.00
10
0151706658
ref: 10
01550-06657
BOLT 6X65
€ 3.00
11
0151706608
ref: 11
01550-06607
BOLT (6X60)
€ 2.50
12
0151706458
ref: 12
01550-06457
BOLT,UNDER
€ 2.50
13
0151706408
ref: 13
01550-06407
BOLT
€ 2.50
14
0151706358
ref: 14
01550-06357
BOLT 6X35
€ 2.50
15
0151706308
ref: 15
01550-06307
BOLT
€ 2.00
16
0151708458
ref: 16
01550-08457
BOLT (8X45)
€ 3.00
17
0142106408
ref: 17
01421-0640A
STUD BOLT
€ 2.50
18
0915906017
ref: 18
08319-31067
NUT
€ 2.50
19
0924714001
ref: 19
09247-14002
PLUG
€ 5.00
20
0916814004
ref: 20
GASKET(14X19.2X2) (NAS)
€ 2.50
21
0910010051
ref: 21
09100-10274
BOLT
€ 6.50
22
0910010092
ref: 22
41189-17X00
BOLT 10X160
€ 28.50
23
0910010110
ref: 23
BOLT 10X265
€ 57.00
24
0151710458
ref: 24
01550-1045B
BOLT 10X45
€ 3.00
25
0915910011
ref: 25
NUT
€ 3.00
26
0915910020
ref: 26
NUT
€ 7.50
27
0832211108
ref: 27
08322-01107
WASHER
€ 2.50
28
0832121108
ref: 28
08321-01107
LOCK WASHER
€ 2.00
29
0918010046
ref: 29
11610-44010
SPACER
€ 12.00
30
0928012005
ref: 30
09280-12012
O-RING
€ 5.00
31
1152144000
ref: 31
PLATE,OIL SEPARATOR
€ 0.00
32
0211206088
ref: 32
02112-06087
SCREW
€ 2.00
