TURN SIGNAL LAMP
GS400 1978 (C) USA (E03)

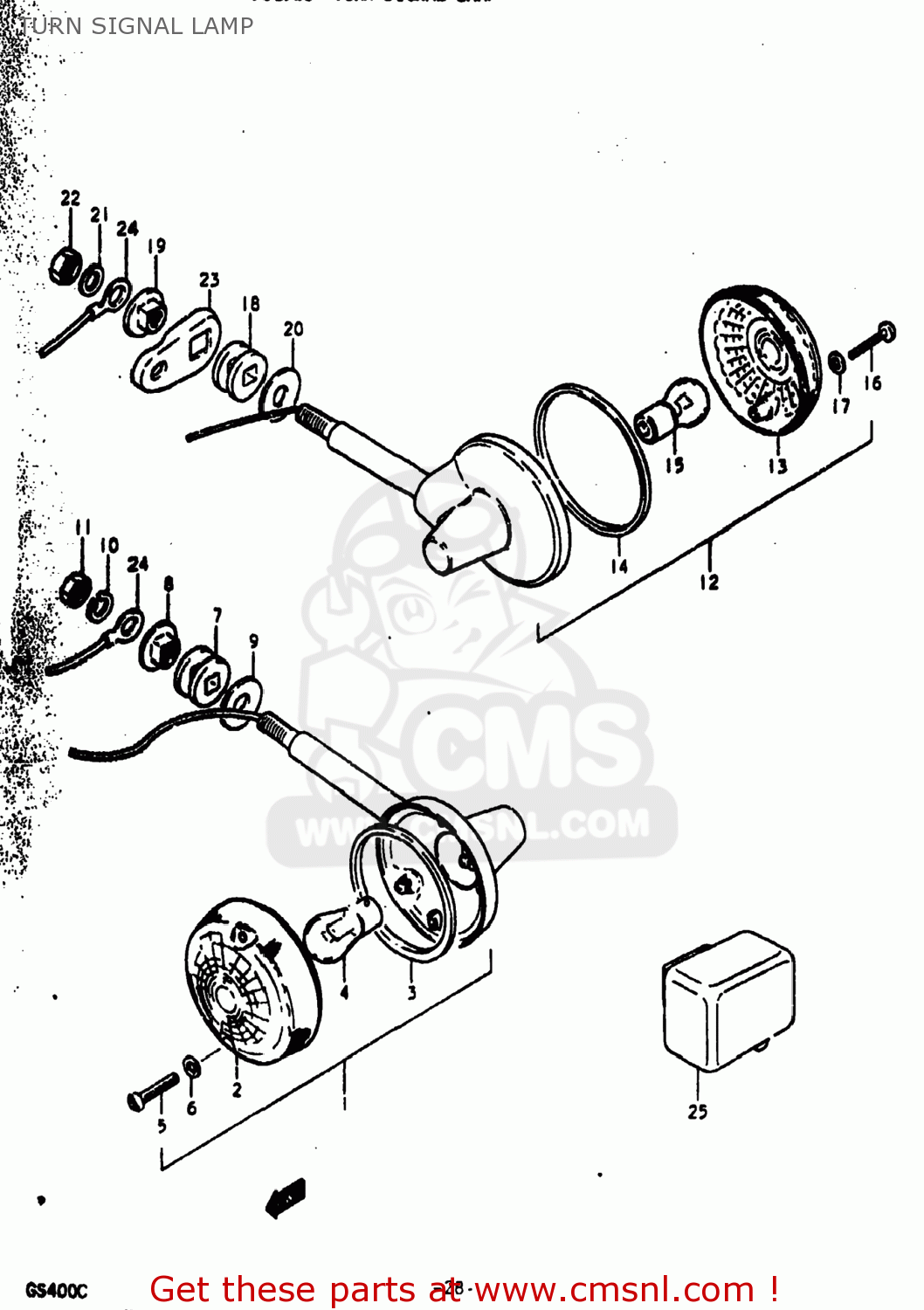

Turn signal lamp diagram GS400 1978 (C) USA (E03)
TURN SIGNAL LAMP GS400 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3560144030
ref: 1
35601-39370-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 78.50
2
3561228620
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0947112006
ref: 4
BULB(12V23W,STANLEY,A4577A)
€ 4.00
5
3562347610
ref: 5
03211-04207
SCREW
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
€ 2.00
7
3569032200
ref: 7
CUSHION
€ 38.50
8
3569532200
ref: 8
SPACER,RR TURNSIGNAL LAMP
€ 42.00
9
3562944000
ref: 9
09160-10062
WASHER
€ 4.50
10
0832121108
ref: 10
08321-01107
LOCK WASHER
€ 2.00
11
0831012108
ref: 11
08310-00107
NUT
€ 2.50
12
3560344030
ref: 12
35603-32620-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 66.50
13
3561228620
ref: 13
LENS
€ 10.50
14
3561328620
ref: 14
GASKET (NAS)
€ 7.00
15
0947112006
ref: 15
BULB(12V23W,STANLEY,A4577A)
€ 4.00
16
3562347610
ref: 16
03211-04207
SCREW
€ 1.50
17
3562743010
ref: 17
GASKET (NAS)
€ 2.00
18
3569032200
ref: 18
CUSHION
€ 38.50
19
3569532200
ref: 19
SPACER,RR TURNSIGNAL LAMP
€ 42.00
20
3562944000
ref: 20
09160-10062
WASHER
€ 4.50
21
0832121108
ref: 21
08321-01107
LOCK WASHER
€ 2.00
22
0831012108
ref: 22
08310-00107
NUT
€ 2.50
23
4158032200
ref: 23
41580-32201
BRACKET,TURN SIGNAL
€ 41.50
24
3686245000
ref: 24
36660-33000
WIRE
€ 5.00
25
3861045030
ref: 25
38610-31X50
RELAY,TURN SIGNAL
€ 54.50
