SPEEDOMETER - TACHOMETER
GS400 1978 (C) USA (E03)

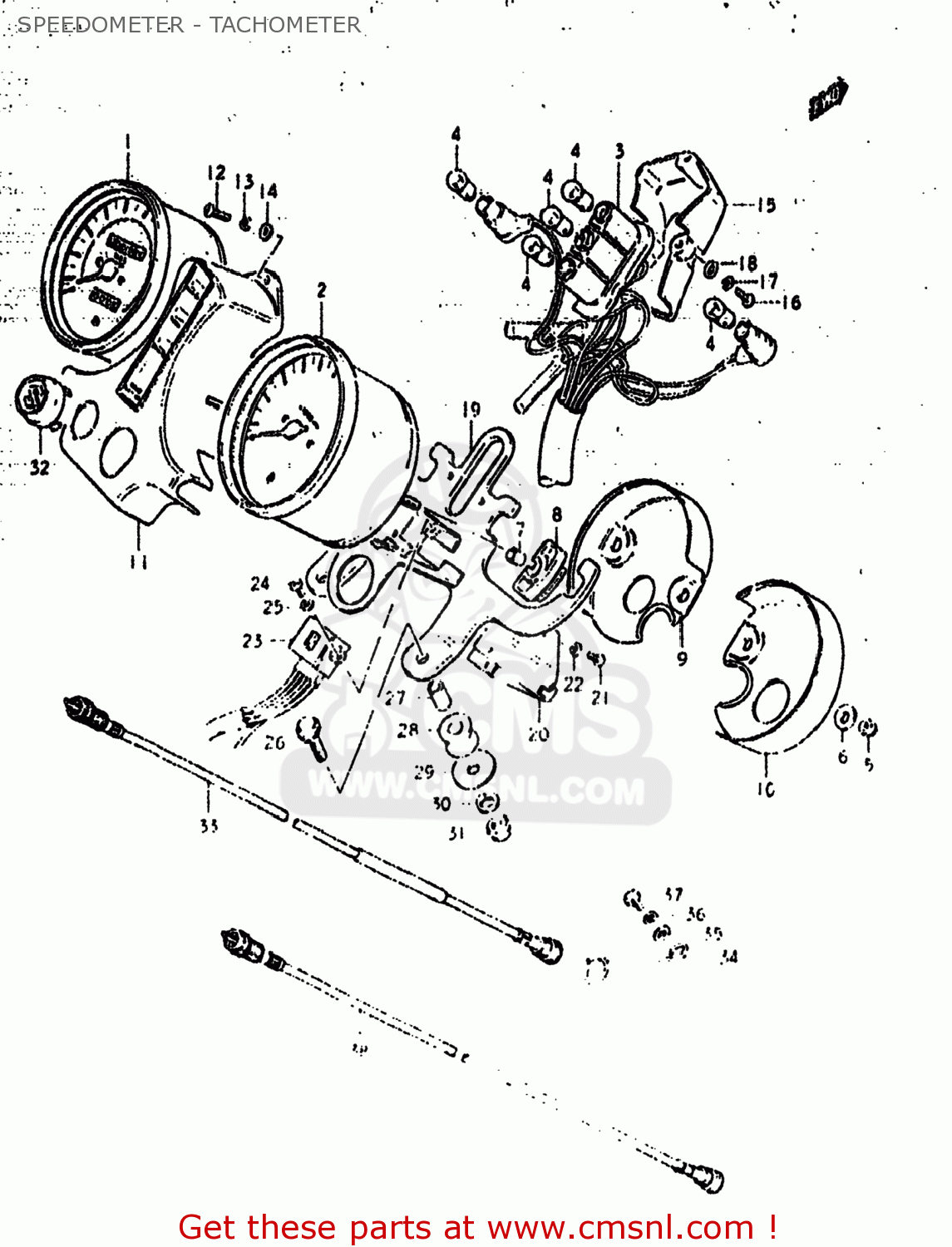

Speedometer - tachometer diagram GS400 1978 (C) USA (E03)
SPEEDOMETER - TACHOMETER GS400 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
3410044010
ref: 0
34100-44016
SPEEDOMETER ASSEMBLY
€ 143.50
1
3411044010
ref: 1
SPEEDOMETER ASSEMBLY
€ 125.00
2
3421044612
ref: 2
TACHOMETER
€ 165.00
3
3417344601
ref: 3
SOCKET,METER
€ 44.00
4
0947112001
ref: 4
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
5
3418545060
ref: 5
08313-1005A
NUT
€ 1.50
6
0916005017
ref: 6
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
7
3497244021
ref: 7
34972-44022
SPACER,METER
€ 5.50
8
3495544020
ref: 8
CUSHION,METER
€ 4.00
9
3496136321
ref: 9
34961-36322
COVER,METER,UNDER
€ 19.50
10
3496236321
ref: 10
34962-36322
PLATE,TACHOMETER UNDER
€ 36.00
11
3498044020
ref: 11
CASE,PILOT BULB
€ 26.50
12
0912504011
ref: 12
SCREW(4X16)
€ 2.00
13
3499744020
ref: 13
WASHER,PILOT UNDER CASE
€ 0.00
14
0916004006
ref: 14
08322-0104A
WASHER
€ 5.00
15
3498144020
ref: 15
COVER
€ 20.50
16
0912504011
ref: 16
SCREW(4X16)
€ 2.00
17
3499744020
ref: 17
WASHER,PILOT UNDER CASE
€ 0.00
18
0916004006
ref: 18
08322-0104A
WASHER
€ 5.00
19
3495044021
ref: 19
BRACKET,COMBINATION METER
€ 27.00
20
3495444021
ref: 20
HOLDER,COUPLER
€ 0.00
21
0211104067
ref: 21
02112-0406B
SCREW
€ 2.00
22
0832121048
ref: 22
08321-0104A
LOCK WASHER
€ 2.00
23
3645044020
ref: 23
INDICATOR ASSEMBLY,GEAR POSITION
€ 110.00
24
0211103067
ref: 24
02112-0306B
SCREW
€ 2.00
25
0832121038
ref: 25
09162-03001
LOCK WASHER
€ 1.50
26
0152406307
ref: 26
01550-06307
BOLT
€ 2.00
27
0918006040
ref: 27
09180-06251
SPACER (6.1X8X15.5)
€ 2.00
28
3495615100
ref: 28
CUSHION
€ 4.00
29
0916006007
ref: 29
09160-06084
WASHER
€ 2.00
30
0832121068
ref: 30
08321-01067
LOCK WASHER
€ 2.50
31
0831011068
ref: 31
08310-00067
NUT
€ 2.50
32
3499531600
ref: 32
CAP,SPEED WARNER LAMP HOLE
€ 9.50
33
3491044031
ref: 33
34910-05310
CABLE ASSEMBLY,SPEEDOMETER
€ 41.00
34
3493837000
ref: 34
GUIDE,SPEEDOMETER CABLE
€ 14.50
35
0832211068
ref: 35
08322-0106B
WASHER 6MM
€ 2.00
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
37
0110706168
ref: 37
01500-06167
BOLT, UPPER
€ 3.00
38
3494044032
ref: 38
34940-37311
CABLE ASSEMBLY,TACHOMETER
€ 36.50
