CAM CHAIN
GS450L 1982 (Z) USA (E03)

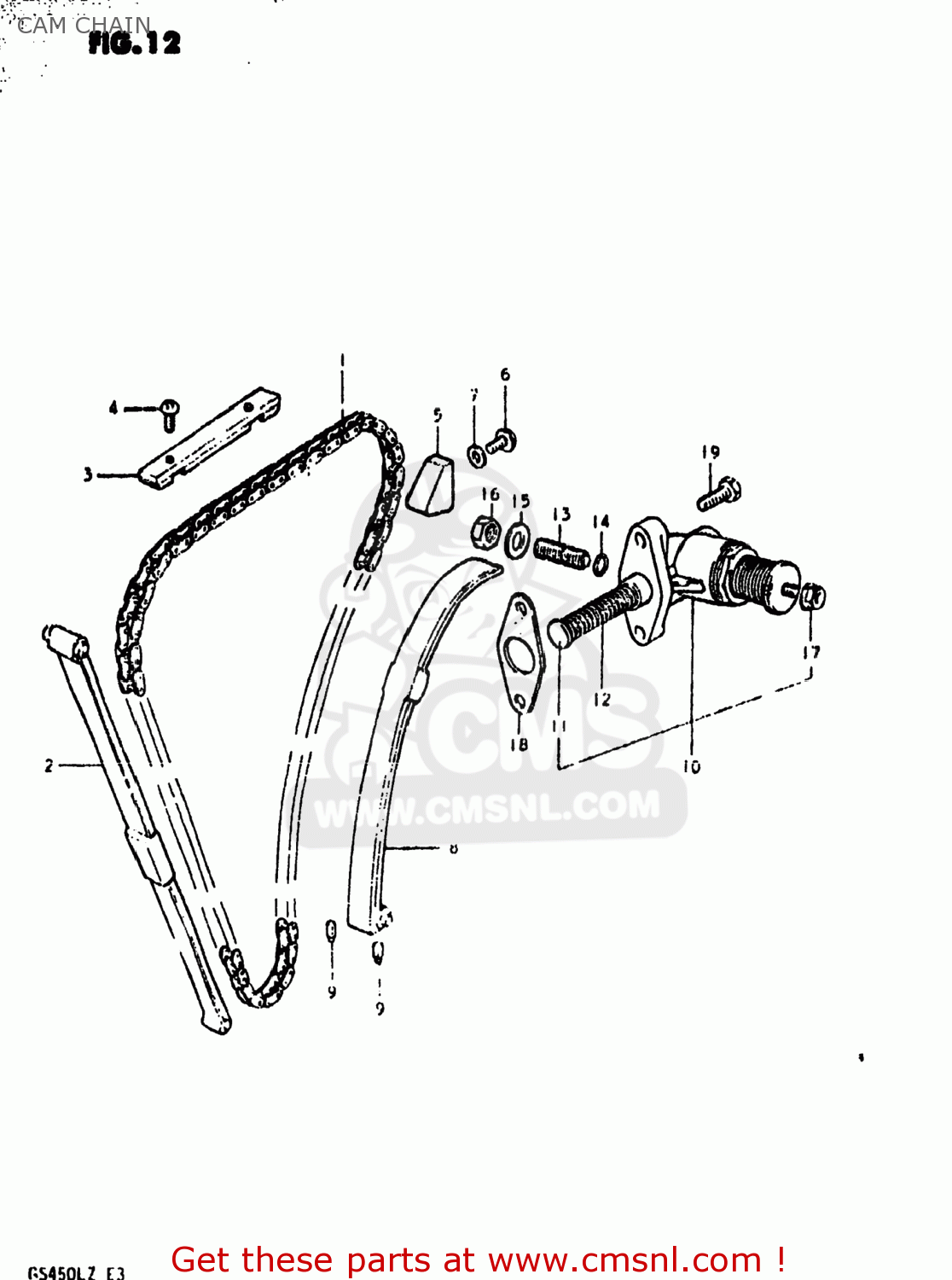

Cam chain diagram GS450L 1982 (Z) USA (E03)
CAM CHAIN GS450L 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276045040
ref: 1
CHAIN,CAMSHAFT DRIVE(120L)
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
€ 33.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
€ 89.50
4
0211205128
ref: 4
02112-05127
SCREW
€ 2.50
5
1279145040
ref: 5
GUIDE,CAM CHAIN
€ 8.50
6
0151706128
ref: 6
01550-06127
BOLT
€ 2.50
7
0916806009
ref: 7
09168-06023
GASKET (NAS)
€ 2.00
8
1281044150
ref: 8
TENSIONER,CAM CHAIN
€ 64.00
9
1281444100
ref: 9
12814-44101
CUSHION,CAM CHAIN TENSIONER
€ 8.50
10
1283047001
ref: 10
12830-0930V
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
11
1283347001
ref: 11
ROD,PUSH
€ 25.00
12
0944012017
ref: 12
SPRING
€ 2.50
13
1283845001
ref: 13
SCREW
€ 6.00
14
0928006003
ref: 14
09280-06005
O-RING
€ 2.50
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
0831012088
ref: 16
08310-00087
NUT
€ 2.00
17-1
0915906017
ref: 17-1
08319-31067
NUT
€ 2.50
17-2
0831616068
ref: 17-2
08319-31067
NUT
€ 2.50
18
1283747000
ref: 18
12837-47010
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
19
0912806024
ref: 19
09103-06212
SCREW (6X25)
€ 2.50
