HEADLAMP

GS450L 1982 (Z) USA (E03)

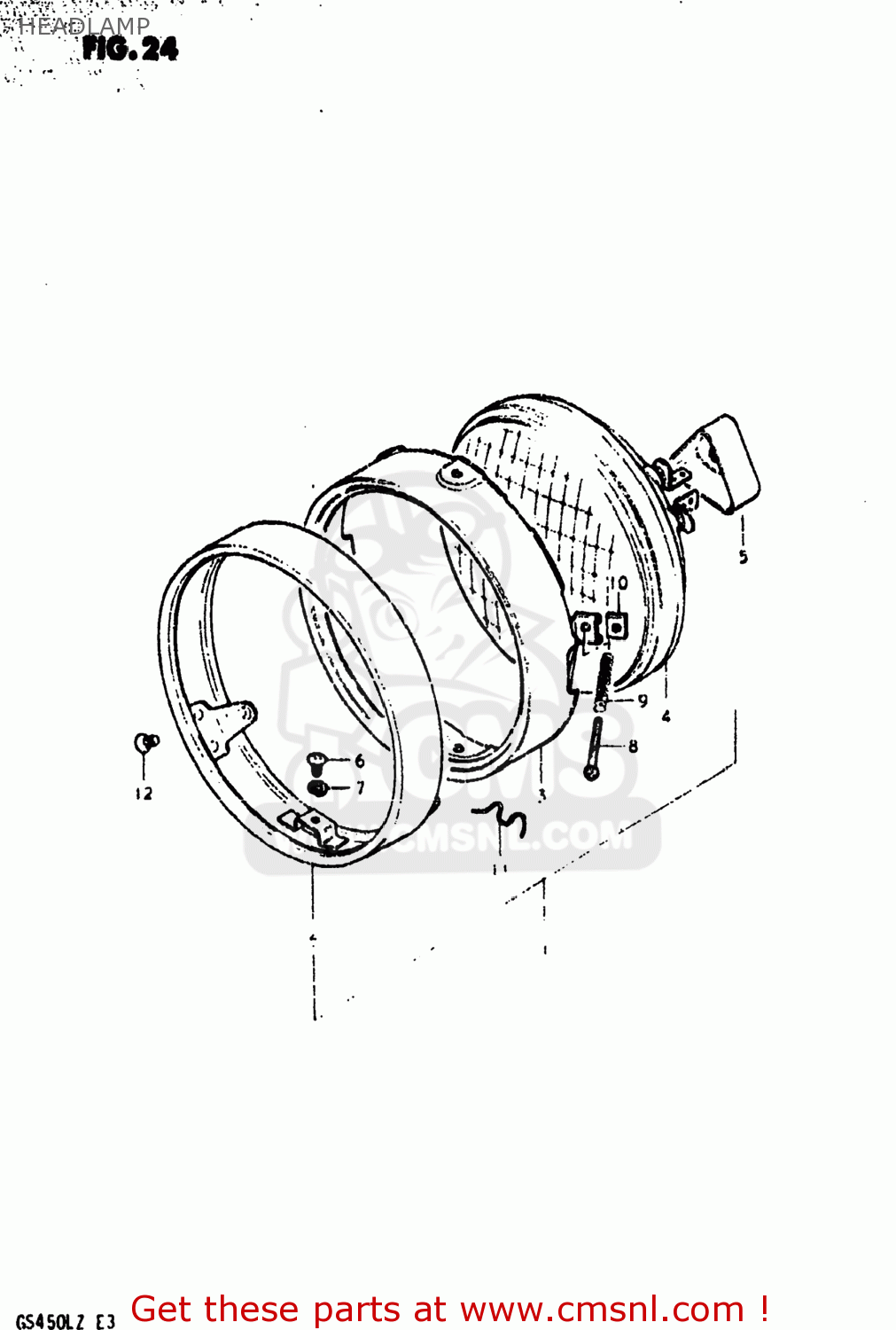

Headlamp diagram GS450L 1982 (Z) USA (E03)

HEADLAMP GS450L 1982 (Z) USA (E03)

HEADLAMP GS450L 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510044250
ref: 1
35100-44251

LAMP ASSEMBLY,HEAD

€ 124.00

2

3511144250
ref: 2

RIM

€ 34.50

3

3512729610
ref: 3

RETAINER

€ 15.50

4

3512144250
ref: 4
35100-44251

LAMP UNIT

€ 124.00

5

3517329610
ref: 5

COVER

€ 3.00

6

3513629610
ref: 6

SCREW

€ 3.00

7

0832121058
ref: 7
08321-0105A

LOCK WASHER

€ 2.00

8

3515131610
ref: 8

SCREW

€ 4.00

9

3515433630
ref: 9

SPRING

€ 2.50

10

3515215611
ref: 10

NUT

€ 3.50

11

3512829611
ref: 11

SPRING,HEAD LAMP UNIT

€ 3.50

12

0912705013
ref: 12

SCREW(5X12)

€ 2.50
