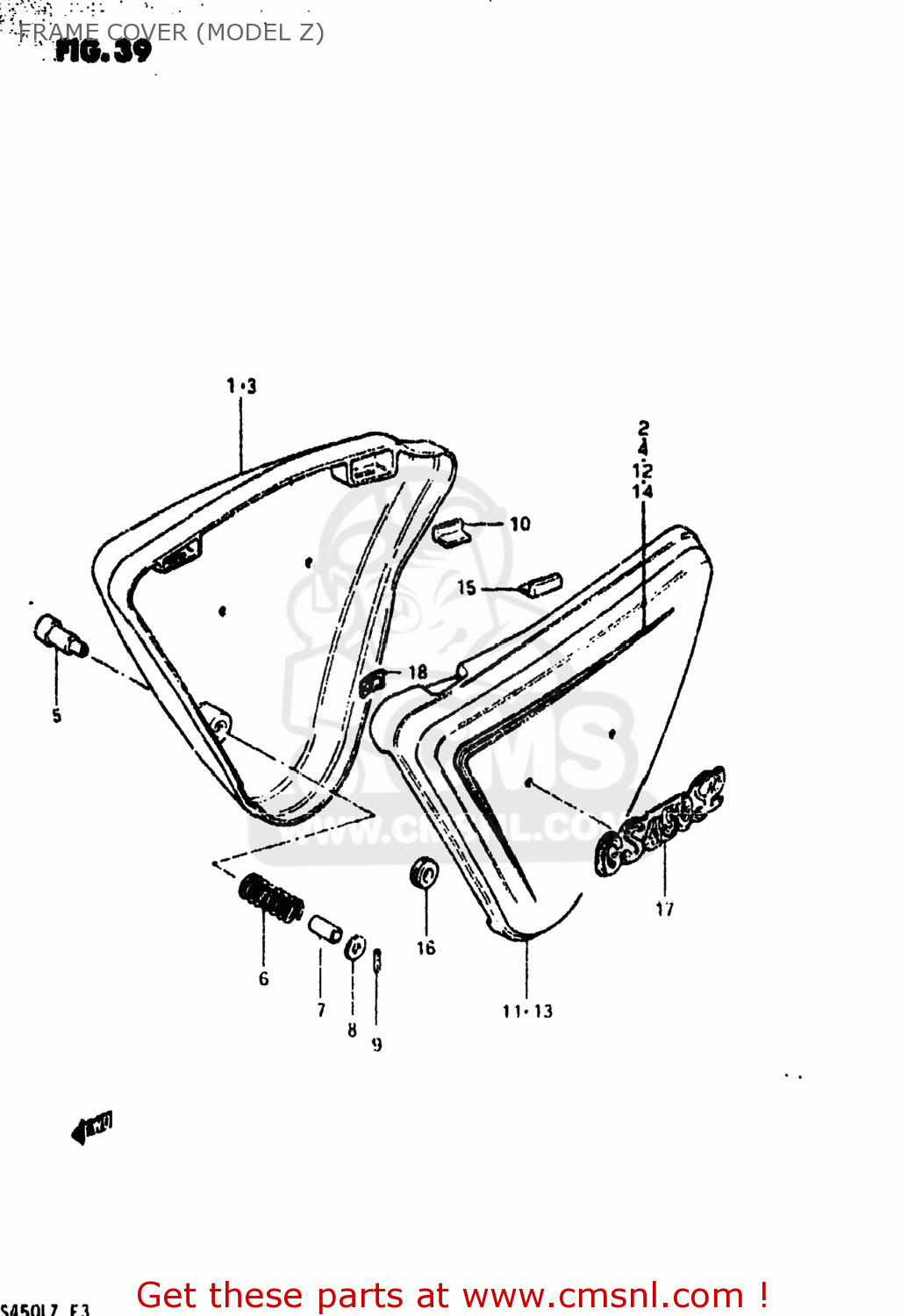

FRAME COVER (MODEL Z)

ref

part #

description

quantity

1

4711144210019
ref: 1
47111-44210

COVER,FRAME,RIGHT

€ 58.00

2

6813044230998
ref: 2

TAPE SET,FRAME COVER

€ 11.50

3

471114421005L
ref: 3
47111-11400

COVER,FRAME,RIGHT

€ 52.00

4

681304423071F
ref: 4

TAPE SET,FRAME COVER,RIGHT

€ 12.50

5

4713111400
ref: 5
47130-44200

KNOB, FRAME COVER RH

€ 8.50

6

0944020009
ref: 6
09440-20009-XC0

SPRING

€ 2.50

7

0918014009
ref: 7

SPACER(14.9X17.3X13.5)

€ 5.50

8

0916006004
ref: 8
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

9

0920502011
ref: 9

PIN,SPRING(2.5X18)

€ 1.50

10

4711745000
ref: 10

CUSHION,FRAME COVER

€ 1.50

11

4721144210019
ref: 11
47211-11400

COVER,FRAME,LEFT

€ 52.00

12

6814044230998
ref: 12

TAPE SET,FRAME COVER,LEFT

€ 14.50

13

472114421005L
ref: 13
47211-11400

COVER,FRAME,LEFT

€ 52.00

14

681404423071F
ref: 14

TAPE SET,FRAME COVER,LEFT

€ 13.50

15

4711745000
ref: 15

CUSHION,FRAME COVER

€ 1.50

16

0932008018
ref: 16

CUSHION

€ 4.00

17

6813144240
ref: 17

EMBLEM,FRAME COVER

€ 25.00

18

0914803002
ref: 18

NUT

€ 3.00
