CARBURETOR
GS450L 1986 (G) USA (E03)

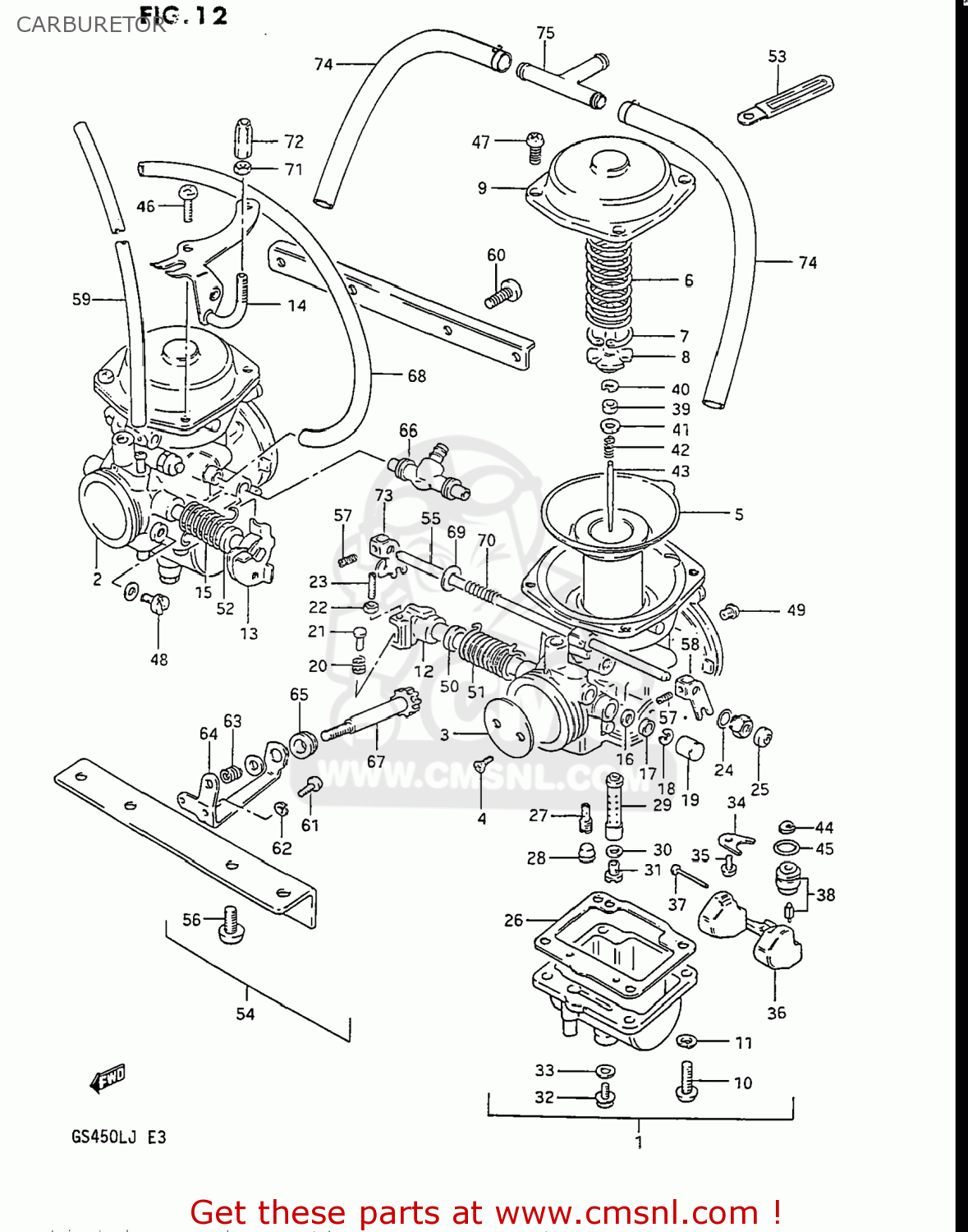

Carburetor diagram GS450L 1986 (G) USA (E03)
CARBURETOR GS450L 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320144460
ref: 1-1
CARBURETOR
€ 197.50
1-2
1320144480
ref: 1-2
CARBURETOR,LEFT
€ 181.50
1-3
1320144490
ref: 1-3
CARBURETOR ASSEMBLY
€ 168.00
2-1
1320244460
ref: 2-1
CARBURETOR ASSEMBLY,RIGHT
€ 195.50
2-2
1320244480
ref: 2-2
CARBURETOR ASSEMBLY
€ 161.50
2-3
1320244490
ref: 2-3
CARBURETOR ASSEMBLY
€ 168.00
3
1355144500
ref: 3
VALVE,THROTTLE
€ 26.00
4
1360444080
ref: 4
SCREW
€ 3.50
5
1350038310
ref: 5
DIAPHRAGM ASSY
€ 168.00
6
1350344400
ref: 6
13503-15510
SPRING
€ 7.50
7
1358144030
ref: 7
E RING
€ 6.50
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350238300
ref: 9
COVER
€ 22.00
10
0211205166
ref: 10
02112-0516A
SCREW
€ 2.00
11
0832121056
ref: 11
08321-0105A
LOCK WASHER
€ 3.00
12
1355044210
ref: 12
SHAFT ASSEMBLY
€ 0.00
13
1355044220
ref: 13
SHAFT,THROTTLE
€ 0.00
14
1362744460
ref: 14
BRACKET,THROTTLE CABLE
€ 11.50
15
1357344210
ref: 15
SPRING
€ 0.00
16
1365151010
ref: 16
SEAL
€ 4.00
17
1355747070
ref: 17
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
18
1361744080
ref: 18
E RING
€ 3.50
19
1357847070
ref: 19
CAP
€ 5.50
20
1326844110
ref: 20
SPRING,THROTTLE SCREW
€ 0.00
21
1356344110
ref: 21
PIN,THROTTLE LEVER
€ 0.00
22
1360747070
ref: 22
NUT
€ 4.00
23
1360547080
ref: 23
SCREW
€ 7.00
24
1327847090
ref: 24
O RING
€ 2.00
25
1368231210
ref: 25
CAP,STARTER VALVE
€ 5.00
26
1325144080
ref: 26
13251-44080-H17
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
27
0949245016
ref: 27
JET,PILOT(45)
€ 12.00
28
1335744080
ref: 28
PLUG,NEEDLE JET
€ 4.50
29
0949400379
ref: 29
JET,NEEDLE
€ 9.00
30
1333244080
ref: 30
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
31-1
0949123011
ref: 31-1
JET,MAIN(115)
€ 10.50
31-2
0949124016
ref: 31-2
JET,MAIN(120)
€ 11.50
32
1324744080
ref: 32
PLUG,DRAIN
€ 9.50
33
1324644080
ref: 33
GASKET (NAS)
€ 3.50
34
1337311400
ref: 34
PLATE,NEEDLE VALVE FITING
€ 7.00
35
0211204066
ref: 35
02112-0406B
SCREW
€ 2.00
36
1325044080
ref: 36
FLOAT
€ 31.00
37
1325492311
ref: 37
PIN,FLOAT
€ 2.00
38
1337011400
ref: 38
13370-44500
VALVE ASSEMBLY,NEEDLE
€ 40.50
39
1338747010
ref: 39
RING
€ 7.50
40
1339410010
ref: 40
CLIP
€ 4.50
41
1325420010
ref: 41
PIN,FLOAT
€ 3.00
42
1338847010
ref: 42
SPRING
€ 7.00
43-1
1338344460
ref: 43-1
NEEDLE JET
€ 9.50
43-2
1338344400
ref: 43-2
NEEDLE JET
€ 9.00
44
1337665010
ref: 44
13376-19F00
FILTER
€ 6.50
45
1337444080
ref: 45
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
46
0211205106
ref: 46
02112-0510A
SCREW 5X10
€ 2.00
47
0211205086
ref: 47
02112-0508A
SCREW
€ 2.00
48
1360573000
ref: 48
SCREW
€ 10.50
49-1
0949329001
ref: 49-1
JET,AIR
€ 7.50
49-2
0949327001
ref: 49-2
JET,AIR(135)
€ 11.00
50
1338744200
ref: 50
SPACER,THROTTLE SHAFT
€ 0.00
51
1357344200
ref: 51
SPRING
€ 0.00
52
1338744210
ref: 52
SPACER,THROTTLE SHAFT
€ 0.00
53
0940406401
ref: 53
09404-06432
CLAMP L:35
€ 2.50
54
1321044460
ref: 54
FLANGE ASSEMBLY,CARBURETOR
€ 185.00
55
1341044460
ref: 55
SHAFT,STARTER
€ 19.00
56
0211206126
ref: 56
02112-0612A
SCREW
€ 1.50
57
1360547070
ref: 57
SCREW
€ 5.50
58
1342244080
ref: 58
LEVER
€ 10.00
59
1368335420
ref: 59
09355-45855-600
HOSE 4.5X8X600
€ 14.00
60
0211205126
ref: 60
02112-0512A
SCREW 5X12
€ 1.50
61
0211205086
ref: 61
02112-0508A
SCREW
€ 2.00
62
0832121056
ref: 62
08321-0105A
LOCK WASHER
€ 3.00
63
1327144220
ref: 63
13268-37420
SPRING,THROTTLE ADJUST
€ 3.50
64
1362144210
ref: 64
13627-44120
BRACKET,THROTTLE ADJUST
€ 0.00
65
1368144110
ref: 65
BUSHING,THROTTLE ADJUSTER
€ 13.00
66
1368511400
ref: 66
NIPPLE,CARBURETOR
€ 19.50
67
1326747070
ref: 67
SCREW
€ 21.00
68
1368422A00
ref: 68
44420-44AR0
HOSE
€ 13.00
69
1342744460
ref: 69
WASHER,STARTER PLUNGER
€ 0.00
70
1343744500
ref: 70
SPRING,STARTER
€ 0.00
71
1366103010
ref: 71
NUT
€ 3.50
72
1357798011
ref: 72
ADJUSTER
€ 0.00
73
1342244500
ref: 73
LEVER,STARTER
€ 16.00
74
1368344490
ref: 74
09354-53103-600
HOSE
€ 19.50
75
0936706002
ref: 75
JOINT,3 WAY
€ 3.00
