SIGNAL GENERATOR
GS450L 1986 (G) USA (E03)

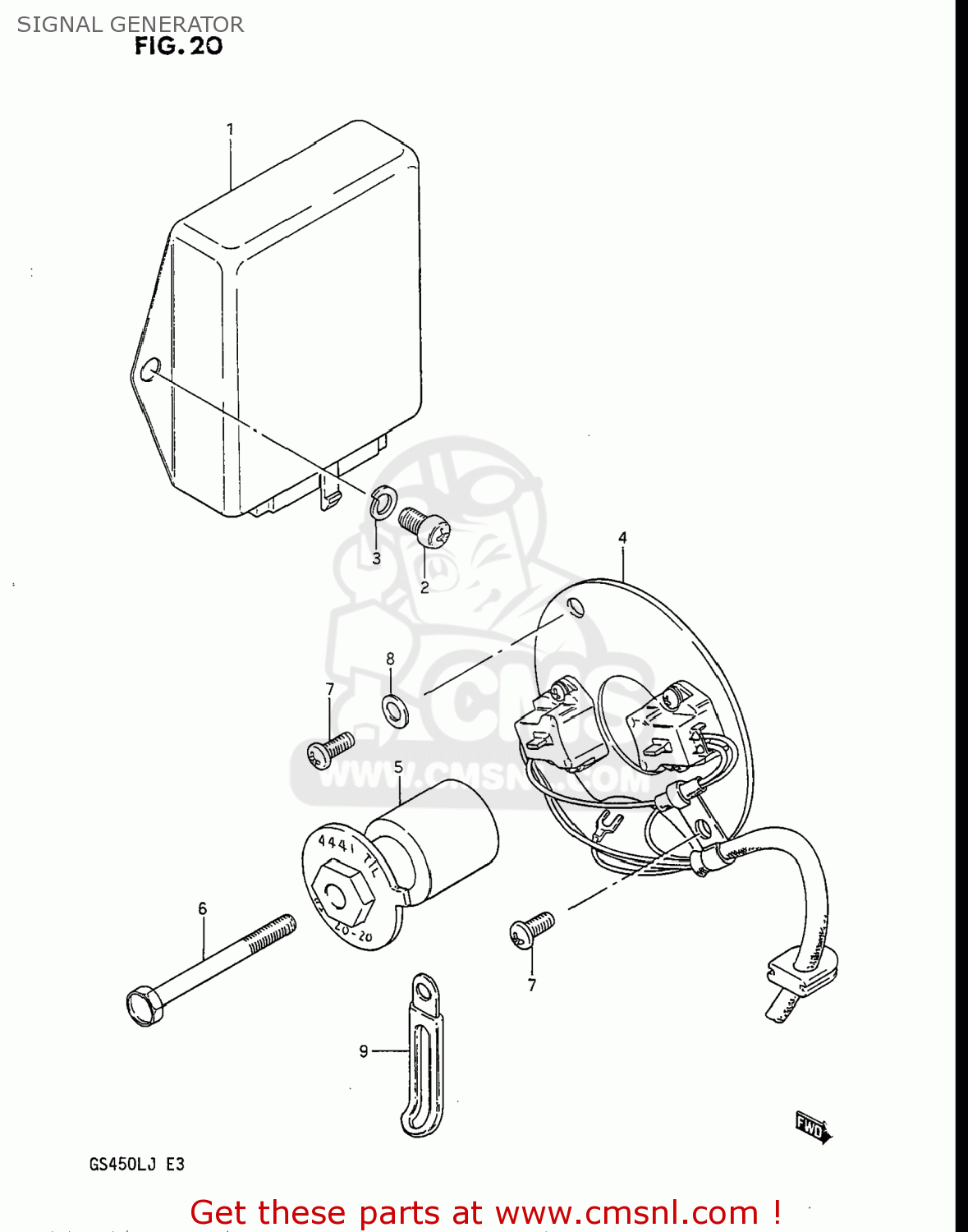

Signal generator diagram GS450L 1986 (G) USA (E03)
SIGNAL GENERATOR GS450L 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3290044420
ref: 1
IGNITOR UNIT
€ 483.00
2
0211206108
ref: 2
02112-06107
SCREW
€ 1.50
3
0832121067
ref: 3
08321-01067
WASHER,LOCK
€ 2.50
4
3311044420
ref: 4
SIGNAL GENERATOR ASSY
€ 292.50
5
3312044420
ref: 5
ROTOR,SIGNAL
€ 67.50
6
0110706608
ref: 6
09103-06064
BOLT 6X60
€ 2.50
7
0912505024
ref: 7
SCREW(5X12)
€ 2.00
8
0916005028
ref: 8
08322-01057
WASHER(5.5X10X0.8)
€ 2.00
9
0940406401
ref: 9
09404-06432
CLAMP L:35
€ 2.50
