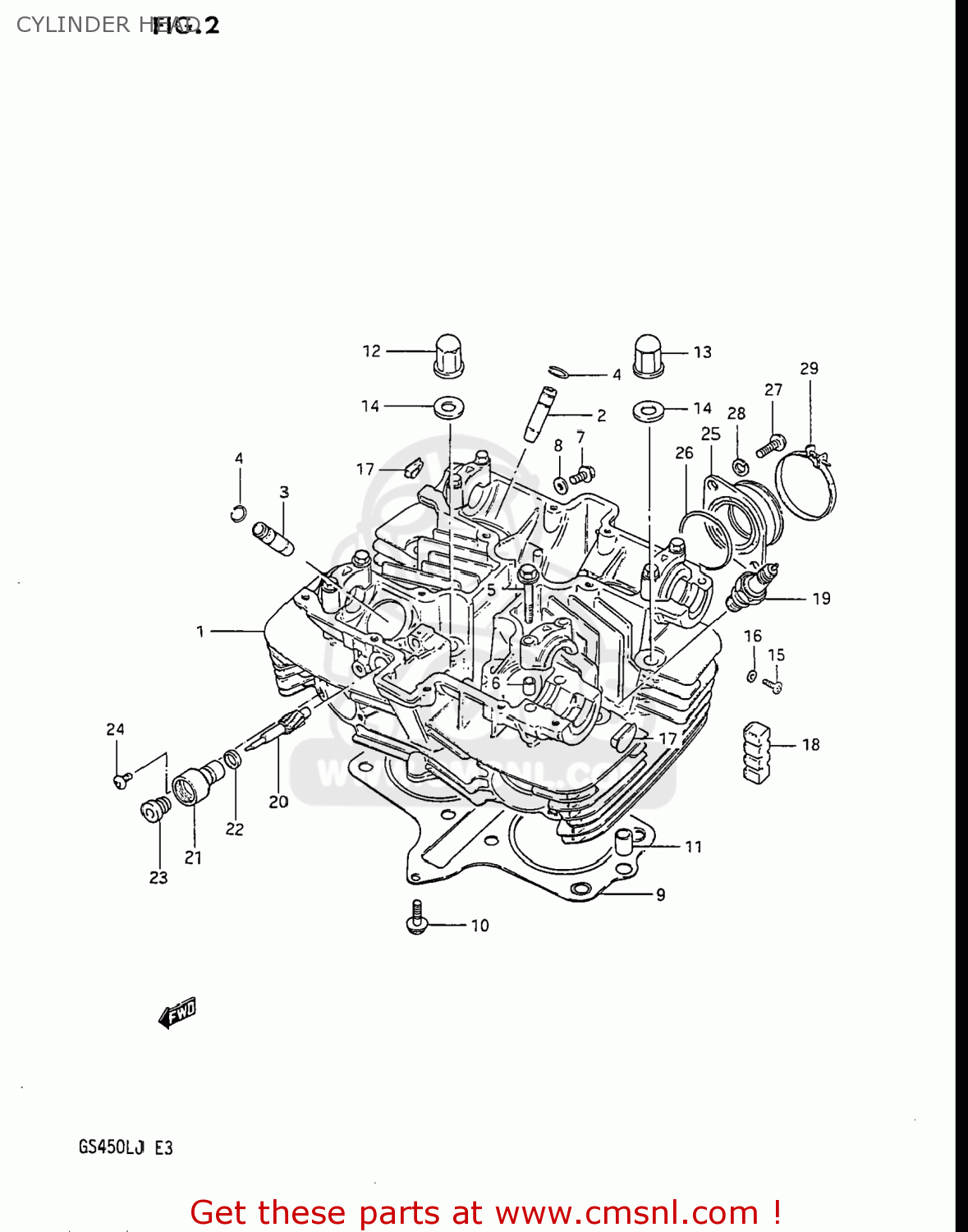

CYLINDER HEAD

ref

part #

description

quantity

1

1110044120
ref: 1

HEAD SET,CYLINDER

€ 0.00

2

1111545740
ref: 2

GUIDE,INTAKE VALVE

€ 25.50

3

1111645740
ref: 3

GUIDE,EXHAUST VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0151706128
ref: 7
01550-06127

BOLT

€ 2.50

8

0916806015
ref: 8
09168-06023

WASHER

€ 2.00

9

1114144110
ref: 9
11141-44110-H17

GASKET,CYLINDER HEAD (MCA)

€ 117.00

10

0151706305
ref: 10
01550-0630A

BOLT 6X30

€ 2.50

11

0421111189
ref: 11

PIN

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0915910033
ref: 13
09159-10026

NUT

€ 6.00

14

0916810017
ref: 14

GASKET(10.5X22X2) (NAS)

€ 3.50

15

0211205088
ref: 15
02112-05087

SCREW

€ 2.00

16

0916805010
ref: 16

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

17

0924123002
ref: 17

PLUG

€ 8.50

18

1125146150
ref: 18

PAD,CYLINDER

€ 7.00

19-1

0948200091
ref: 19-1

PLUG,SPARK

€ 3.00

19-2

0948200196
ref: 19-2
09482-00247-111

SPARK PLUG W24ES-U

€ 3.50

20

2643145002
ref: 20

GEAR,TACHOMETER DRIVEN

€ 43.00

21

2644149000
ref: 21

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

22

2645145000A
ref: 22

SEAL,TACHOMETER DRIVEN

€ 4.50

23

0928905002
ref: 23

SEAL,OIL(5X12X8)

€ 11.00

24

0912805101
ref: 24

SCREW(5X12)

€ 1.50

25

1311044100
ref: 25

PIPE,INTAKE

€ 30.00

26

0928040003
ref: 26
09280-40010

O-RING (D:2.4 ID:39.7)

€ 3.50

27

0211206208
ref: 27
02112-06207

SCREW

€ 2.00

28

0832121067
ref: 28
08321-01067

WASHER,LOCK

€ 2.50

29

0940254303
ref: 29

CLAMP

€ 4.00
