GS450S 1984 (E) (E06 E15 E34 E39)

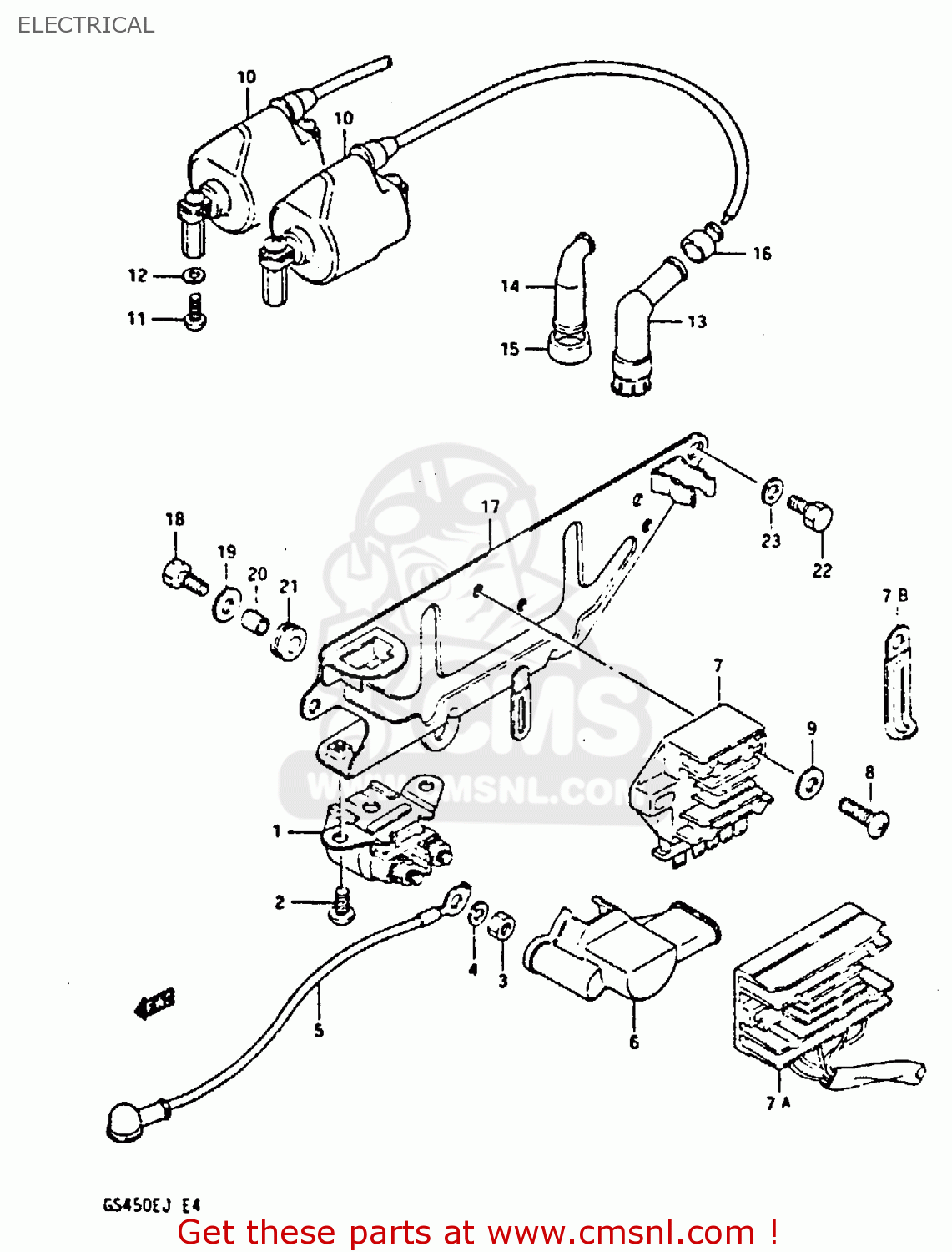

Electrical diagram GS450S 1984 (E) (E06 E15 E34 E39)
ELECTRICAL GS450S 1984 (E) (E06 E15 E34 E39)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2
0211206106
ref: 2
SCREW
€ 1.50
3
0831011066
ref: 3
NUT
€ 2.00
4
0832121066
ref: 4
WASHER,LOCK
€ 2.00
5
3385044520
ref: 5
WIRE,STARTER MOTOR LEAD
€ 30.00
6
3186144500
ref: 6
CAP,STARTER RELAY
€ 6.50
7
3280044130
ref: 7
MODEL E/F/G/H
RECTIFIER ASSEMBLY
€ 235.00
7A
3280035B00
ref: 7A
MODEL J
RECTIFIER ASSEMBLY
€ 380.50
7B
0940406402
ref: 7B
MODEL J
CLAMP
€ 2.50
8
0211206208
ref: 8
SCREW
€ 2.00
9
0832221067
ref: 9
WASHER
€ 2.00
10
3341044510
ref: 10
FROM 33410-44410
COIL ASSEMBLY,IGNITION
€ 146.50
11
0211205107
ref: 11
SCREW
€ 2.00
12
0832121057
ref: 12
LOCK WASHER
€ 2.00
13
3351044600
ref: 13
CAP, SPARK PLUG (S)
€ 40.00
14
3351043010
ref: 14
E6, E34
CAP,SPARK PLUG
€ 11.50
15
3354169010
ref: 15
E6, E34
SEAL,SPARK PLUG
€ 5.00
16
3354298000
ref: 16
SEAL,SPARK PLU
€ 4.50
17-1
4741044401
ref: 17-1
MODEL E/F/G/H
HOLDER COMP,ELECTRONIC PARTS
€ 9.00
17-2
4741030C00
ref: 17-2
MODEL J
PLATE, PARTS HOLDER
€ 0.00
18
0110706206
ref: 18
BOLT,M6X1X20
€ 2.00
19
0916006057
ref: 19
WASHER
€ 2.00
20
0918006004
ref: 20
SPACER
€ 2.50
21
0932008001
ref: 21
CUSHION
€ 3.50
22
0110706107
ref: 22
BOLT
€ 2.00
23
0832121067
ref: 23
WASHER,LOCK
€ 2.50
