GENERATOR

GS450S 1984 (E) (E06 E15 E34 E39)

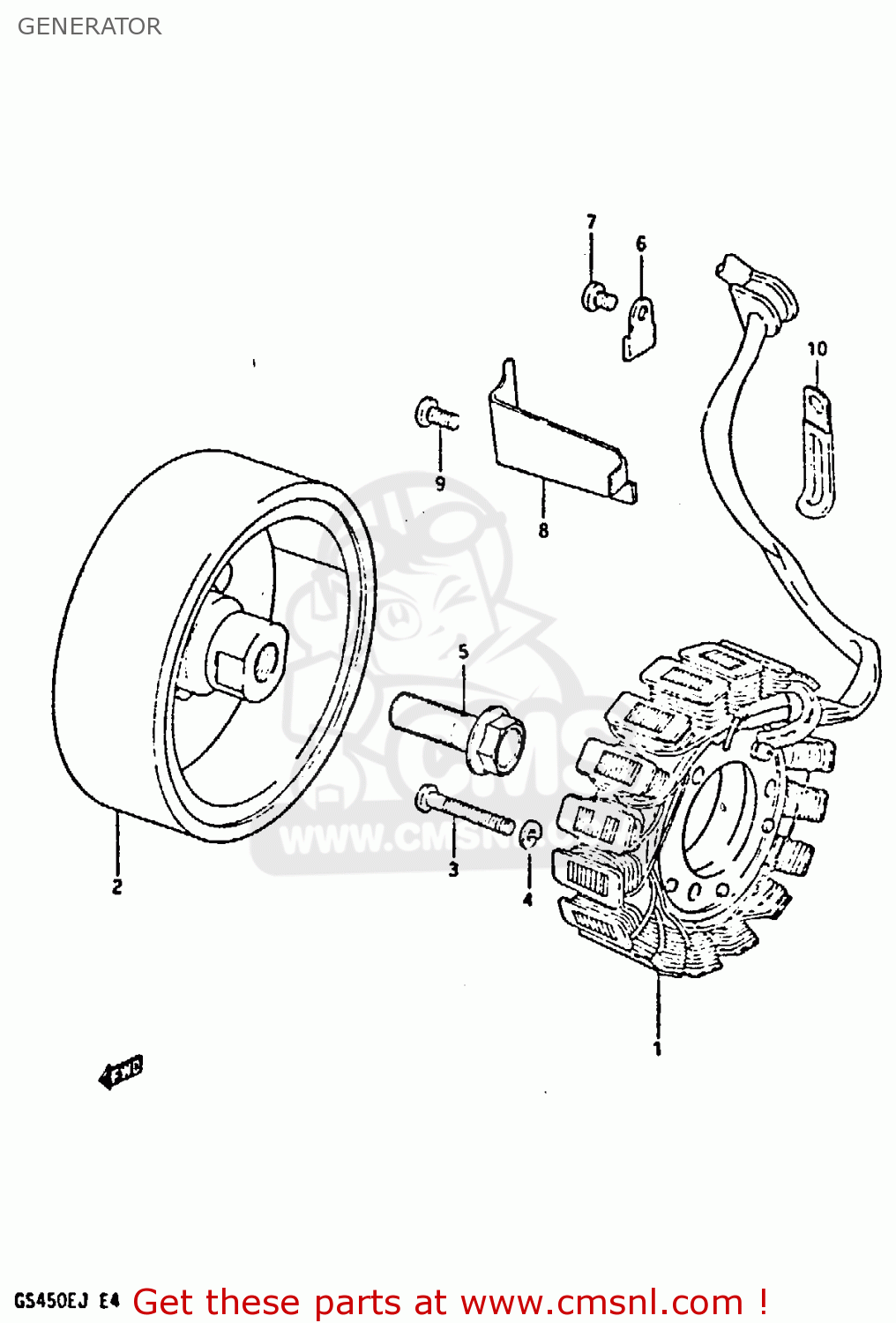

Generator diagram GS450S 1984 (E) (E06 E15 E34 E39)

GENERATOR GS450S 1984 (E) (E06 E15 E34 E39)

GENERATOR GS450S 1984 (E) (E06 E15 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3140147030
ref: 1

STARTER ASSY

€ 371.00

2

3140247031
ref: 2

ROTOR ASSEMBLY

€ 385.00

3

0211205308
ref: 3

SCREW

€ 1.50

4

0832121057
ref: 4

LOCK WASHER

€ 2.00

5

0910312004
ref: 5

BOLT(12X40)

€ 3.00

6

3149745000
ref: 6

CLAMP,GENERATOR LEAD WIRE

€ 1.50

7

0211205088
ref: 7

SCREW

€ 2.00

8

3149845000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 2.00

9

0211206108
ref: 9

SCREW

€ 1.50

10

0940406401
ref: 10

CLAMP L:35

€ 2.50
