HEADLAMP (E2, E75)

GS450S 1984 (E) (E06 E15 E34 E39)

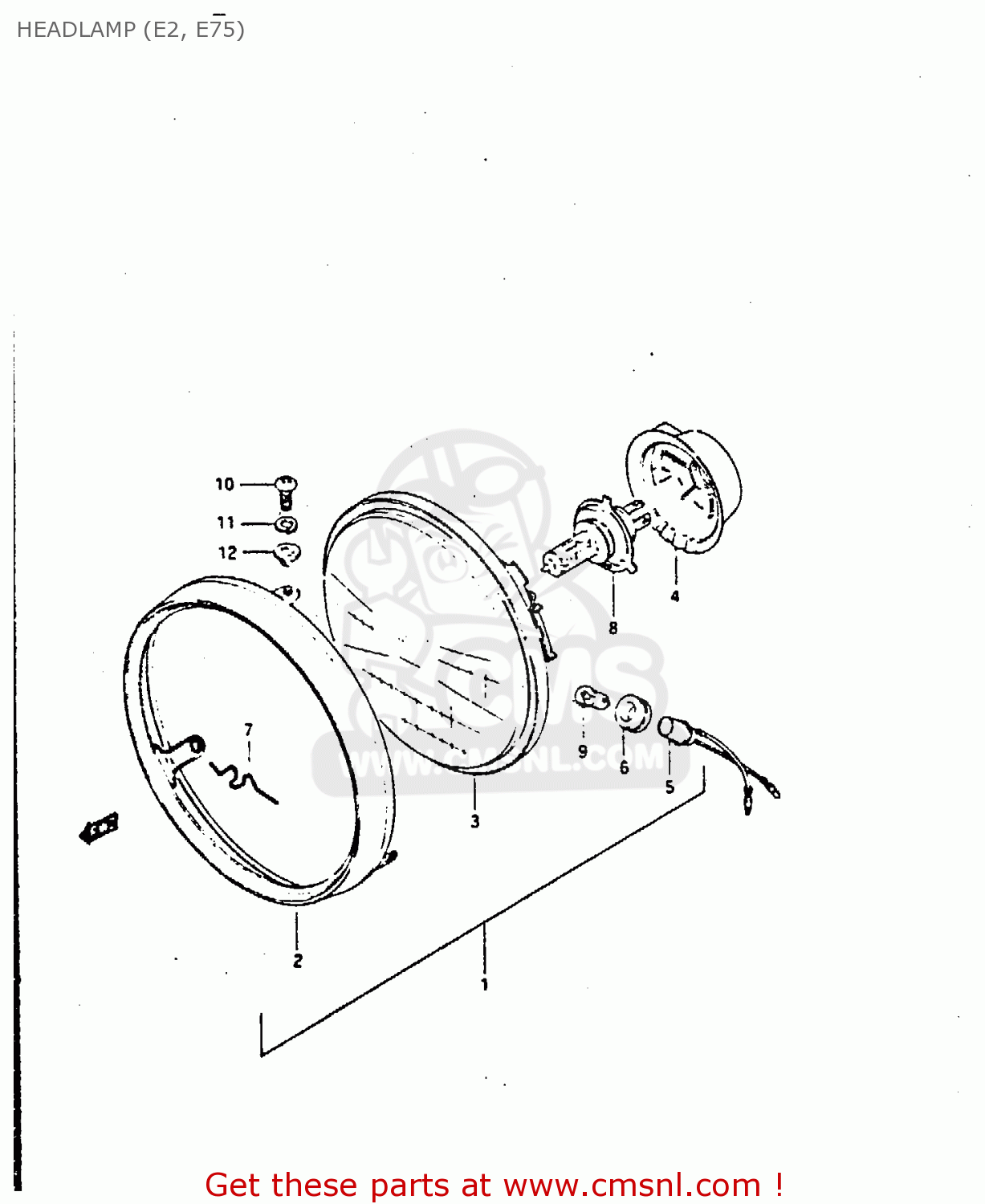

Headlamp (e2, e75) diagram GS450S 1984 (E) (E06 E15 E34 E39)

HEADLAMP (E2, E75) GS450S 1984 (E) (E06 E15 E34 E39)

HEADLAMP (E2, E75) GS450S 1984 (E) (E06 E15 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

3510033200999
ref: 1

HEADLAMP ASSY

€ 234.00

2

3511130520
ref: 2

RIM

€ 48.50

3

3512133200
ref: 3

LAMP UNIT

€ 88.50

4

3517345200
ref: 4

COVER,SOCKET

€ 14.00

5

3611849320
ref: 5

SOCKET

€ 12.00

6

3611622630
ref: 6

JOINT,RUBBER

€ 5.00

7

3512827221
ref: 7

SPRING

€ 2.50

8

0947112060
ref: 8

BULB(12V60/55W,H4)

€ 8.00

9

0947112001
ref: 9

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

10

0912505022
ref: 10

SCREW

€ 3.50

11

0916205003
ref: 11

WASHER,LOCK

€ 2.00

12

0916906021
ref: 12

WASHER

€ 2.50
