CHAIN CASE - SHOCK ABSORBER
GS450SX 1980 (T) USA (E03)

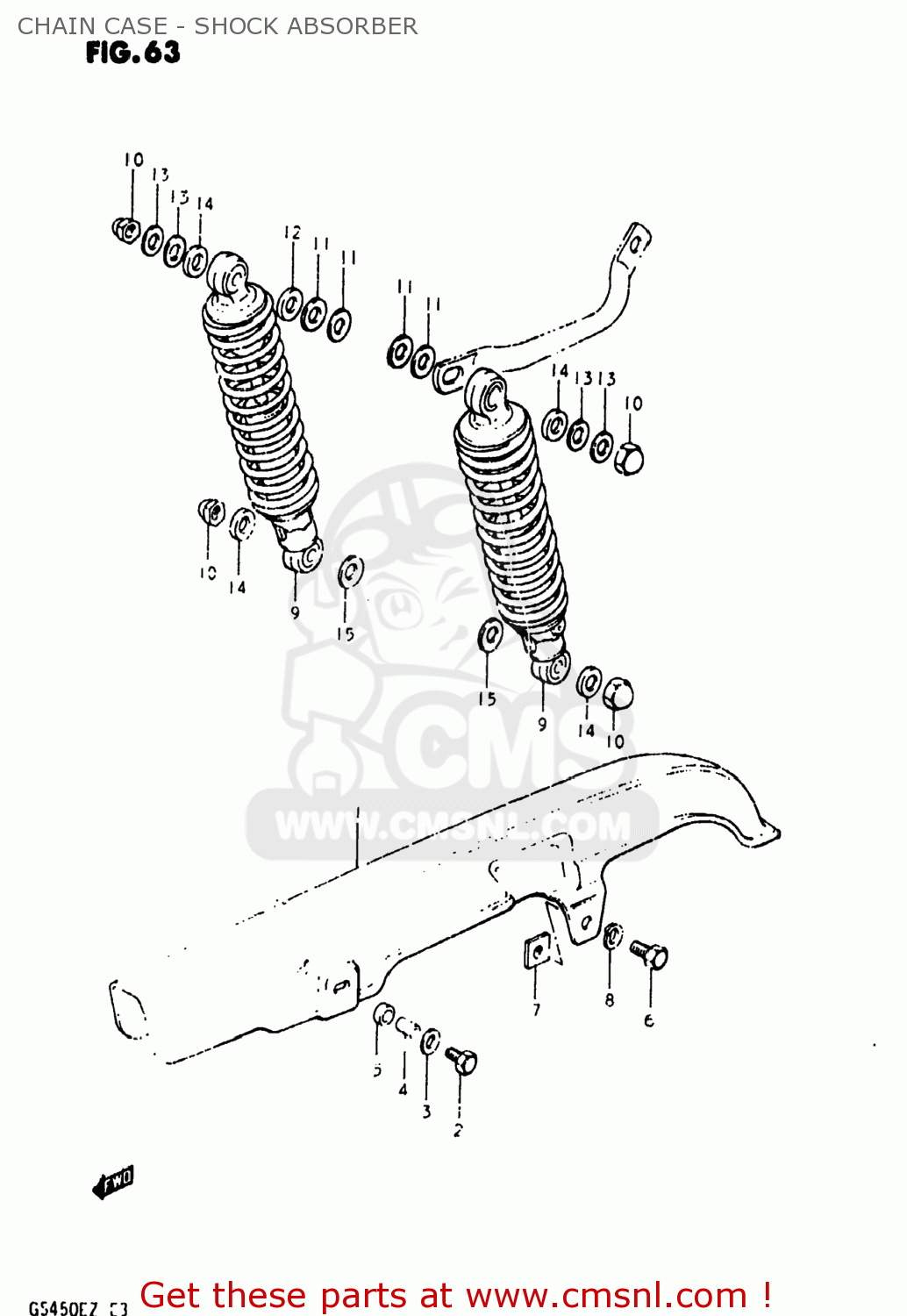

Chain case - shock absorber diagram GS450SX 1980 (T) USA (E03)
CHAIN CASE - SHOCK ABSORBER GS450SX 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6131144100291
ref: 1-1
61311-44102
CASE,CHAIN
€ 65.50
1-2
6131144101291
ref: 1-2
61311-44102
CASE,CHAIN
€ 65.50
1-3
6131144102291
ref: 1-3
61311-44102
CASE,CHAIN
€ 65.50
2
0110706108
ref: 2
01500-06107
BOLT
€ 2.00
3
0916006056
ref: 3
WASHER(6.5X18X1)
€ 2.00
4
0918006032
ref: 4
09180-06246
SPACER (6.1X8X5.2)
€ 2.50
5
0932008005
ref: 5
09161-08006
CUSHION
€ 2.00
6
0110706168
ref: 6
01500-06167
BOLT, UPPER
€ 3.00
7
6131643000
ref: 7
NUT,CHAIN CASE RR
€ 3.00
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9-1
6210044100
ref: 9-1
62100-44411
ABSORBER ASSEMBLY,REAR SHOCK
€ 197.50
9-2
6210044150
ref: 9-2
ABSORBER ASSEMBLY,REAR SHOCK
€ 75.00
10
0831311108
ref: 10
08313-10107
NUT, LOWER LH
€ 2.50
11
0832211128
ref: 11
08322-01127
WASHER
€ 2.00
12
0916012012
ref: 12
09160-12082
WASHER (12.5X24X3.2)
€ 2.50
13
0916010001
ref: 13
09160-10093
WASHER
€ 2.00
14
0916010033
ref: 14
09160-10128-XC0
WASHER(10.5X24X3.2)
€ 2.00
15
0916012004
ref: 15
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
