RIGHT HANDLE SWITCH (GS450ET
GS450SX 1980 (T) USA (E03)

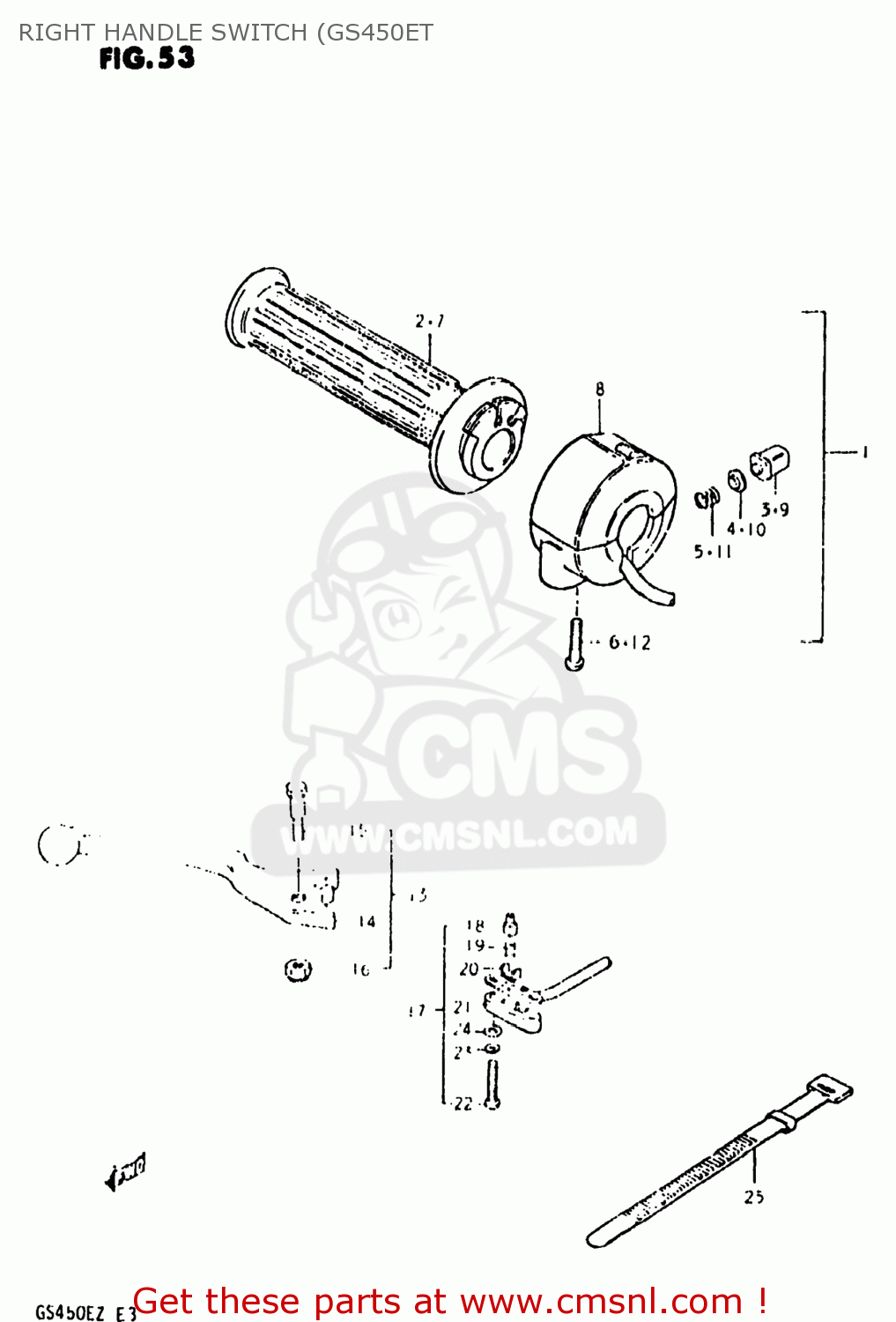

Right handle switch (gs450et diagram GS450SX 1980 (T) USA (E03)
RIGHT HANDLE SWITCH (GS450ET GS450SX 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710047010
ref: 1
57100-47500
CASE ASSEMBLY,THROTTLE
€ 85.00
2
5711044011
ref: 2
57110-49510
GRIP,THROTTLE
€ 33.00
3
5737145000
ref: 3
BUTTON,HORN
€ 3.00
4
5737245000
ref: 4
CONTACT
€ 3.00
5
5738245000
ref: 5
SPRING
€ 2.50
6
0211205258
ref: 6
02112-05257
SCREW
€ 2.00
7
5711044011
ref: 7
57110-49510
GRIP,THROTTLE
€ 33.00
8
5710044130
ref: 8
57100-47500
CASE ASSEMBLY,THROTTLE
€ 85.00
9
5737145000
ref: 9
BUTTON,HORN
€ 3.00
10
5737245000
ref: 10
CONTACT
€ 3.00
11
5738245000
ref: 11
SPRING
€ 2.50
12
0211205258
ref: 12
02112-05257
SCREW
€ 2.00
13
5730049101
ref: 13
57420-49101
LEVER ASSEMBLY,BRAKE
€ 36.50
14
5742049101
ref: 14
LEVER,BRAKE
€ 36.50
15
5743118621
ref: 15
BOLT
€ 8.00
16
0831921068
ref: 16
08319-2106A
NUT 6MM
€ 2.00
17
5746049100
ref: 17
57460-45500
SWITCH ASSEMBLY
€ 40.00
18
5746118600
ref: 18
57465-18601
HOLDER
€ 4.50
19
5746218600
ref: 19
57465-18601
SPRING
€ 4.50
20
5746318600
ref: 20
57465-18601
PLATE
€ 4.50
21
5748133010
ref: 21
COVER,FR BK TERMINAL BASE
€ 19.50
22
0912503105
ref: 22
09125-03105-XC0
SCREW
€ 2.50
23
0832121038
ref: 23
09162-03001
LOCK WASHER
€ 1.50
24
0832221038
ref: 24
08322-01037
WASHER
€ 2.00
25
0940712402
ref: 25
CLAMP(L:120)
€ 3.00
