FRONT FENDER (MODEL T)

GS500E 1995 (S) (E02 E04 E22 E25 E34 E37) / P9

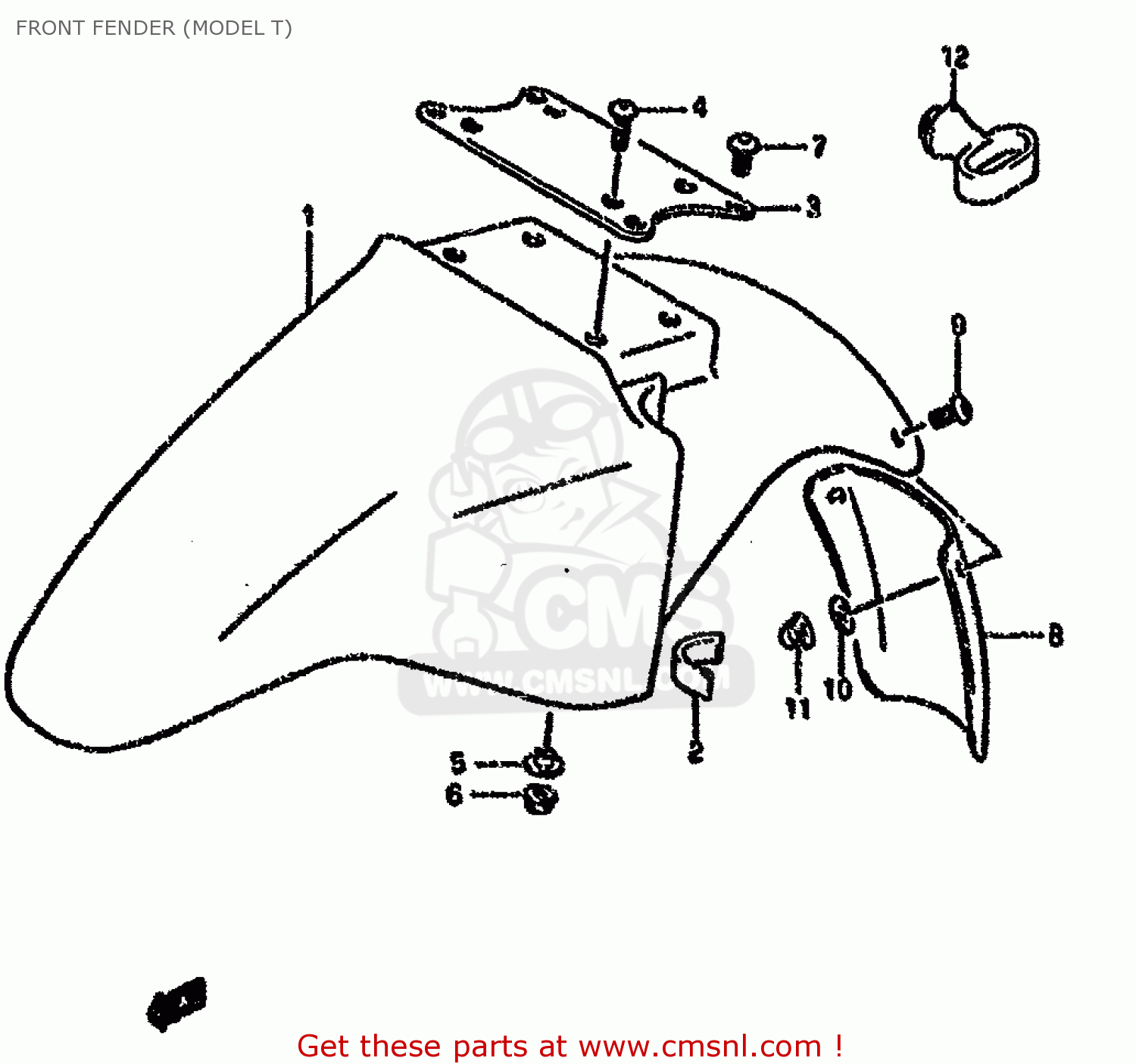

Front fender (model t) diagram GS500E 1995 (S) (E02 E04 E22 E25 E34 E37) / P9

FRONT FENDER (MODEL T) GS500E 1995 (S) (E02 E04 E22 E25 E34 E37) / P9
FRONT FENDER (MODEL T) GS500E 1995 (S) (E02 E04 E22 E25 E34 E37) / P9
FRONT FENDER (MODEL T) GS500E 1995 (S) (E02 E04 E22 E25 E34 E37) / P9
prices are in EUR
ref
part #
description
quantity
1-1
5311101D1119A
ref: 1-1
FENDER,FRONT
€ 35.50
1-2
5311101D1133J
ref: 1-2
FENDER,FRONT
€ 125.00
1-3
5311101D111ZV
ref: 1-3
FENDER,FRONT
€ 138.00
2
5314530B00
ref: 2
CUSHION,FR FENDER
5314530B00
€ 2.00
3
5311401D00
ref: 3
BRACE,FR FENDER
5311401D00
€ 19.50
4
0913905042
ref: 4
SCREW(5X16)
0913905042
€ 2.50
5
0916905010
ref: 5
WASHER
0916905010
€ 3.00
6
0915905026
ref: 6
NUT
0915905026
€ 2.50
7
0913906027
ref: 7
SCREW(6X12)
0913906027
€ 3.00
8
5331101D01
ref: 8
MUDGUARD,FR FENDER
5331101D01
€ 20.00
9
0214205127
ref: 9
SCREW
0214205127
€ 1.50
10
0916005501
ref: 10
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11
0831320053
ref: 11
NUT
0831320053
€ 1.50
12
5862121203A
ref: 12
GUIDE,CABLE
€ 7.50
1-15
5311101D211TU
ref: 1-15
MODEL R-53111-01D11-
FENDER,FRONT
€ 163.50
1-16
5311101D111TU
ref: 1-16
MODEL R/S
FENDER,FRONT
€ 163.50
1-17
5311101D111TU
ref: 1-17
E18,E22
FENDER,FRONT
€ 163.50
1-18
5311101D2119A
ref: 1-18
MODEL R-53111-01D11-
FENDER,FRONT
€ 35.50
1-19
5311101D1119A
ref: 1-19
FENDER,FRONT
€ 35.50
1-20
5311101D1119A
ref: 1-20
E18,E22
FENDER,FRONT
€ 35.50
1-21
5311101D1133J
ref: 1-21
MODEL R/S
FENDER,FRONT
€ 125.00
1-22
5311101D111ZV
ref: 1-22
MODEL S
FENDER,FRONT
€ 138.00
2
5314532B00
ref: 2
CUSHION,FRONT FENDER
€ 2.00
3-1
5311419C00
ref: 3-1
MODEL K
BRACE,FRONT FENDER
€ 19.50
3-2
5311401D00
ref: 3-2
MODEL L/M/N/P/R/S
BRACE,FR FENDER
5311401D00
€ 19.50
4
0913905042
ref: 4
SCREW(5X16)
0913905042
€ 2.50
5
0916905010
ref: 5
WASHER
0916905010
€ 3.00
6
0915905026
ref: 6
NUT
0915905026
€ 2.50
7
0913906027
ref: 7
SCREW(6X12)
0913906027
€ 3.00
8-1
5331101D01
ref: 8-1
MUDGUARD,FR FENDER
5331101D01
€ 20.00
8-2
5331101D11
ref: 8-2
-53311-01D01
MUD FLAP,FRONT FENDER
5331101D11
€ 20.00
9
0214205127
ref: 9
SCREW
0214205127
€ 1.50
10-1
0916005030
ref: 10-1
MODEL K/L/M/N/P/R
WASHER
0916005030
€ 2.00
10-2
0916005501
ref: 10-2
MODEL S
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11-1
0831321055
ref: 11-1
MODEL K/L/M/N/P
NUT 5MM
0831321055
€ 1.50
11-2
0831320053
ref: 11-2
MODEL R/S
NUT
0831320053
€ 1.50
12
5862121203A
ref: 12
GUIDE,CABLE
€ 7.50
