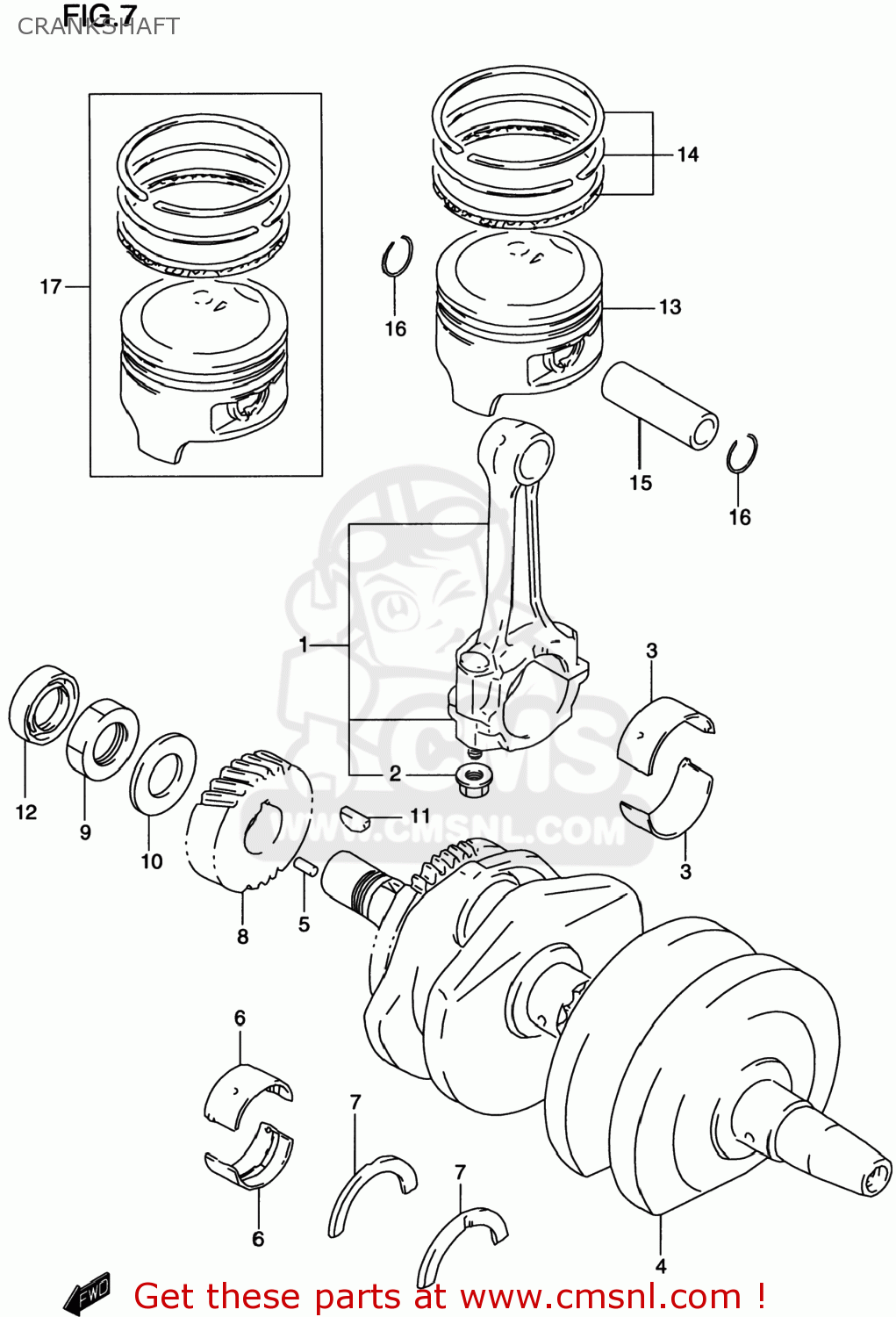

CRANKSHAFT

ref

part #

description

quantity

1

1216044100
ref: 1
12160-44101

ROD ASSEMBLY,CONNECTING

€ 135.50

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216401D010A0
ref: 3-1

BEARING,CRANK PIN

€ 13.50

3-2

1216401D010B0
ref: 3-2

BEARING,CRANK PIN

€ 14.50

3-3

1216401D010C0
ref: 3-3

BEARING,CRANK PIN

€ 14.50

3-4

1216401D010D0
ref: 3-4

BEARING,CRANK PIN

€ 15.00

4

1222001D02
ref: 4

CRANKSHAFT

€ 1,167.50

5

0920203016
ref: 5

PIN

€ 1.50

6-1

1222901D010A0
ref: 6-1

BEARING,CRANKSHAFT(GREEN)

€ 10.50

6-2

1222901D010B0
ref: 6-2

BEARING,CRANKSHAFT(BLACK)

€ 11.00

6-3

1222901D010C0
ref: 6-3

BEARING,CRANKSHAFT(BROWN)

€ 11.00

6-4

1222901D010D0
ref: 6-4

BEARING,CRANKSHAFT(YELLOW)

€ 11.00

7

1222844106
ref: 7

BEARING,CRANK THRUST

€ 8.50

8

2111144100
ref: 8

GEAR,PRIMARY DRIVE NO.28

€ 57.50

9

0914024007
ref: 9

NUT

€ 4.50

10

0916425001
ref: 10

WASHER

€ 4.50

11

0834131059
ref: 11

KEY

€ 3.00

12

0928322015
ref: 12

SEAL,OIL(22X40X8)

€ 10.50

13

1211101D010F0
ref: 13

PISTON (74.00MM)

€ 77.00

14

1214001D20
ref: 14

RING SET,PISTON

€ 57.00

15

1215145501
ref: 15

PIN,PISTON (18MM)

€ 14.00

16

0938118002
ref: 16

CIRCLIP

€ 1.50

17-1

1210001D00050
ref: 17-1

PISTON SET(OS:0.5)

€ 112.50

17-2

1210001D00100
ref: 17-2

PISTON SET (OS:1.0)

€ 115.00

all assemblies
