REAR COMBINATION LAMP

GS500E 2000 (Y) USA CANADA (E03) (E28)

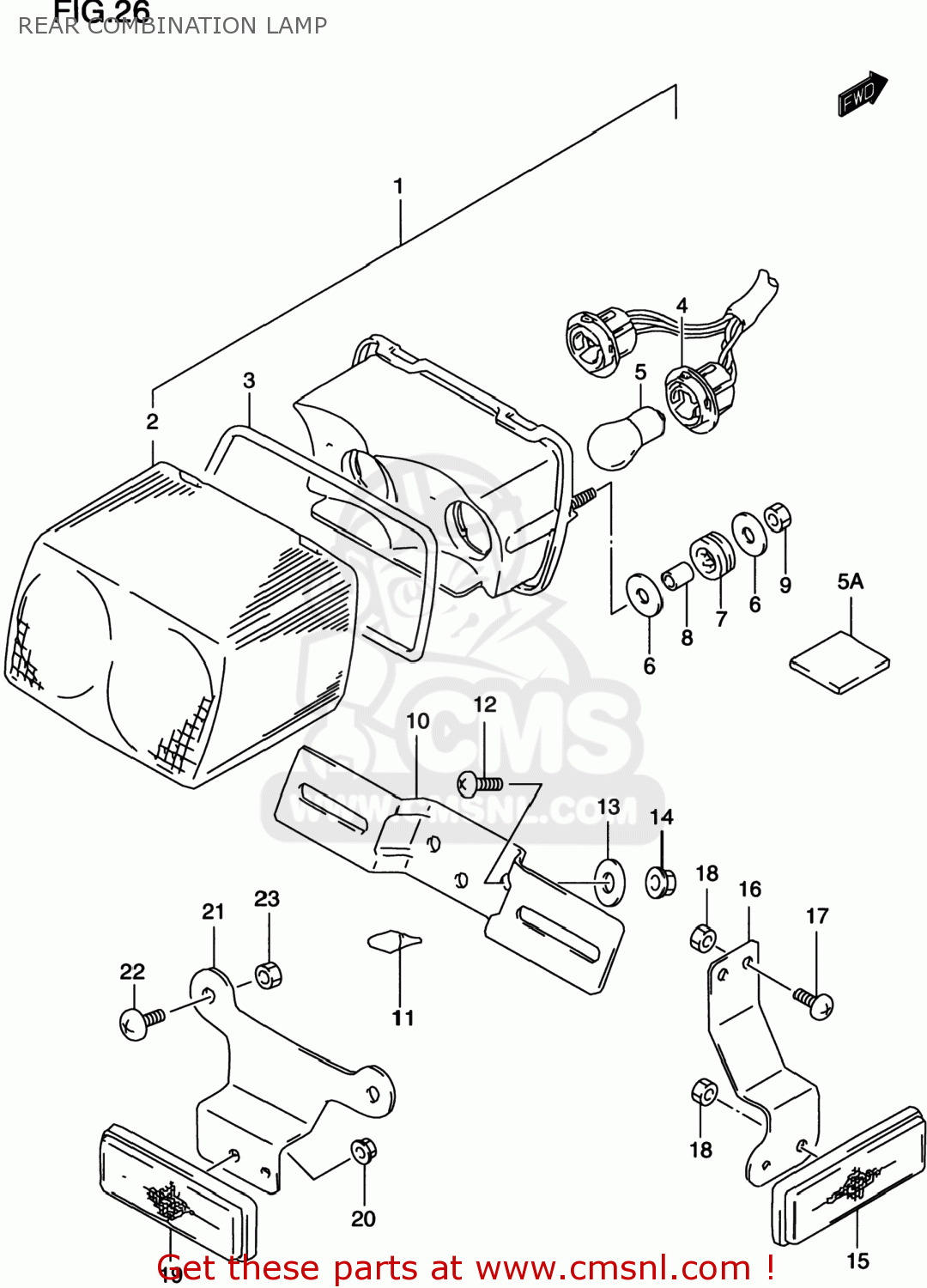

Rear combination lamp diagram GS500E 2000 (Y) USA CANADA (E03) (E28)

REAR COMBINATION LAMP GS500E 2000 (Y) USA CANADA (E03) (E28)
REAR COMBINATION LAMP GS500E 2000 (Y) USA CANADA (E03) (E28)
REAR COMBINATION LAMP GS500E 2000 (Y) USA CANADA (E03) (E28)
prices are in EUR
ref
part #
description
quantity
1
3571001D11
ref: 1
LAMP ASSY,RR COMBINATION
€ 126.00
2
3571201D10
ref: 2
LENS
€ 22.00
3
3571301D00
ref: 3
GASKET (NAS)
3571301D00
€ 7.00
4
3571812D00
ref: 4
SOCKET
3571812D00
€ 40.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
5A
3573310D00
ref: 5A
CUSHION,REAR LENS
€ 3.00
6
0916006077
ref: 6
WASHER(6.5X20X1.2)
0916006077
€ 2.00
7
0932009009
ref: 7
CUSHION
0932009009
€ 5.00
8
0918006262
ref: 8
SPACER(6.5X9X8.5)
0918006262
€ 3.00
9
0831000063
ref: 9
08310-0006A
NUT 6MM
0831000063
€ 2.00
10
3592701D10
ref: 10
BRACKET,LICENSE PLATE
€ 0.00
11
0932106028
ref: 11
CUSHION
0932106028
€ 3.00
12
0214206163
ref: 12
02142-0616A
SCREW
0214206163
€ 2.50
13
0916006077
ref: 13
WASHER(6.5X20X1.2)
0916006077
€ 2.00
14
0831000063
ref: 14
08310-0006A
NUT 6MM
0831000063
€ 2.00
15
3597024D60
ref: 15
REFLECTOR ASSY,RR
3597024D60
€ 19.50
16
3597701D11
ref: 16
BRACKET,RR SIDE REFLECTOR
3597701D11
€ 5.50
17
0214205123
ref: 17
02142-0512A
SCREW 5X12
0214205123
€ 1.50
18
0831000053
ref: 18
08310-0005A
NUT
€ 2.50
19
3597024D60
ref: 19
REFLECTOR ASSY,RR
3597024D60
€ 19.50
20
0831000053
ref: 20
08310-0005A
NUT
€ 2.50
21
3597401D00
ref: 21
BRACKET,RR RR
3597401D00
€ 3.50
22
0214206123
ref: 22
02142-0612A
SCREW 6X12
0214206123
€ 2.00
23
0831000063
ref: 23
08310-0006A
NUT 6MM
0831000063
€ 2.00
