AIR CLEANER
GS500EU 1995 (S) AUSTRIA (E39)

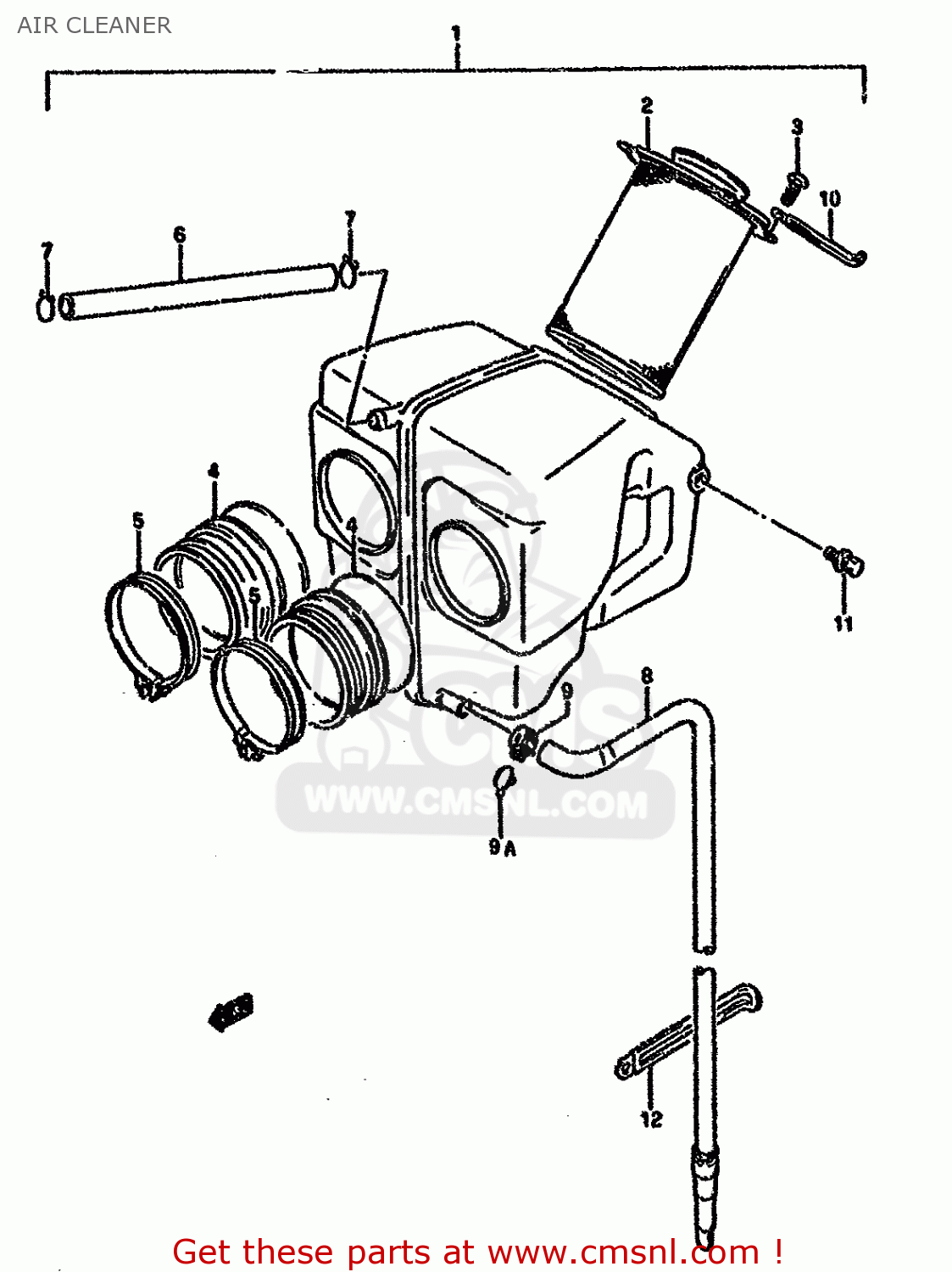

Air cleaner diagram GS500EU 1995 (S) AUSTRIA (E39)
AIR CLEANER GS500EU 1995 (S) AUSTRIA (E39)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370001D01
ref: 1-1
MODEL K/L/M/N/P/R/S
CLEANER ASSEMBLY,AIR
€ 138.00
1-2
1370001D50
ref: 1-2
MODEL T
CLEANER ASSY, AIR
€ 138.50
1-3
1370001D01
ref: 1-3
MODEL T E24,E37
CLEANER ASSEMBLY,AIR
€ 138.00
1-4
1370001D10
ref: 1-4
MODEL K/L E39
CLEANER ASSY,AIR
€ 154.50
1-5
1370001D11
ref: 1-5
MODEL M E39
CLEANER ASSY,AIR
€ 154.50
1-6
1370001D40
ref: 1-6
MODEL N/P/R/S/T E18,
CLEANER ASSY, AIR
€ 154.50
2-1
1378001D00
ref: 2-1
MODEL K/L/M/N/P/R/S
FILTER ASSY
€ 30.50
2-2
1378001D50
ref: 2-2
MODEL T
FILTER,AIR
€ 36.00
2-3
1378001D00
ref: 2-3
MODEL T E24,E37
FILTER ASSY
€ 30.50
2-4
1378001D10
ref: 2-4
MODEL K/L/M E39
FILTER ASSY
€ 31.00
2-5
1378001D40
ref: 2-5
MODEL N/P/R/S/T E18,
FILTER ASSY,AIR
€ 38.00
3
0214205087
ref: 3
SCREW
€ 2.00
4
1388101D00
ref: 4
TUBE,OUTLET
€ 20.00
5
0940268208
ref: 5
CLAMP
€ 6.00
6
0935211153600
ref: 6
HOSE(11X15X600)
€ 13.50
7
0940114301
ref: 7
CLIP
€ 2.00
8-1
1387021411
ref: 8-1
MODEL K/L
DRAIN TUBE
€ 23.50
8-2
1387021628
ref: 8-2
MODEL M/N/P/R/S
TUBE,DRAIN
€ 23.50
8-3
1387021458
ref: 8-3
MODEL T
TUBE,DRAIN
€ 23.50
9
1382738B00
ref: 9
MODEL K/L
CLAMP
€ 2.50
9A
0940113409
ref: 9A
MODEL M/N/P/R/S/T
CLIP
€ 2.50
10
0940406413
ref: 10
CLAMP
€ 2.50
11-1
0911806088
ref: 11-1
MODEL K/L
BOLT 6X16
€ 0.00
11-2
0211276165
ref: 11-2
MODEL M/N/P
VIS
€ 2.00
11-3
0211276163
ref: 11-3
MODEL R/S/T
SCREW
€ 2.00
12-1
0940406426
ref: 12-1
MODEL K/L/M/N/P/R/S
CLAMP
€ 3.00
12-2
0940406433
ref: 12-2
MODEL T
CLAMP(L:80)
€ 3.00
