STARTING MOTOR

GS500EU 1995 (S) AUSTRIA (E39)

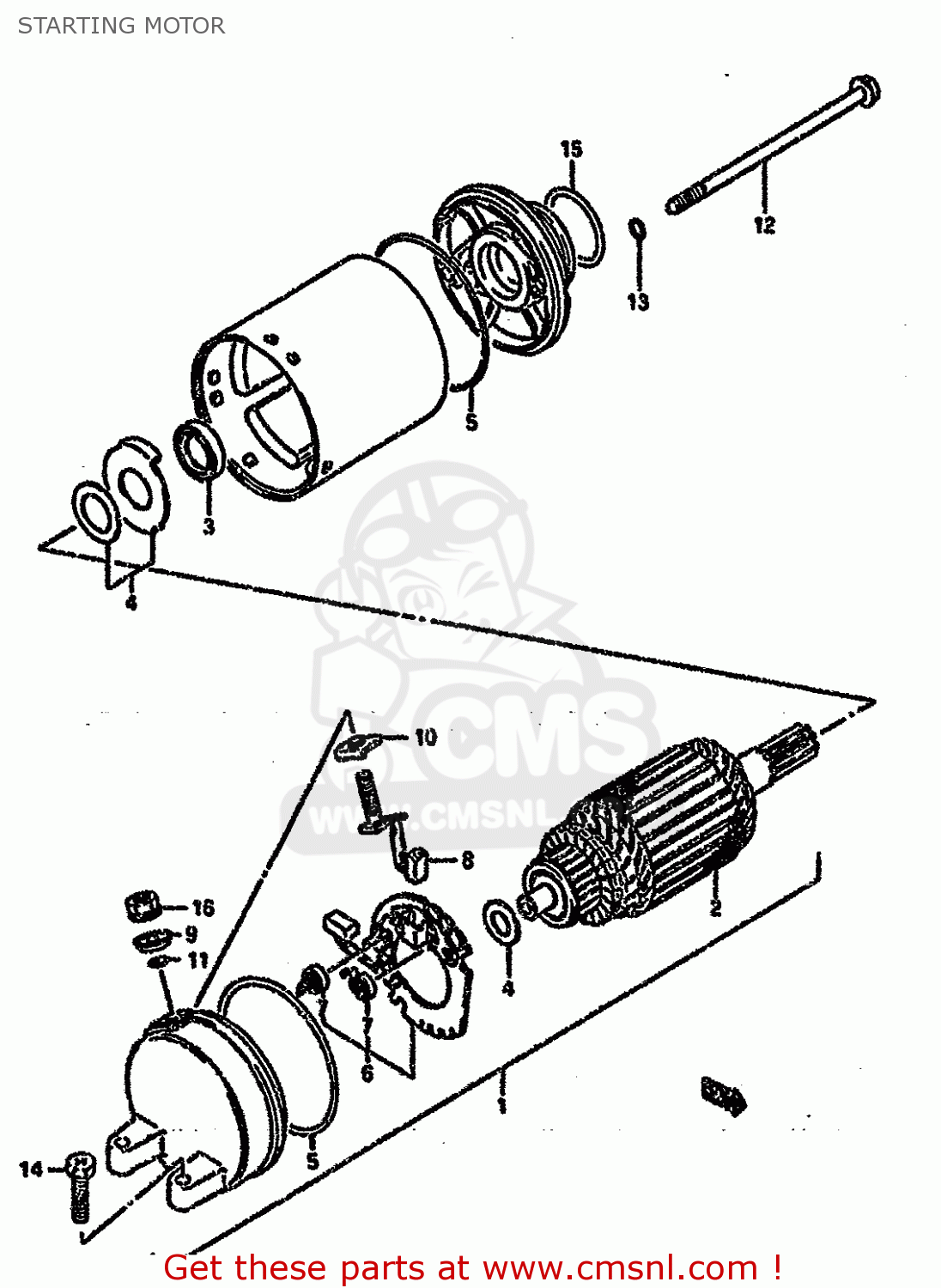

Starting motor diagram GS500EU 1995 (S) AUSTRIA (E39)

STARTING MOTOR GS500EU 1995 (S) AUSTRIA (E39)

STARTING MOTOR GS500EU 1995 (S) AUSTRIA (E39)

prices are in EUR

ref

part #

description

quantity

1-1

3110027A01H17
ref: 1-1
MODEL K/L/M/N/P

MOTOR ASSEMBLY,STARTING

€ 530.00

1-2

3110020C00
ref: 1-2
MODEL R/S/T

MOTOR ASSEMBLY,STARTING

€ 530.00

2

3131027A01H17
ref: 2

ARMATURE

€ 222.00

3

3115343400
ref: 3

SEAL,OIL

€ 19.50

4

3117043400
ref: 4

SHIM SET,STARTING MOTOR

€ 3.50

5

3126444110
ref: 5

O RING

€ 8.00

6

3113227A01
ref: 6

HOLDER,BRUSH

€ 47.00

7

3113565010
ref: 7

SPRING

€ 3.00

8

3113038300
ref: 8

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

9

3117238300
ref: 9

BUSHING

€ 4.00

10

3117138300
ref: 10

BUSH,B

€ 5.50

11

3114338300
ref: 11

O RING

€ 3.50

12

3128188C00
ref: 12

BOLT

€ 8.50

13

3115638300
ref: 13

O RING

€ 3.00

14

0912806024
ref: 14

SCREW (6X25)

€ 2.50

15

0928024003
ref: 15

O RING(D:3,ID:24.5)

€ 2.00

16

0836135066
ref: 16

NUT

€ 2.00
