CUSHION LEVER (MODEL M/N/P/R/S/T)

GS500EU 1995 (S) AUSTRIA (E39)

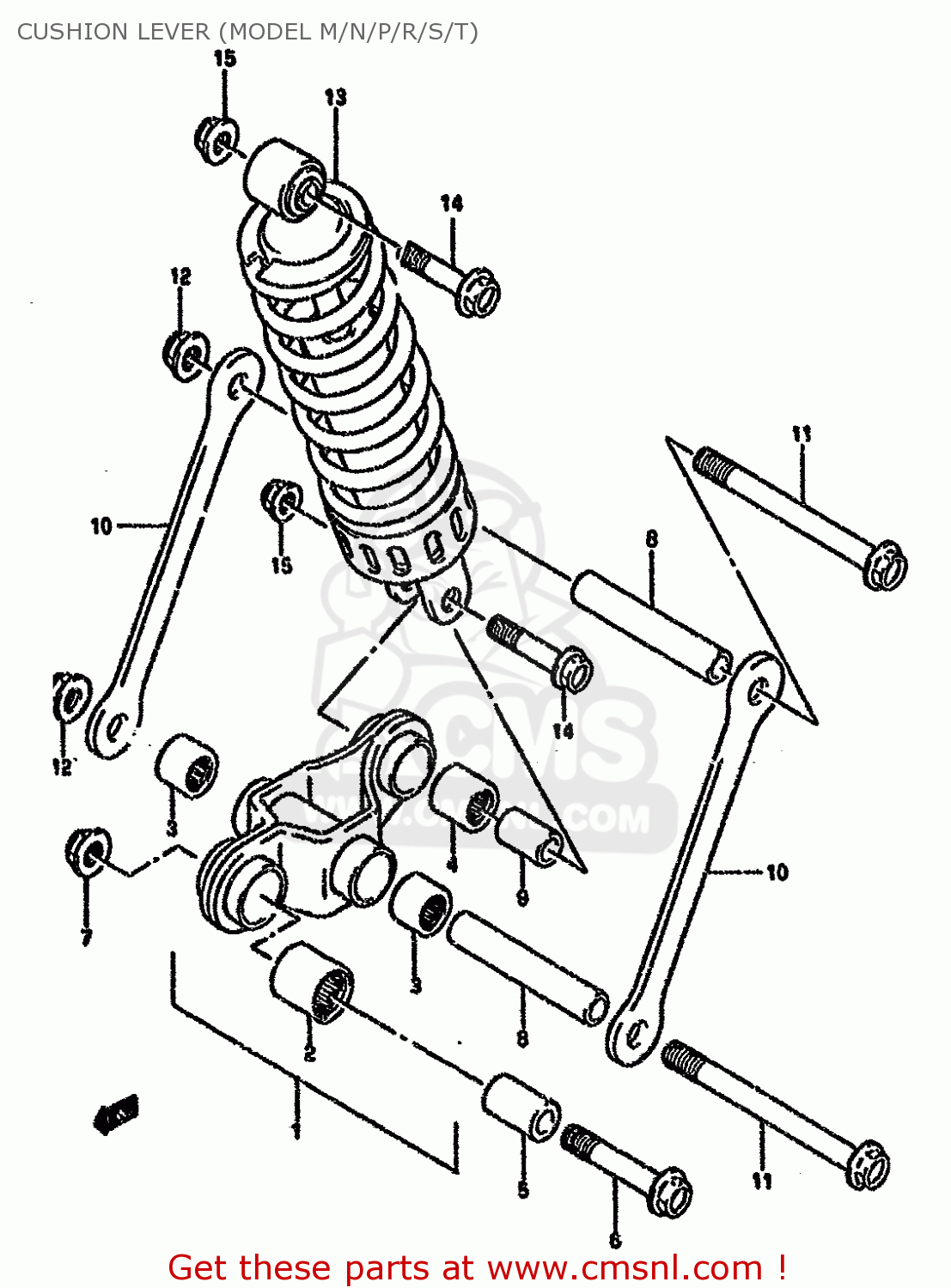

Cushion lever (model m/n/p/r/s/t) diagram GS500EU 1995 (S) AUSTRIA (E39)

CUSHION LEVER (MODEL M/N/P/R/S/T) GS500EU 1995 (S) AUSTRIA (E39)
CUSHION LEVER (MODEL M/N/P/R/S/T) GS500EU 1995 (S) AUSTRIA (E39)
CUSHION LEVER (MODEL M/N/P/R/S/T) GS500EU 1995 (S) AUSTRIA (E39)
prices are in EUR
ref
part #
description
quantity
1
6260101821
ref: 1
LEVER SET,RR CUSHION
€ 193.00
2
0926320064
ref: 2
BEARING(20X27X26)
0926320064
€ 20.00
3
0926317037
ref: 3
BEARING(17X24X25)
0926317037
€ 19.00
4
0926317034
ref: 4
BEARING(17X24X26)
0926317034
€ 21.50
5-1
6268401D00
ref: 5-1
-62684-05C00
SPACER,RR CUSHION LEVER FR
6268401D00
€ 17.00
5-2
6268405C00
ref: 5-2
SPACER,REAR CUSHION LEVER
6268405C00
€ 17.00
6
0910312042
ref: 6
BOLT(12X57)
0910312042
€ 6.00
7
0831931128
ref: 7
NUT 12MM
0831931128
€ 4.00
8
0918012128
ref: 8
SPACER (12X17X89)
€ 22.00
9-1
6268401D10
ref: 9-1
-62684-40A10
SPACER,REAR CUSHION LEVER
€ 11.50
9-2
6268440A10
ref: 9-2
SPACER,RR CUSHION LEVER
6268440A10
€ 11.50
10-1
6264101D01
ref: 10-1
MODEL M/N
ROD,REAR CUSHION LEVER
€ 22.00
10-2
6264101D02
ref: 10-2
MODEL P/R/S/T
ROD,RR CUSHION LEVER
6264101D02
€ 22.00
11
0910312041
ref: 11
BOLT(12X118)
0910312041
€ 11.50
12
0831931128
ref: 12
NUT 12MM
0831931128
€ 4.00
13
6210001D10
ref: 13
ABSORBER ASSY,RR SHOCK
6210001D10
€ 341.50
14
0910310213
ref: 14
BOLT(10X52)
0910310213
€ 4.00
15
0831931107
ref: 15
NUT
0831931107
€ 3.00
