BATTERY
GS550 1979 (N) USA (E03)

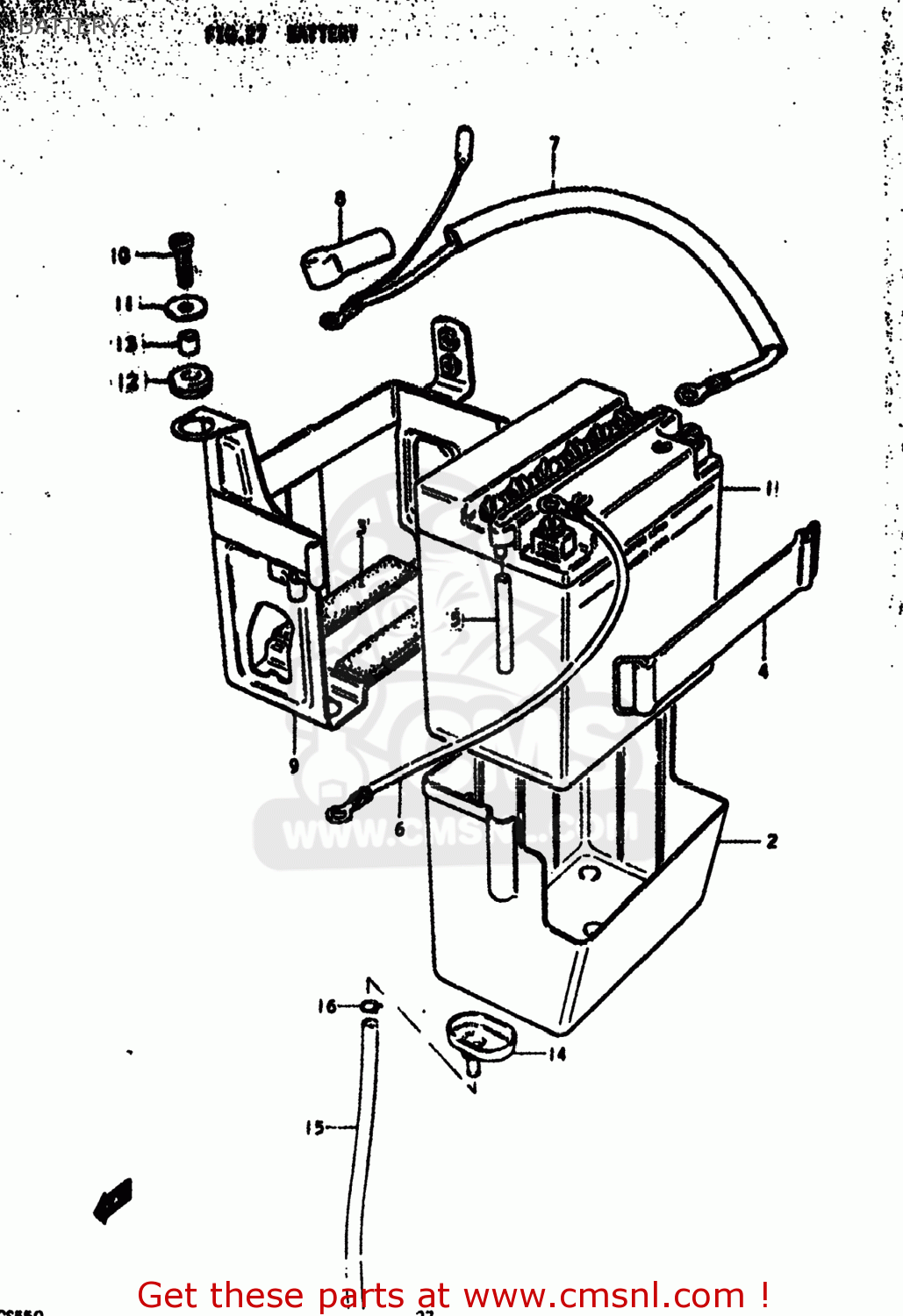

Battery diagram GS550 1979 (N) USA (E03)
BATTERY GS550 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3361044010
ref: 1
BATTERY ASSY (12V)
€ 74.50
2
3366147000
ref: 2
CASE,BATTERY
€ 12.50
3
3365229100
ref: 3
33651-37000
PROTECTOR,20X9
€ 5.00
4
0946200043
ref: 4
BAND
€ 4.50
5
3368147000
ref: 5
33680-16A10
HOSE, EXHAUST (L:45)
€ 4.50
6
3385047000
ref: 6
33850-03201
WIRE,STARTER MOTOR LEAD
€ 8.50
7
3382047001
ref: 7
33820-47003
WIRE,BATTERY PLUS
€ 14.50
8
3362445000
ref: 8
CAP,TERMINAL
€ 5.50
9-1
4154047000
ref: 9-1
41540-47010
HOLDER,BATTERY
€ 41.00
9-2
4154047010
ref: 9-2
HOLDER,BATTERY
€ 41.00
10
0912806006
ref: 10
09128-06057
BOLT(6X20)
€ 2.00
11
0916006020
ref: 11
09160-06066
WASHER
€ 2.00
12
0932008007
ref: 12
09320-08021
CUSHION
€ 4.00
13
0918006038
ref: 13
SPACER(6.1X9X7.5)
€ 2.00
14
3366247000
ref: 14
FUNNEL,BATTERY EXHAUST
€ 3.50
15-1
3368047000
ref: 15-1
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
15-2
3368047001
ref: 15-2
33680-16A10
HOSE,BATTERY EXHAUST
€ 4.50
16
0940108301
ref: 16
CLIP
€ 1.50
