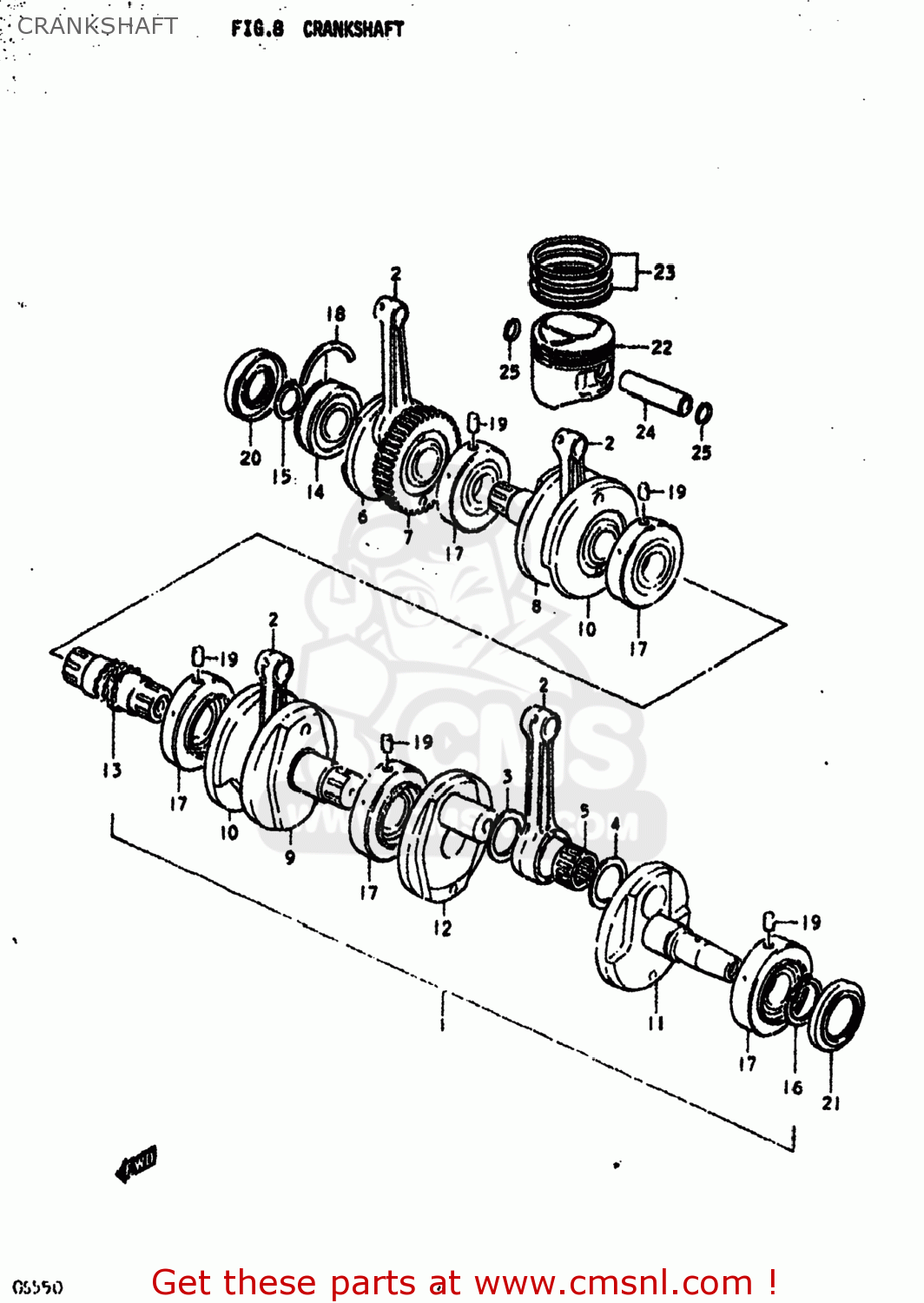

CRANKSHAFT

ref

part #

description

quantity

1-1

1220047000
ref: 1-1
12200-47014

CRANKSHAFT ASSEMBLY

€ 1,265.50

1-2

1220047001
ref: 1-2
12200-47014

CRANKSHAFT ASSEMBLY

€ 1,265.50

1-3

1220047002
ref: 1-3
12200-47014

CRANKSHAFT ASSEMBLY

€ 1,265.50

1-4

1220047011
ref: 1-4
12200-47014

CRANKSHAFT ASSEMBLY

€ 1,265.50

2-1

1216147000
ref: 2-1
12161-47001

CONNECTING ROD

€ 65.50

2-2

1216147001
ref: 2-2

ROD,CONNECTING

€ 65.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328006
ref: 5

ROLLER BEARING (28X38X16.8)

€ 22.00

6-1

1222047000
ref: 6-1

CRANKSHAFT

€ 0.00

6-2

1222047001
ref: 6-2

CRANKSHAFT

€ 99.50

7-1

1223047000
ref: 7-1
12230-47001

WEB,CRANK

€ 0.00

7-2

1223047001
ref: 7-2

WEB,CRANK

€ 0.00

7-3

1223047002
ref: 7-3

WEB,CRANK

€ 48.00

7-4

1223047011
ref: 7-4
12230-34500

WEB,CRANK

€ 80.00

8-1

1224147000
ref: 8-1
12271-47000

CRANKSHAFT

€ 62.50

8-2

1224147001
ref: 8-2

CRANKSHAFT

€ 0.00

8-3

1224147002
ref: 8-3
12241-34500

CRANKSHAFT

€ 72.50

9

1227147000
ref: 9

CRANKSHAFT

€ 62.50

9

1227147000
ref: 9

CRANKSHAFT

€ 62.50

10-1

1225047000
ref: 10-1

WEB,CRANK,MIDDLE

€ 55.50

10-2

1225047001
ref: 10-2
12250-34500

WEB,CRANK,MIDDLE

€ 113.50

11-1

1226147000
ref: 11-1

CRANKSHAFT,LEFT

€ 64.50

11-2

1226147001
ref: 11-2
12261-34500

CRANKSHAFT,LEFT

€ 113.50

12-1

1229047000
ref: 12-1

WEB,CRANK,LEFT

€ 0.00

12-2

1229047001
ref: 12-2
12290-34500

WEB,CRANK,LEFT

€ 148.50

13-1

1228147000
ref: 13-1

SHAFT,TIMING CHAIN DRIVE

€ 0.00

13-2

1228147001
ref: 13-2
12281-34500

SHAFT,TIMING CHAIN DRIVE

€ 75.50

14

0926230033
ref: 14

BEARING(30X72X19)

€ 47.00

15

0833111308
ref: 15
08331-3130A

CIRCLIP,30MM

€ 3.00

16

0833131329
ref: 16

CIRCLIP.32MM

€ 2.00

17

0926432002
ref: 17
09264-32009

BEARING

€ 138.00

18

0939072004
ref: 18

C RING

€ 3.00

19

0422107129
ref: 19

PIN

€ 1.50

20

0928330021
ref: 20

SEAL,OIL(30X72X11)

€ 22.00

21

0928948001
ref: 21
09289-48002

OIL SEAL

€ 12.00

21

0928948001
ref: 21
09289-48002

OIL SEAL

€ 12.00

22-1

1211147000
ref: 22-1
12111-47001

PISTON

€ 47.50

22-2

1211147700
ref: 22-2
12103-47830-050

PISTON

€ 84.00

22-3

1211147000050
ref: 22-3
12103-47830-050

PISTON

€ 84.00

22-4

1211147710
ref: 22-4
12103-47830-100

PISTON

€ 99.50

22-5

1211147000100
ref: 22-5
12103-47830-100

PISTON

€ 99.50

23-1

1210047810
ref: 23-1
12140-47031

RING SET,PISTON

€ 61.50

23-2

1214047031
ref: 23-2

RING SET,PISTON

€ 61.50

23-3

1210047820
ref: 23-3
12140-47031-050

RING SET,PISTON

€ 41.50

23-4

1214047031050
ref: 23-4

RING SET,PISTON (OS:0.5)

€ 41.50

23-5

1210047830
ref: 23-5
12140-47031-100

PISTON RING SET (OS:1.0)

€ 44.50

23-6

1214047031100
ref: 23-6

RING SET,PISTON (OS:1.0)

€ 44.50

24

1215108001
ref: 24

PIN,PISTON 16MM

€ 10.00

25

0938116002
ref: 25
09381-16001

CIRCLIP

€ 1.50
