REAR WHEEL (GS550B
GS550 1979 (N) USA (E03)

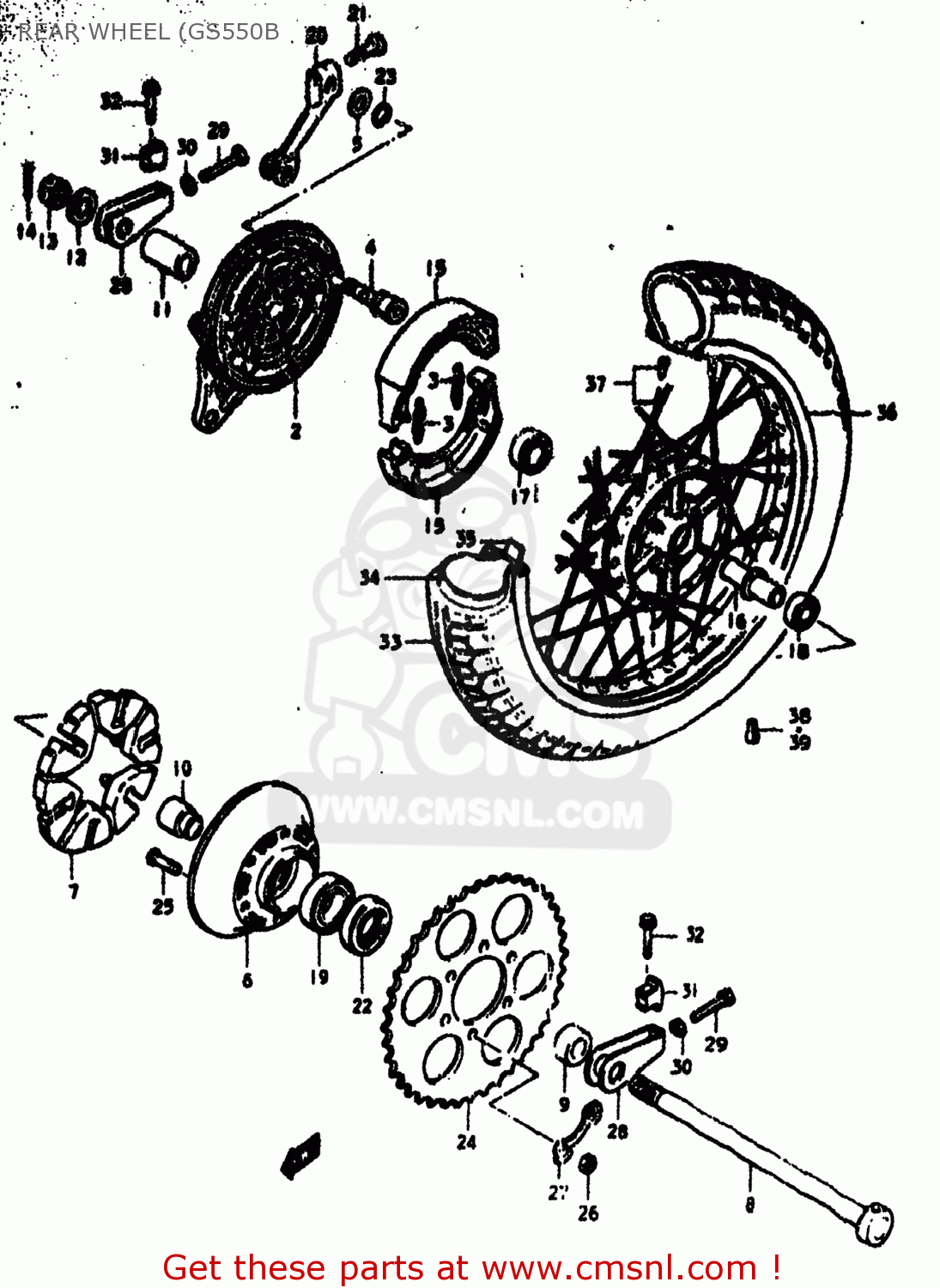

Rear wheel (gs550b diagram GS550 1979 (N) USA (E03)
REAR WHEEL (GS550B GS550 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411011001
ref: 1
DRUM,REAR HUB
€ 156.50
2-1
6421034100
ref: 2-1
PANEL,REAR HUB
€ 64.50
2-2
6421011002
ref: 2-2
PANEL,REAR HUB
€ 83.50
3
5542030000
ref: 3
SPRING,BRAKE SHOE
€ 3.50
4
5444011003
ref: 4
64440-38A00
CAM,FRONT BRAKE
€ 43.00
5
0916015001
ref: 5
09160-15048
WASHER (15X24X1.6)
€ 2.50
6
6461134000
ref: 6
DRUM,REAR SPROCKET MOUNT
€ 81.00
7
6465111001
ref: 7
64651-11002
CUSHION,REAR DRUM
€ 19.50
8
6471147000
ref: 8
AXLE,REAR
€ 45.00
9
0918017039
ref: 9
SPACER (17.5X28X51.8)
€ 8.50
10
6473334000
ref: 10
SPACER,REAR HUB BEARING
€ 24.00
11
0918017042
ref: 11
SPACER(17X30.5X22.3)
€ 8.50
12
0916017013
ref: 12
09160-17050
WASHER (17X30X3.2)
€ 2.00
13
0914116001
ref: 13
NUT
€ 6.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
6441034100
ref: 15
64400-34830
SHOE,BRAKE
€ 69.00
16
6473011000
ref: 16
SPACER
€ 21.00
17
0814363037
ref: 17
BEARING
€ 23.00
18
0814362037
ref: 18
BEARING
€ 18.50
19
0811362057
ref: 19
BEARING
€ 18.00
20
6445144000
ref: 20
64451-44001
LEVER,REAR BRAKE CAM
€ 111.00
21
0110706258
ref: 21
01500-06257
BOLT
€ 2.00
22
0928330001
ref: 22
09285-30001
OIL SEAL
€ 20.00
23
0928015001
ref: 23
09280-15003
O-RING,BOSS
€ 2.00
24
6451147001
ref: 24
SPROCKET,REAR
€ 58.00
25
0911910010
ref: 25
09105-10002
BOLT
€ 3.50
26
0831012108
ref: 26
08310-00107
NUT
€ 2.50
27
0916910006
ref: 27
WASHER
€ 4.50
28
6141033000
ref: 28
61410-47200
ADJUSTER,CHAIN
€ 58.00
29
0910408006
ref: 29
09104-08034
BOLT
€ 3.00
30
0831012088
ref: 30
08310-00087
NUT
€ 2.00
31
6143331000
ref: 31
61433-3100V
SUPPORTER,CHAIN ADJUST
€ 22.50
32
0151708508
ref: 32
01550-08507
BOLT
€ 3.50
33-1
6510047610
ref: 33-1
65100-47600
TIRE
€ 79.50
33-2
6510047035
ref: 33-2
65100-47600
TIRE
€ 79.50
34
6520015011
ref: 34
65200-49015
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
35
6526115010
ref: 35
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
36
6531115021
ref: 36
RIM,WHEEL
€ 170.50
37
6530031830
ref: 37
65300-31831
SPOKE SET,REAR
€ 69.50
38
5541111000
ref: 38
55411-26G00
BALANCER,WHEEL (B)
€ 4.50
39
5541211000
ref: 39
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
