COWLING (GS550ES3/ESE)
GS550EF 1984 (E) USA (E03)

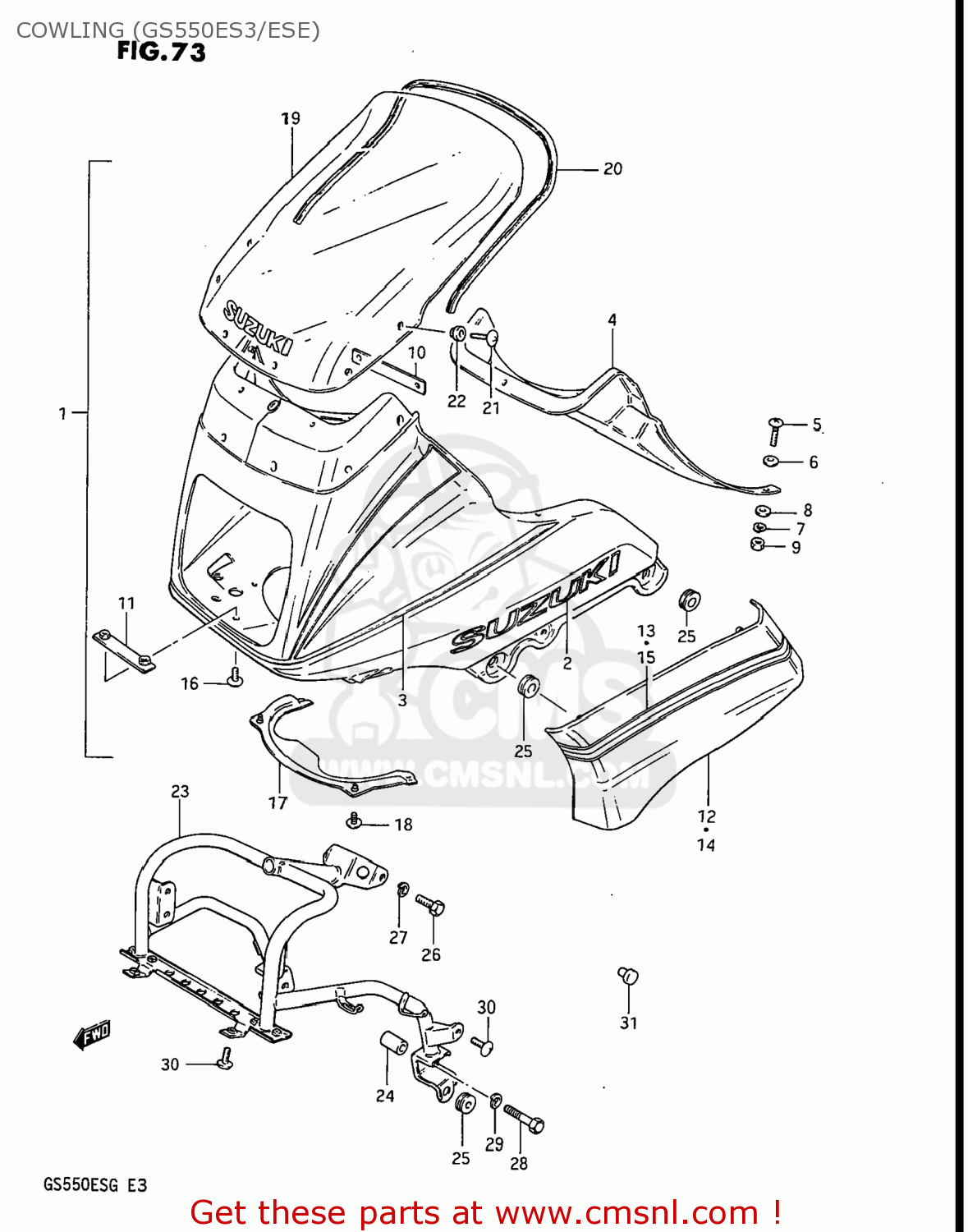

Cowling (gs550es3/ese) diagram GS550EF 1984 (E) USA (E03)
COWLING (GS550ES3/ESE) GS550EF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
944004349004X
ref: 1
COWLING ASSEMBLY
€ 413.50
2
681113240173H
ref: 2
68111-44400-07G
EMBLEM
€ 8.50
3
68190434107FG
ref: 3
TAPE SET,COWLING
€ 22.00
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
02142-0516A
SCREW
€ 2.50
6
0832221055
ref: 6
08322-0105A
WASHER,5MM
€ 2.50
7
0832121055
ref: 7
08321-0105A
WASHER,LOCK
€ 3.00
8
0832221055
ref: 8
08322-0105A
WASHER,5MM
€ 2.50
9
0831012055
ref: 9
08310-0005A
NUT ,5MM
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12
944304342005X
ref: 12
94430-43400
COVER,COWLING,RIGHT
€ 63.50
13
68680434207FG
ref: 13
TAPE SET,COWLING
€ 13.50
14
944404342005X
ref: 14
COVER,COWLING,LEFT
€ 37.50
15
68690434207FG
ref: 15
TAPE SET,COWLING
€ 14.00
16
0214205127
ref: 16
SCREW
€ 1.50
17
9448043400
ref: 17
94480-43410
COVER,COWLING,LOWER
€ 19.00
18
0214205165
ref: 18
02142-0516A
SCREW
€ 2.50
19
9461143431
ref: 19
WINDOW,COWLING
€ 281.50
20
9463143400
ref: 20
94631-44110
MOLDING,LOWER
€ 18.00
21
0214205165
ref: 21
02142-0516A
SCREW
€ 2.50
22
0932005008
ref: 22
CUSHION
€ 5.00
23
9451043400
ref: 23
BRACE,COWLING
€ 112.50
24
0918008057
ref: 24
SPACER (8.2X12.5X23.5)
€ 2.00
25
0932008018
ref: 25
CUSHION
€ 4.00
26
0110708165
ref: 26
01500-0816B
BOLT
€ 2.00
27
0832121085
ref: 27
08321-0108A
LOCK WASHER
€ 2.50
28
0110708455
ref: 28
01500-08453
BOLT
€ 2.50
29
0832121085
ref: 29
08321-0108A
LOCK WASHER
€ 2.50
30
0214206125
ref: 30
02142-0612A
SCREW 6X12
€ 2.00
31-1
0925006007
ref: 31-1
09250-06005
PLUG
€ 2.00
31-2
0925005006
ref: 31-2
09250-05007
PLUG
€ 2.50
31-2
0925005006
ref: 31-2
09250-05007
PLUG
€ 2.50
31-2
0925005006
ref: 31-2
09250-05007
PLUG
€ 2.50
