MUFFLER (GS550ES3/ESE)
GS550EF 1984 (E) USA (E03)

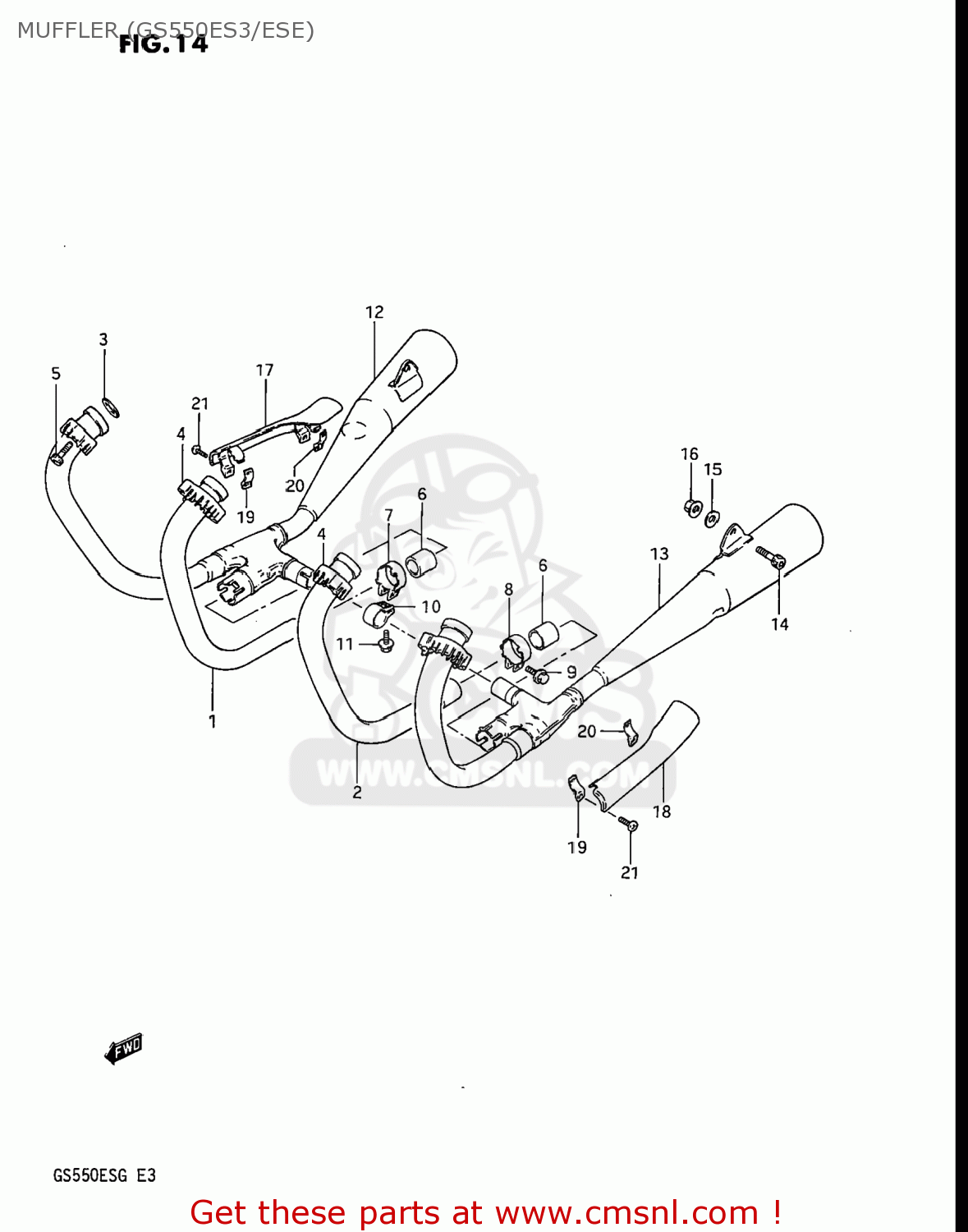

Muffler (gs550es3/ese) diagram GS550EF 1984 (E) USA (E03)
MUFFLER (GS550ES3/ESE) GS550EF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1417043401
ref: 1
PIPE,EXHAUST,CENTER,RIGHT
€ 95.50
2
1418043401
ref: 2
PIPE,EXHAUST,CENTER,LEFT
€ 88.00
3
1418105020
ref: 3
14181-18C00
GASKET,EXHAUST PIPE (NAS)
€ 6.50
4
1418231302
ref: 4
CLAMP,EXHAUST PIPE
€ 24.00
5
0910608036
ref: 5
09106-08036-XC0
BOLT
€ 3.00
6
1477147020
ref: 6
14771-47020-H17
CONNECTOR,MUFFLER
€ 35.00
7
1445934300
ref: 7
14459-34200
CLAMP,MUFFLER CONNECTOR
€ 13.00
8
1446934300
ref: 8
14469-34200
CLAMP,MUFFLER CONNECTOR
€ 13.00
9
0151708254
ref: 9
01550-0825A
BOLT
€ 2.50
10
1477243400
ref: 10
CLAMP,EXHAUST
€ 8.50
11
0151706205
ref: 11
01550-0620A
BOLT
€ 2.50
12
1430543421H01
ref: 12
MUFFLER
€ 213.00
13
1430643421H01
ref: 13
MUFFLER,LEFT
€ 205.50
14
0910610015
ref: 14
BOLT
€ 4.50
15
0916010005
ref: 15
WASHER(10.5X20X3.2)
€ 2.00
16
0915910014
ref: 16
09159-10046-XC0
NUT
€ 2.00
17
1478043402
ref: 17
COVER,MUFFLER,RIGHT
€ 33.50
18
1479043402
ref: 18
COVER,MUFFLER,LEFT
€ 31.50
19
1478531301
ref: 19
14785-31310
CLAMP,MUFFLER COVER
€ 4.50
20
1478543400
ref: 20
14785-15500
CLAMP,MUFFLER COVER
€ 6.00
21
0211205165
ref: 21
02112-05164
SCREW
€ 2.00
21
0211205165
ref: 21
02112-05164
SCREW
€ 2.00
