WIRING HARNESS
GS550EF 1984 (E) USA (E03)
Wiring harness diagram GS550EF 1984 (E) USA (E03)

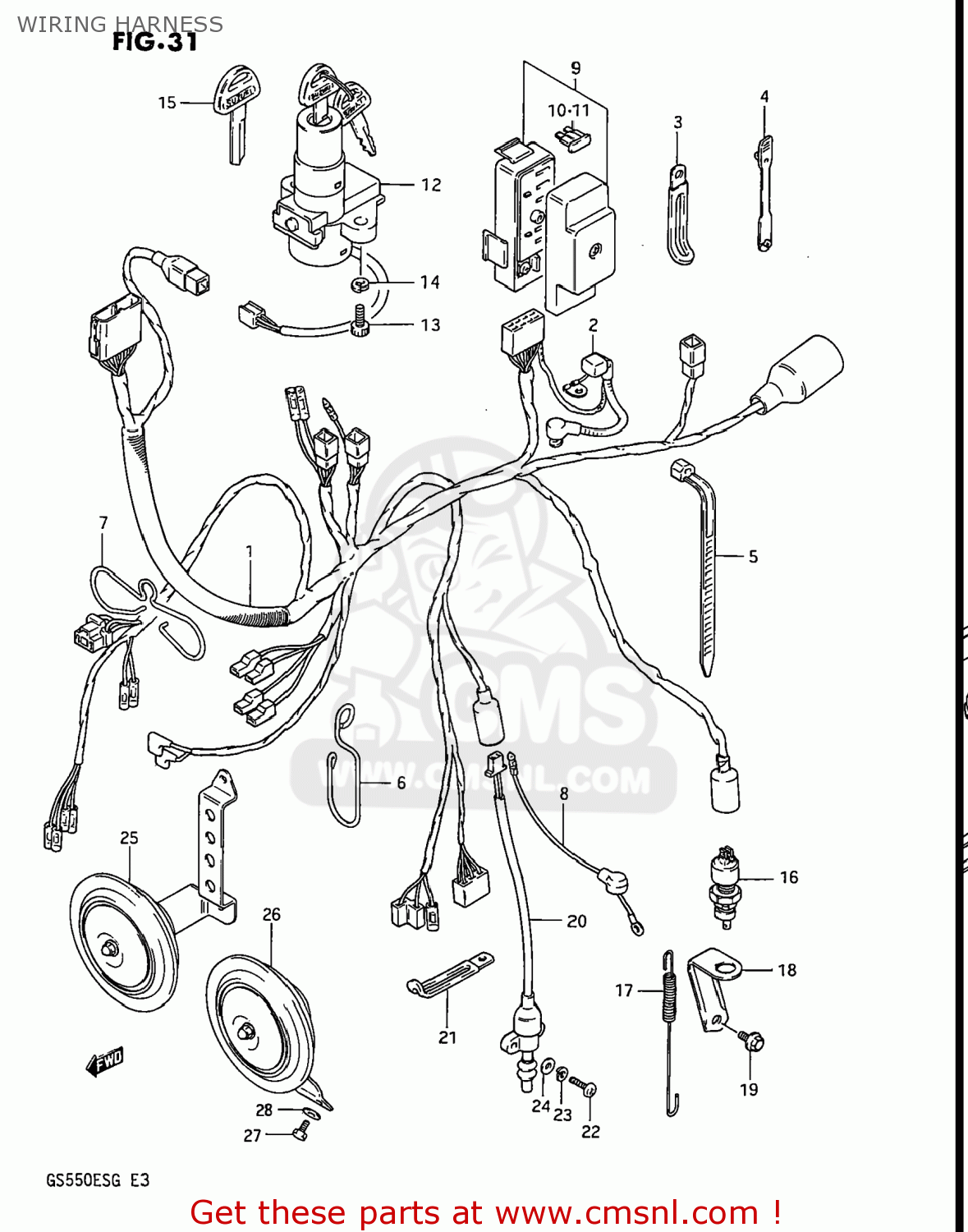

WIRING HARNESS GS550EF 1984 (E) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661043460
ref: 1-1
36610-43461
HARNESS,WIRING
€ 199.50
1-2
3661043410
ref: 1-2
HARNESS,WIRING
€ 0.00
2
3362443500
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 3.50
3-1
0940406402
ref: 3-1
09404-06432
CLAMP
€ 2.50
3-2
0940406415
ref: 3-2
09404-06433
CLAMP
€ 3.00
4
0940705403
ref: 4
CLAMP,L:88
€ 1.50
5-1
0940711401
ref: 5-1
CLAMP(L:95)
€ 2.50
5-2
0940714403
ref: 5-2
CLAMP(L:125)
€ 2.50
5-3
0940718402
ref: 5-3
CLAMP(L:165)
€ 2.50
5-4
0940725401
ref: 5-4
CLAMP(L:235)
€ 4.00
6
3661849302
ref: 6
GUIDE,WIRING HARNESS
€ 4.50
7
3661843400
ref: 7
BOOT,WIRING HARNESS
€ 0.00
8
3685143410
ref: 8
36851-13A00
WIRE
€ 3.00
9
3674043401
ref: 9
FUSE BOX ASSY
€ 61.00
10
0948110101
ref: 10
FUSE(10A)
€ 2.50
11
0948115101
ref: 11
FUSE(15A)
€ 1.50
12-1
3710000A52
ref: 12-1
IGNITION SWITCH/STEERING LOCK
€ 93.50
12-2
3710000A01
ref: 12-2
IGNITION SWITCH/STEERING LOCK
€ 122.50
13
3715247011
ref: 13
07130-0616B
BOLT
€ 3.00
14
0832121067
ref: 14
08321-01067
WASHER,LOCK
€ 2.50
15
3714647010
ref: 15
KEY,BLANK
€ 15.00
16
3774007900
ref: 16
37740-24A00
SWITCH ASSEMBLY,STOP LAMP
€ 20.50
17
0944306005
ref: 17
SPRING
€ 6.00
18
4325143400
ref: 18
BRACKET,BRAKE LAMP SWITCH
€ 0.00
19
0151706108
ref: 19
01550-06107
BOLT
€ 2.50
20
3784031302
ref: 20
SWITCH ASSEMBLY,SIDE STAND
€ 58.50
21
0940406415
ref: 21
09404-06433
CLAMP
€ 3.00
22
0211205205
ref: 22
02112-0520B
SCREW 5X20
€ 2.50
23
0832121055
ref: 23
08321-0105A
WASHER,LOCK
€ 3.00
24
0832221055
ref: 24
08322-0105A
WASHER,5MM
€ 2.50
25
3850043450
ref: 25
HORN ASSEMBLY
€ 60.00
26
3850043400
ref: 26
HORN ASSEMBLY
€ 47.00
27
0110706126
ref: 27
01500-0612A
BOLT
€ 2.00
28
0832121066
ref: 28
08321-0106A
WASHER,LOCK
€ 2.00
