AIR CLEANER
GS550ES3 1985 (F) USA (E03)

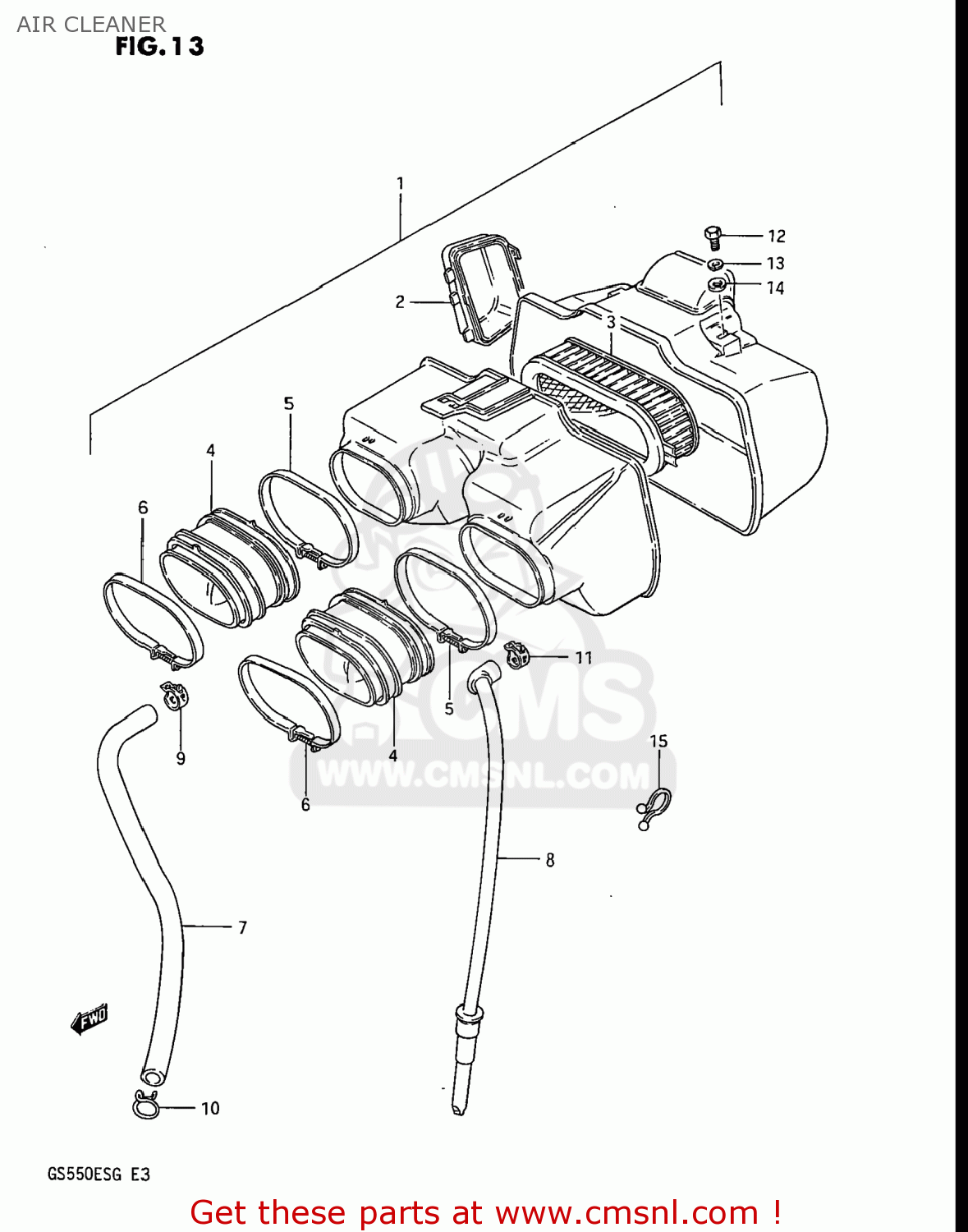

Air cleaner diagram GS550ES3 1985 (F) USA (E03)
AIR CLEANER GS550ES3 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370043413
ref: 1
CLEANER ASSEMBLY,AIR
€ 195.00
2
1374043400
ref: 2
CAP,AIR CLEANER
€ 14.50
3
1378043400
ref: 3
FILTER,AIR CLEANER
€ 34.00
4
1388143402
ref: 4
TUBE,AIR CLEANER OUTLET
€ 27.00
5
1382743401
ref: 5
CLAMP,AIR CLEANER
€ 10.00
6
1382643401
ref: 6
CLAMP,CARBURETOR SIDE
€ 10.00
7
1385343400
ref: 7
TUBE,BREATHER
€ 13.50
8
1387021351
ref: 8
13870-21458
DRAIN TUBE
€ 23.50
9
1382443400
ref: 9
09401-14404
CLIP
€ 2.00
10
1382800020
ref: 10
09401-14401
CLIP,BREATHER TUBE
€ 2.00
11
1382543400
ref: 11
09401-13417
CLIP
€ 2.50
12
0110706168
ref: 12
01500-06167
BOLT, UPPER
€ 3.00
13
0832121068
ref: 13
08321-01067
LOCK WASHER
€ 2.50
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
15
0940800021
ref: 15
CLIP(ID:16)
€ 1.50
