Buy Suzuki GS Parts Online


SPEEDOMETER - TACHOMETER (GS550EF/EG)

GS550ES3 1985 (F) USA (E03)

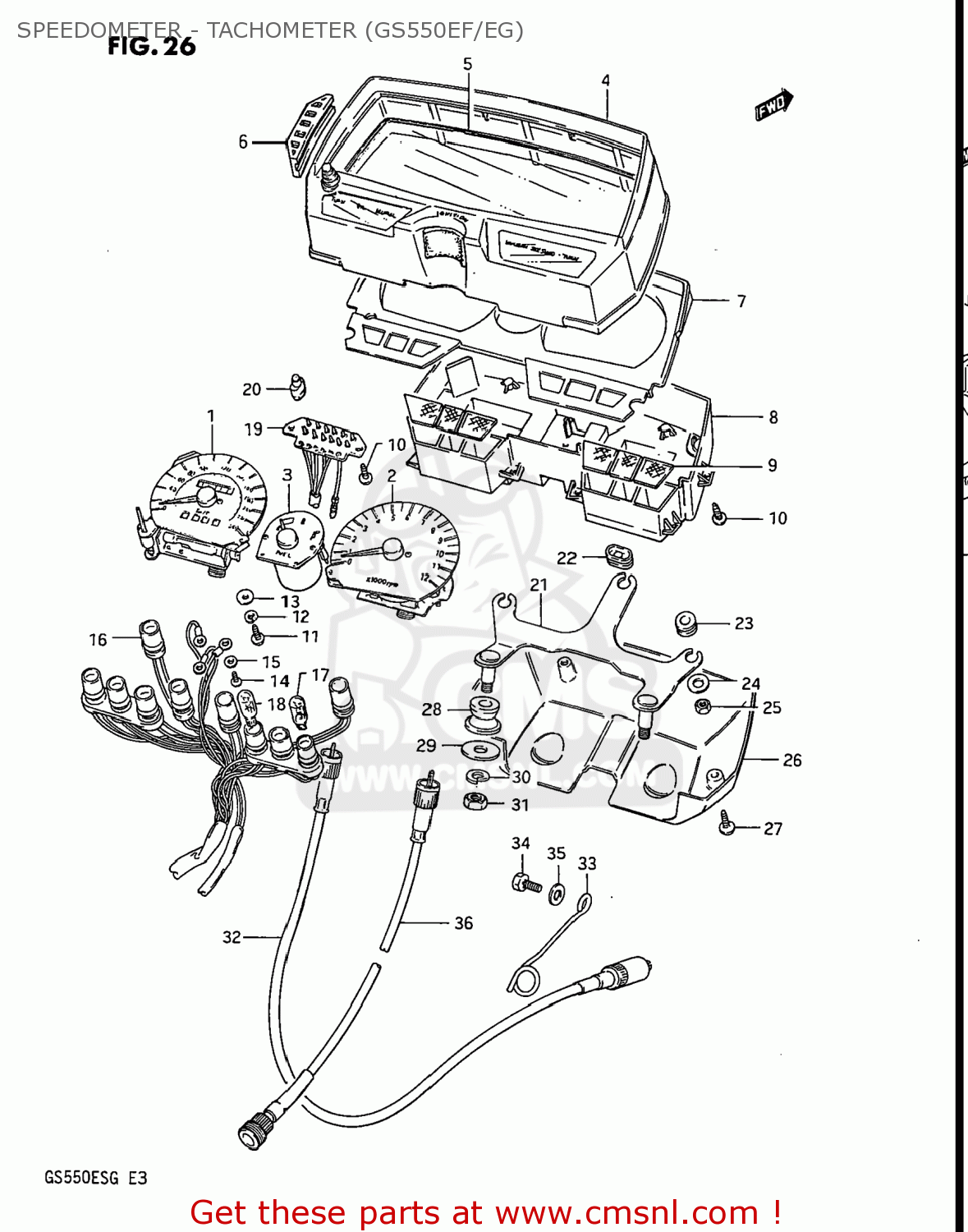

Speedometer - tachometer (gs550ef/eg) diagram GS550ES3 1985 (F) USA (E03)

SPEEDOMETER - TACHOMETER (GS550EF/EG) GS550ES3 1985 (F) USA (E03)
SPEEDOMETER - TACHOMETER (GS550EF/EG) GS550ES3 1985 (F) USA (E03)
SPEEDOMETER - TACHOMETER (GS550EF/EG) GS550ES3 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3412043431
ref: 1
METER,SPEEDOMETER (KM/MPH)
€ 189.00
2
3422043482
ref: 2
METER,TACHOMETER
3422043482
€ 209.50
3
3432043410
ref: 3
METER,FUEL
3432043410
€ 78.50
4
3415043410
ref: 4
HOOD,METER
3415043410
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
3411243410
€ 36.50
6
3418943410
ref: 6
CUSHION,METER CASE
€ 12.50
7
3415343410
ref: 7
PLATE,METER WINDOW
3415343410
€ 17.50
8
3411143410
ref: 8
CASE,METER,INNER
3411143410
€ 64.00
9
3630043810
ref: 9
LENS SET,PILOT
€ 24.00
10
3645634510
ref: 10
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
11
0211203108
ref: 11
02112-03107
SCREW
0211203108
€ 1.50
12
0832121038
ref: 12
09162-03001
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
08322-01037
WASHER
0832221038
€ 2.00
14
0211203068
ref: 14
02112-0306B
SCREW
0211203068
€ 2.00
15
0832221038
ref: 15
08322-01037
WASHER
0832221038
€ 2.00
16
3417043410
ref: 16
SOCKET
€ 95.50
17
0947112082
ref: 17
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
18
0947112077
ref: 18
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
19
3645343410
ref: 19
SOCKET,GEAR INDICATOR
3645343410
€ 30.00
20
0947112071
ref: 20
BULB(14V1.12W)
0947112071
€ 5.00
21
3495043410
ref: 21
BRACKET,METER
3495043410
€ 17.00
22
3499545720
ref: 22
CUSHION,METER
€ 3.00
23
3499643410
ref: 23
CUSHION,METER
3499643410
€ 3.00
24
3418130520
ref: 24
09160-05037
WASHER,METER
3418130520
€ 1.50
25
0831022058
ref: 25
08310-00057
NUT
€ 2.50
26
3419343410
ref: 26
COVER,METER,UNDER
3419343410
€ 59.00
27
0311204125
ref: 27
03111-0412A
SCREW
0311204125
€ 1.50
28
3495631001
ref: 28
CUSHION,METER BRACKET
3495631001
€ 4.50
29
0916008057
ref: 29
09160-08135
WASHER (8.5X20X1.6)
0916008057
€ 2.00
30
0832121084
ref: 30
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
31
0831011085
ref: 31
08310-0008A
NUT
€ 1.50
32
3491043410
ref: 32
34910-09D10
CABLE ASSEMBLY,SPEEDOMETER
3491043410
€ 65.00
33
3493845100
ref: 33
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
34
0110706168
ref: 34
01500-06167
BOLT, UPPER
€ 3.00
35
0832221068
ref: 35
08322-01067
WASHER
0832221068
€ 2.00
36
3494044311
ref: 36
CABLE ASSY,TACHOMETER
3494044311
€ 13.50
