CUSHION LEVER
GS550ES3 1985 (F) USA (E03)

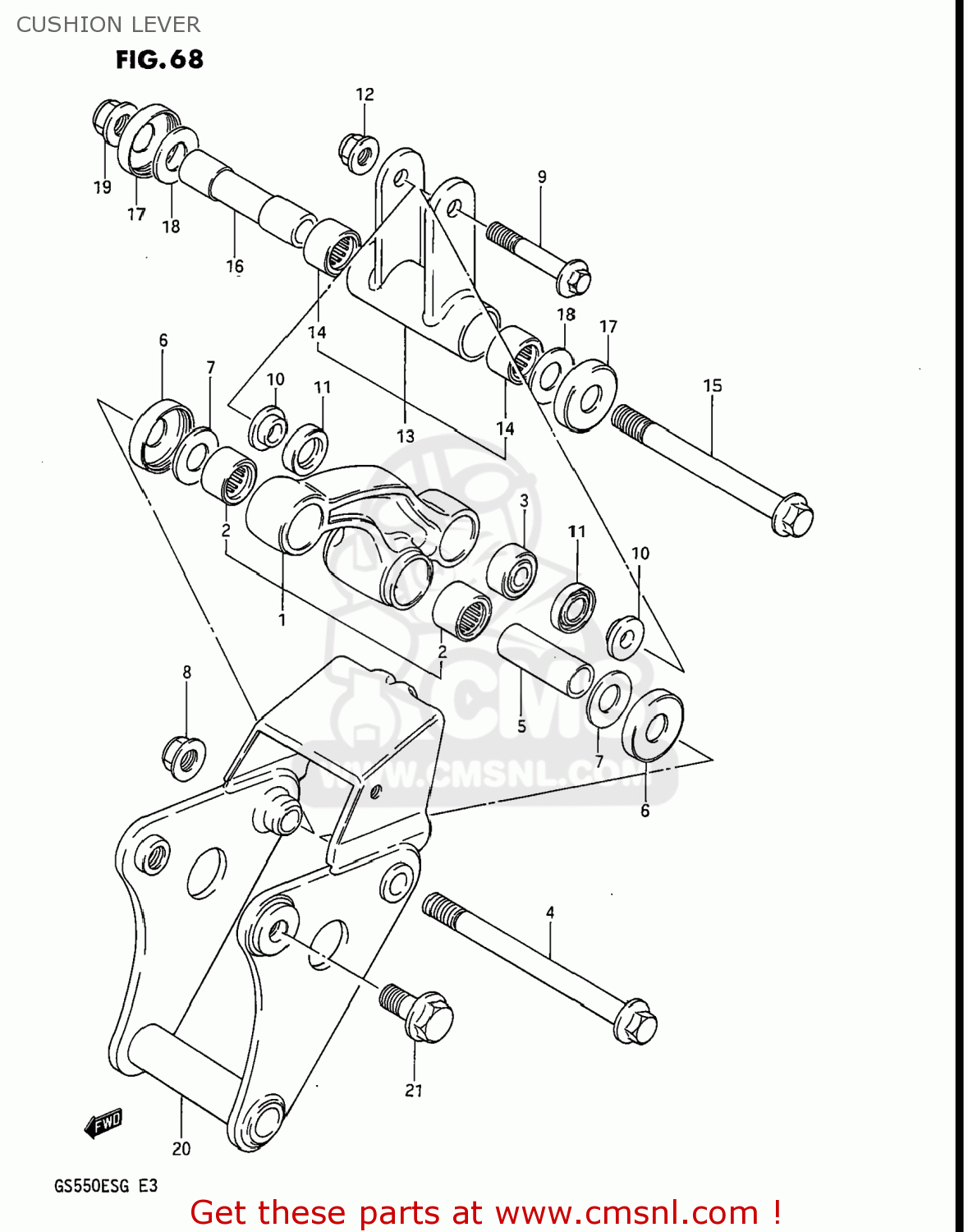

Cushion lever diagram GS550ES3 1985 (F) USA (E03)
CUSHION LEVER GS550ES3 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6260043810737
ref: 1
LEVER SET,REAR CUSHION
€ 251.50
2
0926317011
ref: 2
09263-17027
ROLLER BEARING (17X24X2
€ 13.50
3
0926910003
ref: 3
BEARING(10X24X15)
€ 31.00
4
6262143400
ref: 4
SHAFT,REAR CUSHION LEVER
€ 15.50
5
6262343400
ref: 5
SPACER,REAR CUSHION LEVER
€ 12.50
6
6126241500
ref: 6
COVER,RR SWGARM DUST SEAL
€ 7.50
7
0821112281
ref: 7
WASHER
€ 2.00
8
0831931128
ref: 8
08319-3112A
NUT 12MM
€ 4.00
9
0910310030
ref: 9
BOLT(10X52)
€ 8.50
10
6268443401
ref: 10
SPACER
€ 7.00
11
6268343400
ref: 11
DUST SEAL,RR CUSHION LEVER RR
€ 4.00
12
0831931108
ref: 12
NUT
€ 3.00
13
6260043830737
ref: 13
LEVER SET,REAR CUSHION
€ 40.50
13
6260043830737
ref: 13
LEVER SET,REAR CUSHION
€ 40.50
14
0926317011
ref: 14
09263-17027
ROLLER BEARING (17X24X2
€ 13.50
15
6231343401
ref: 15
BOLT,REAR CUSHION ROD
€ 12.50
16
6231643400
ref: 16
SPACER,REAR CUSHION ROD
€ 18.00
17
6126241500
ref: 17
COVER,RR SWGARM DUST SEAL
€ 7.50
18
0821112281
ref: 18
WASHER
€ 2.00
19
0831931128
ref: 19
08319-3112A
NUT 12MM
€ 4.00
20
6269043401
ref: 20
HOLDER
€ 0.00
21
0910312005
ref: 21
BOLT(12X23)
€ 5.50
