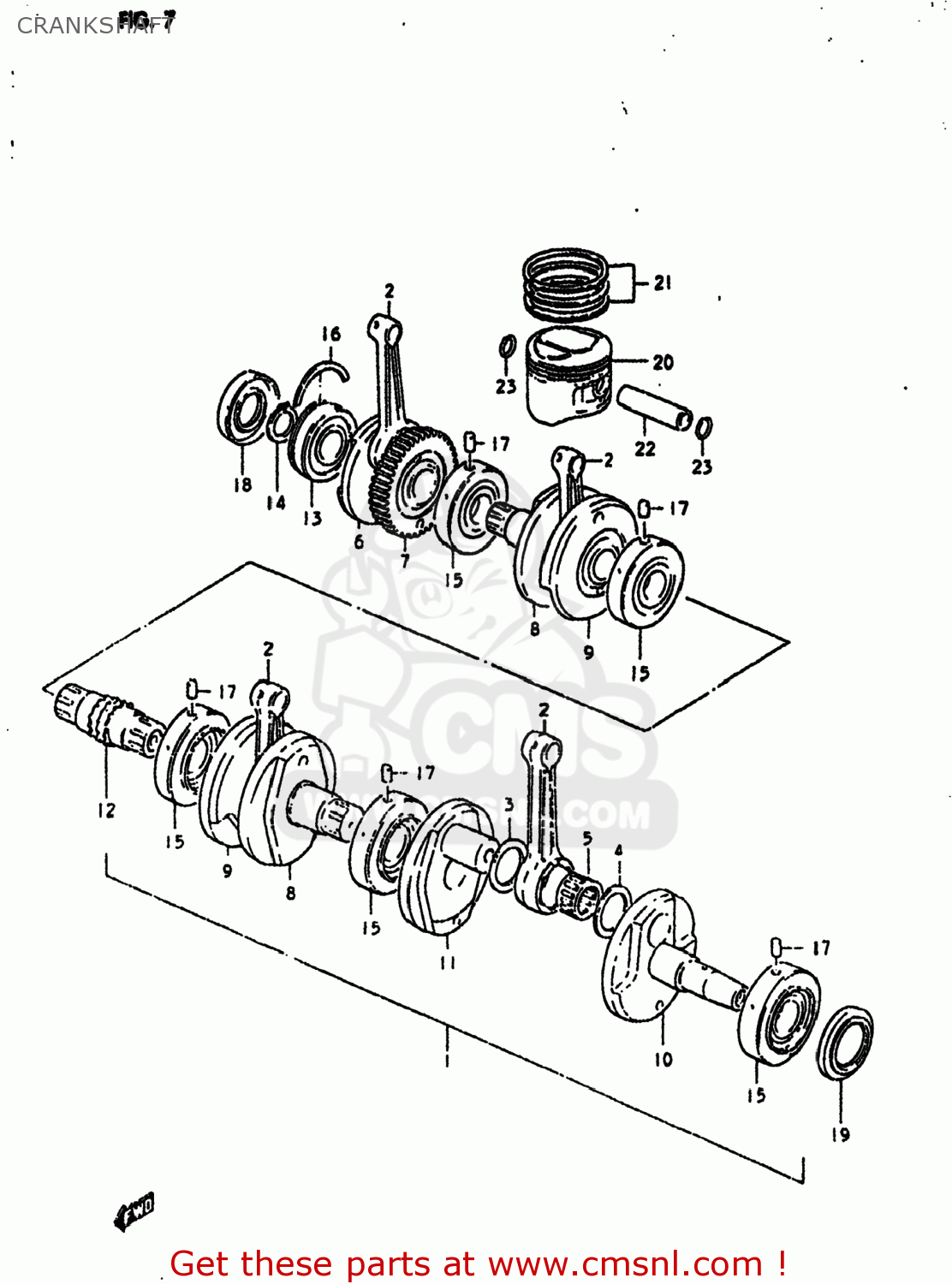

CRANKSHAFT

ref

part #

description

quantity

1

1220047011
ref: 1
12200-47014

CRANKSHAFT ASSEMBLY

€ 1,265.50

2

1216147001
ref: 2

ROD,CONNECTING

€ 65.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328006
ref: 5

ROLLER BEARING (28X38X16.8)

€ 22.00

6

1222047001
ref: 6

CRANKSHAFT

€ 99.50

7

1223047011
ref: 7
12230-34500

WEB,CRANK

€ 80.00

8

1224147002
ref: 8
12241-34500

CRANKSHAFT

€ 72.50

9

1225047001
ref: 9
12250-34500

WEB,CRANK,MIDDLE

€ 113.50

10

1226147001
ref: 10
12261-34500

CRANKSHAFT,LEFT

€ 113.50

11

1229047001
ref: 11
12290-34500

WEB,CRANK,LEFT

€ 148.50

12

1228147001
ref: 12
12281-34500

SHAFT,TIMING CHAIN DRIVE

€ 75.50

13

0926230033
ref: 13

BEARING(30X72X19)

€ 47.00

14

0833111308
ref: 14
08331-3130A

CIRCLIP,30MM

€ 3.00

15

0926432002
ref: 15
09264-32009

BEARING

€ 138.00

16

0939072004
ref: 16

C RING

€ 3.00

17

0422107129
ref: 17

PIN

€ 1.50

18

0928330021
ref: 18

SEAL,OIL(30X72X11)

€ 22.00

19

0928948001
ref: 19
09289-48002

OIL SEAL

€ 12.00

20-1

1211147001
ref: 20-1

PISTON

€ 47.50

20-2

1211147001050
ref: 20-2
12103-47830-050

PISTON

€ 84.00

20-3

1211147001100
ref: 20-3
12103-47830-100

PISTON

€ 99.50

21-1

1214047031
ref: 21-1

RING SET,PISTON

€ 61.50

21-2

1214047031050
ref: 21-2

RING SET,PISTON (OS:0.5)

€ 41.50

21-3

1214047031100
ref: 21-3

RING SET,PISTON (OS:1.0)

€ 44.50

22

1215108001
ref: 22

PIN,PISTON 16MM

€ 10.00

23

0938116002
ref: 23
09381-16001

CIRCLIP

€ 1.50
