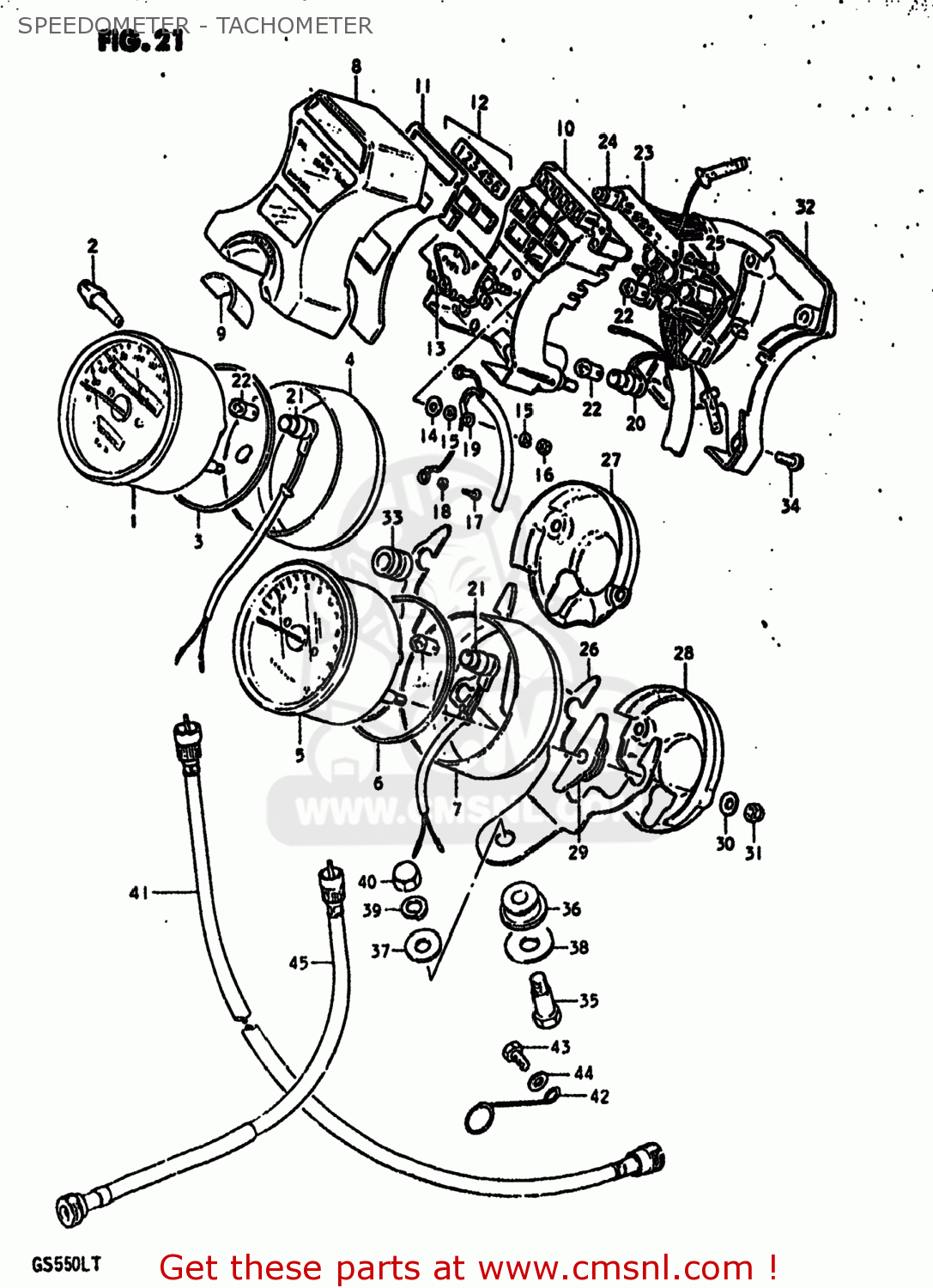

SPEEDOMETER - TACHOMETER - GS550L 1980 (T) USA (E03)

ref

part #

description

quantity

1

3411045230
ref: 1

METER,SPEEDOMETER

€ 323.50

2

3498045020
ref: 2

KNOB

€ 4.50

3

3418945300
ref: 3

CUSHION

€ 10.00

4

3415145300
ref: 4

COVER,SPEEDOMETER

€ 16.00

5

3421047201
ref: 5
34210-45360

TACHOMETER

€ 392.00

6

3418945300
ref: 6

CUSHION

€ 10.00

7

3425145300
ref: 7

COVER,TACHOMETER

€ 12.00

8

3638145300
ref: 8

CASE,PILOT BOX,OUTER

€ 54.50

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10

3638245300
ref: 10
36382-45301

CASE, PILOT BOX INNER

€ 27.00

11

3638645300
ref: 11

PLATE,PILOT BOX

€ 6.50

12

3630045810
ref: 12
36300-45811

LENS SET,PILOT

€ 22.50

13

3432045300
ref: 13
34320-45450

METER,FUEL

€ 85.00

14

0832221048
ref: 14
08322-01047

WASHER

€ 2.00

15

0832121048
ref: 15
08321-0104A

LOCK WASHER

€ 2.00

16

0831032048
ref: 16
08310-00047

NUT

€ 2.00

17

0211203088
ref: 17
02112-03087

SCREW

€ 1.50

18

0832121038
ref: 18
09162-03001

LOCK WASHER

€ 1.50

19

3437845300
ref: 19
34378-45410

LEAD WIRE, FUELMETER

€ 23.00

20

3632545300
ref: 20
36325-45302

SOCKET

€ 61.00

21

3417345300
ref: 21
34173-45302

SOCKET,METER

€ 15.50

22

0947112001
ref: 22

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

23

3645347200
ref: 23

INDICATOR ASSEMBLY,GEAR POSITION

€ 106.50

24

0947112071
ref: 24

BULB(14V1.12W)

€ 5.00

25

3645745100
ref: 25

SCREW

€ 2.00

26

3495045300
ref: 26

BRACKET,COMBINATION METER

€ 14.00

27

3419345300
ref: 27

ORNAMENT,SPEEDOMETER

€ 35.50

28

3429345300
ref: 28

COVER,TACHOMETER

€ 35.50

29

3419145300
ref: 29

CUSHION,METER

€ 3.50

30

0832221058
ref: 30
08322-01057

WASHER

€ 2.50

31

0831311057
ref: 31
08313-1005A

NUT

€ 1.50

32

3638345300
ref: 32

COVER,PILOT BOX,UNDER

€ 41.50

33

3638445300
ref: 33

CUSHION,PILOT BOX

€ 3.50

34

3638745300
ref: 34

SCREW,PILOT BOX

€ 2.00

35

0911108031
ref: 35

BOLT(8X31)

€ 4.00

36

3485631000
ref: 36

CUSHION

€ 0.00

37

0916008047
ref: 37
09160-08130

WASHER(8.5X23X1.2)

€ 2.00

38

0916010028
ref: 38
09160-10035

WASHER

€ 2.00

39

0832121088
ref: 39
08321-01087

LOCK WASHER

€ 2.00

40

0831311088
ref: 40
08313-10087

NUT

€ 2.50

41

3491045230
ref: 41
34910-45231

CABLE ASSEMBLY,SPEEDOMETER

€ 29.00

42

3493837000
ref: 42

GUIDE,SPEEDOMETER CABLE

€ 14.50

43

0110706168
ref: 43
01500-06167

BOLT, UPPER

€ 3.00

44

0832221088
ref: 44
08322-01087

WASHER

€ 2.00

45

3494047030
ref: 45
34940-47033

CABLE ASSEMBLY,TACHOMETER

€ 20.50
