REAR BRAKE HOSE

GS550L 1980 (T) USA (E03)

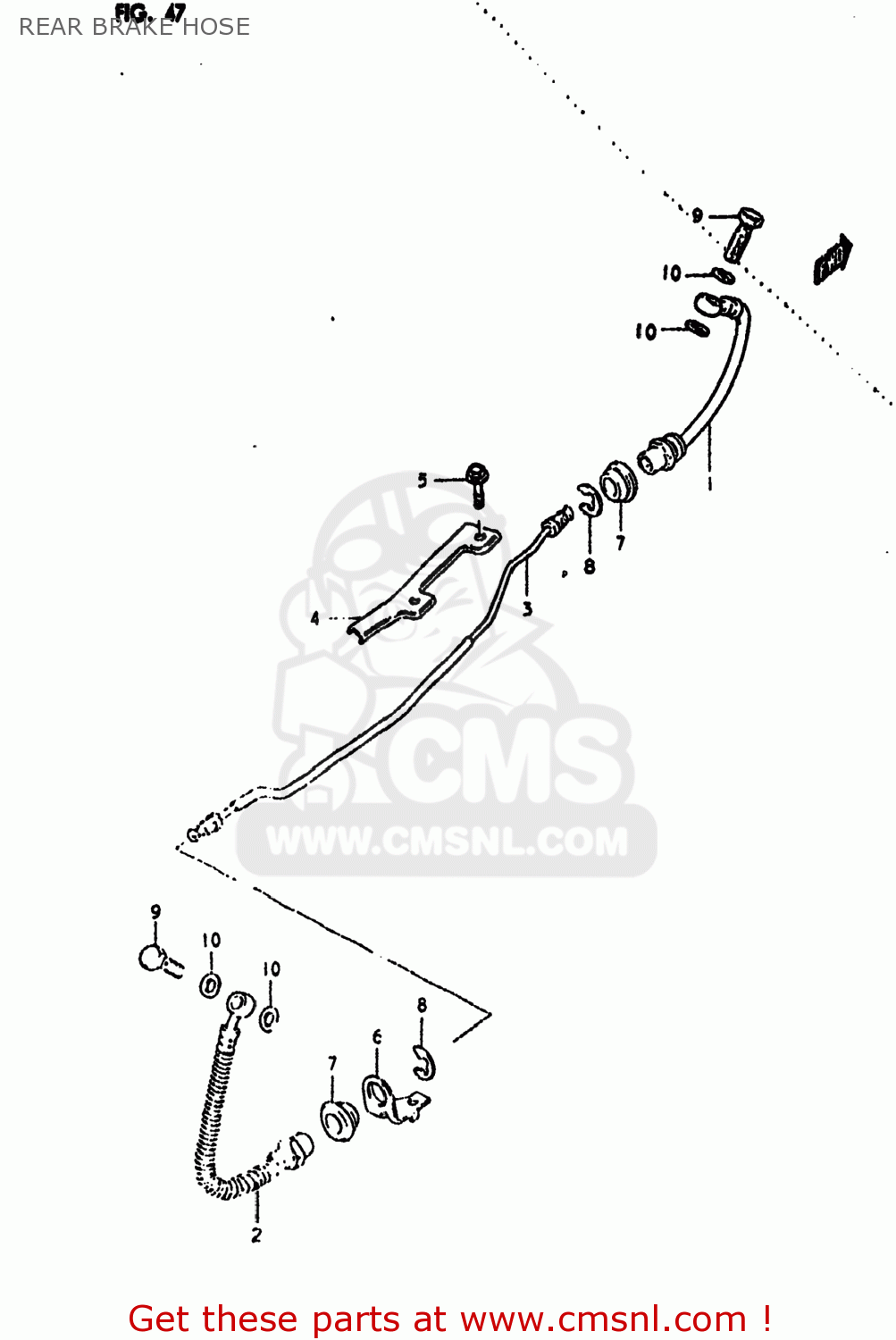

Rear brake hose diagram GS550L 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

6948047001
ref: 1

HOSE,REAR BRAKE NO.1

€ 36.50

6924045000
ref: 2

HOSE,RR BRAKE NO.2

€ 47.00

6925047000
ref: 3

PIPE,REAR BRAKE

€ 19.00

6924545000
ref: 4

COVER,REAR BRAKE PIPE

€ 10.50

0151406085
ref: 5

BOLT

€ 0.00

6924347000
ref: 6

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 7

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0833211098
ref: 8
08332-1109A

E RING

€ 1.50

0936010007
ref: 9
09360-10017

BOLT,UNION

€ 6.50

0916110005
ref: 10
09161-10009

WASHER

€ 2.00
