FRONT CARIPERS (GS750EC

GS750B 1979 (N) USA (E03)

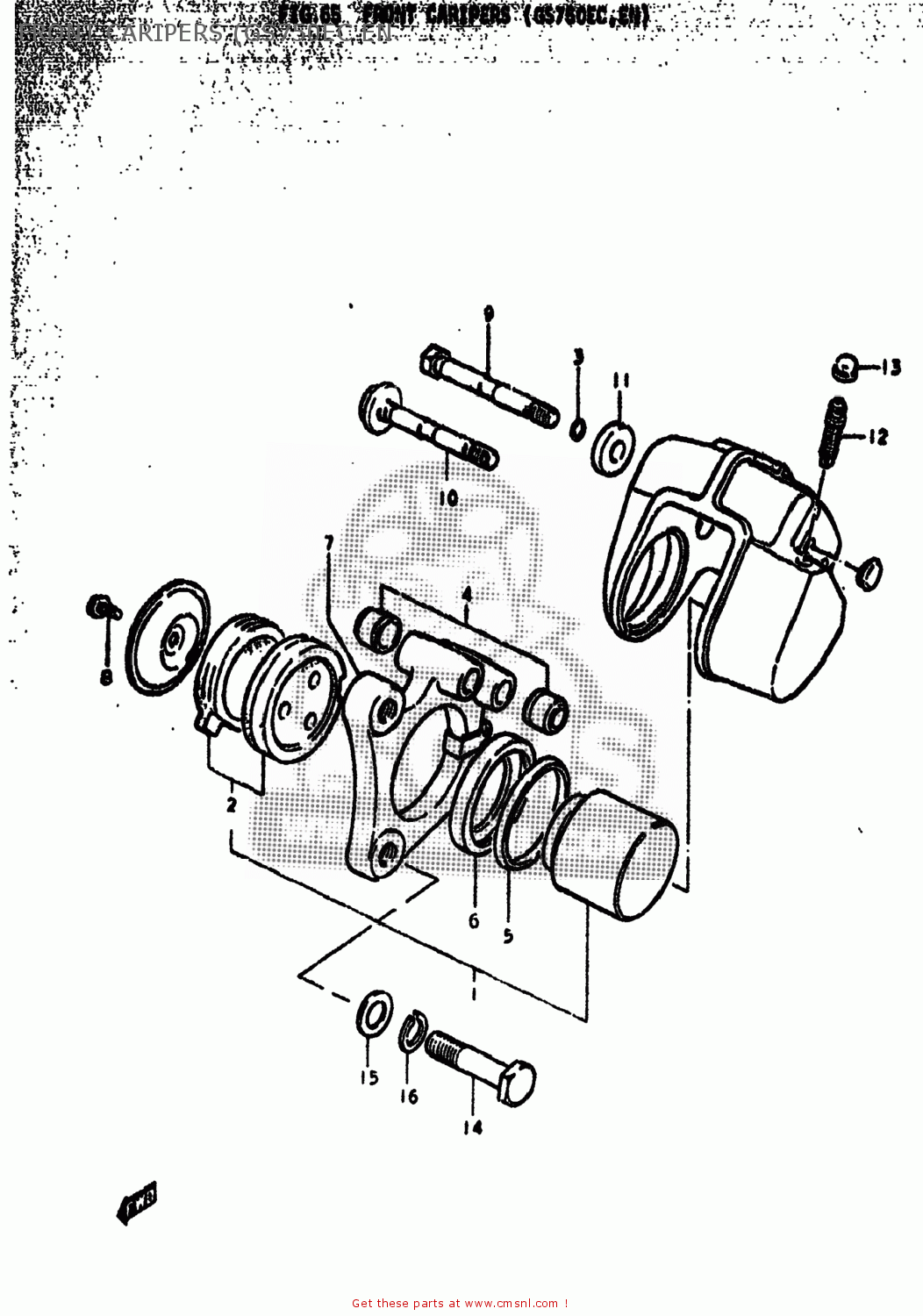

Front caripers (gs750ec diagram GS750B 1979 (N) USA (E03)

FRONT CARIPERS (GS750EC GS750B 1979 (N) USA (E03)
FRONT CARIPERS (GS750EC GS750B 1979 (N) USA (E03)
FRONT CARIPERS (GS750EC GS750B 1979 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
0-1
5910044001
ref: 0-1
59100-44002
CALIPER ASSEMBLY,FRONT,RIGHT
5910044001
€ 312.00
0-2
5910044002
ref: 0-2
CALIPER ASSEMBLY,FRONT,RIGHT
€ 312.00
0-3
5930044001
ref: 0-3
59300-44002
CALIPER ASSEMBLY,FRONT,LEFT
€ 231.50
0-4
5930044002
ref: 0-4
CALIPER ASSEMBLY,FRONT,LEFT
€ 231.50
1
5910044820
ref: 1
59100-44823
PISTON/PAD SET,CALIPER
5910044820
€ 96.50
2
5910045820
ref: 2
59302-45830
59302-45830 (MCA)
5910045820
€ 99.50
3
5911145001
ref: 3
O RING
5911145001
€ 5.00
4
5931245000
ref: 4
COVER,AXLE DUST
5931245000
€ 17.00
5
5910718410
ref: 5
69107-05CF0
SEAL,PISTON
5910718410
€ 17.00
6
5930845000
ref: 6
BOOT,PISTON
5930845000
€ 15.50
7-1
5915044001
ref: 7-1
HOLDER, CARIPERS RH
€ 54.00
7-2
5915044002
ref: 7-2
59150-44003
HOLDER, CARIPERS RH
€ 0.00
7-3
5935045001
ref: 7-3
HOLDER,CALIPERS
€ 0.00
7-4
5935044002
ref: 7-4
59350-44003
HOLDER, CARIPERS LH
€ 0.00
8
0211206128
ref: 8
02112-06127
SCREW 6X12
0211206128
€ 2.00
9
5930545001
ref: 9
AXLE,CALIPER
5930545001
€ 15.00
10
5930545002
ref: 10
AXLE,CALIPER
5930545002
€ 31.50
11
5937145000
ref: 11
WASHER,AXLE
5937145000
€ 6.00
12
5912118410
ref: 12
BLEEDER
5912118410
€ 8.00
13
5912218410
ref: 13
55156-66310
CAP,BREATHER
5912218410
€ 6.00
14
0910410007
ref: 14
09104-10029
BOLT
0910410007
€ 3.50
15
0832221108
ref: 15
08322-01107
WASHER
0832221108
€ 2.50
16
0832121108
ref: 16
08321-01107
LOCK WASHER
0832121108
€ 2.00
