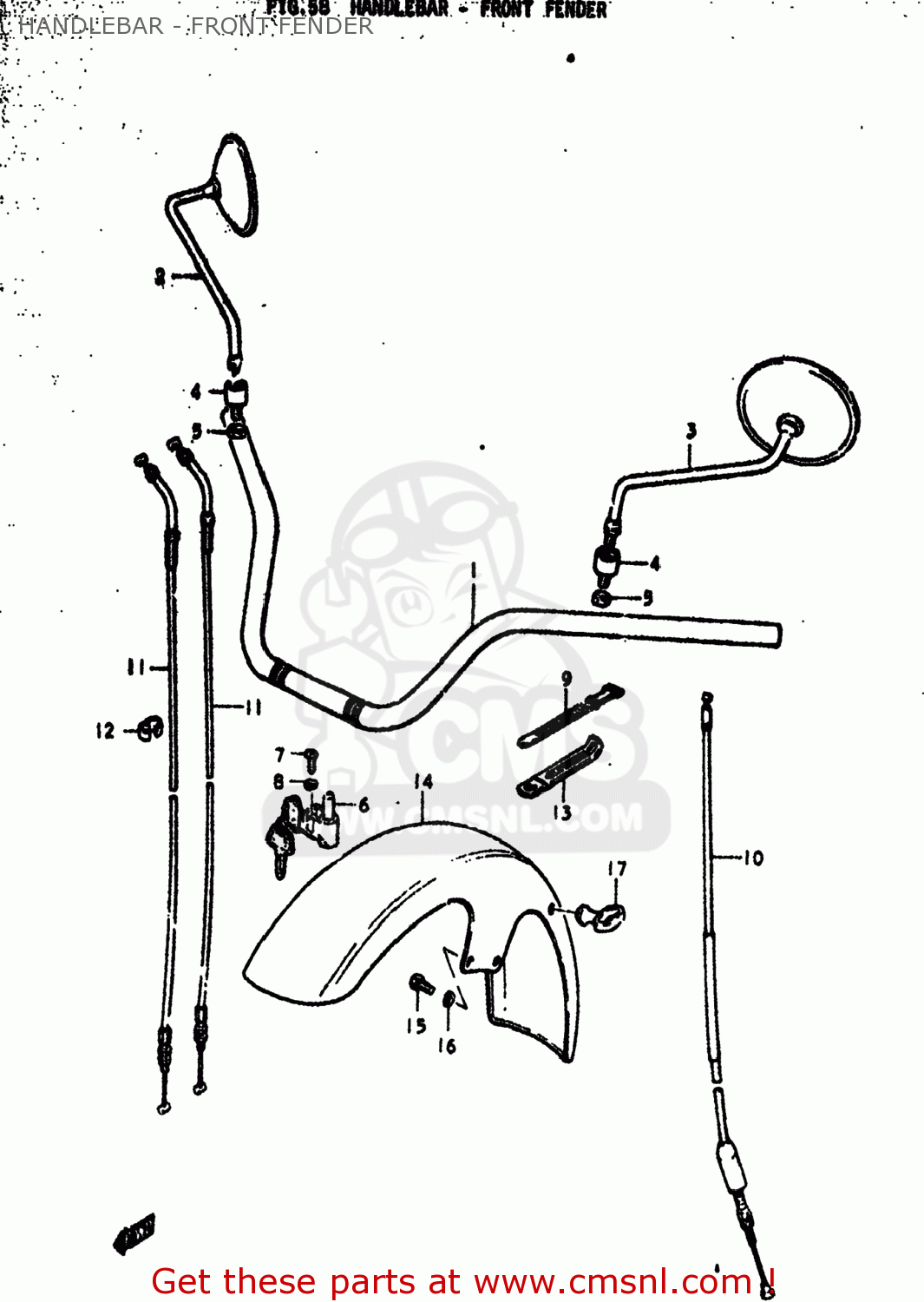

HANDLEBAR - FRONT FENDER - GS750B 1979 (N) USA (E03)

ref

part #

description

quantity

1-1

5611137000
ref: 1-1
56111-45031

HANDLEBAR,RIGHT

€ 70.00

1-2

5611145030
ref: 1-2
56111-45031

HANDLEBAR,RIGHT

€ 70.00

1-3

5611145060
ref: 1-3

HANDLEBAR

€ 38.50

2-1

5650045010
ref: 2-1
56500-45013

MIRROR ASSEMBLY,RIGHT

€ 72.50

2-2

5650045012
ref: 2-2
56500-45013

MIRROR ASSEMBLY,RIGHT

€ 72.50

3-1

5660045010
ref: 3-1
56600-45013

MIRROR ASSEMBLY,LEFT

€ 73.00

3-2

5660045012
ref: 3-2
56600-45013

MIRROR ASSEMBLY,LEFT

€ 73.00

4

5670031001
ref: 4
56700-45400

CUSHION,REAR VIEW MIRROR

€ 18.00

5

0831022108
ref: 5
08310-00107

NUT

€ 2.50

6

5190033810
ref: 6
51900-33811

LOCK ASSEMBLY,STEERING

€ 32.50

7

0211105257
ref: 7
02112-05257

SCREW

€ 2.00

8

0832121058
ref: 8
08321-0105A

LOCK WASHER

€ 2.00

9

0940712402
ref: 9

CLAMP(L:120)

€ 3.00

10-1

5820045610
ref: 10-1
58200-45200

CABLE ASSEMBLY,CLUTCH

€ 31.50

10-2

5820045611
ref: 10-2
58200-45200

CABLE ASSEMBLY,CLUTCH

€ 31.50

11-1

5830045610
ref: 11-1

CABLE ASSY,THROTTLE

€ 40.00

11-2

5830045030
ref: 11-2
58300-45X02

CABLE ASSEMBLY,THROTTLE

€ 44.50

12

0940800002
ref: 12

CLIP

€ 2.00

13

0940406403
ref: 13
09404-06432

CLAMP

€ 2.50

14-1

5311045000
ref: 14-1
53110-45602

FENDER,FRONT

€ 335.50

14-2

5311045002
ref: 14-2
53110-45602

FENDER,FR

€ 335.50

14-3

5311045602
ref: 14-3

FENDER ASSY,FR

€ 335.50

15

0110708168
ref: 15
01500-0816B

BOLT

€ 2.00

16

0832121088
ref: 16
08321-01087

LOCK WASHER

€ 2.00

17-1

5862121202
ref: 17-1
58621-21204

GUIDE,CABLE

€ 7.50

17-2

5862121203
ref: 17-2
58621-21204

GUIDE,CABLE

€ 7.50

HANDLEBAR - FRONT FENDER

all assemblies
