CYLINDER

GS750EC 1977 (B) USA (E03)

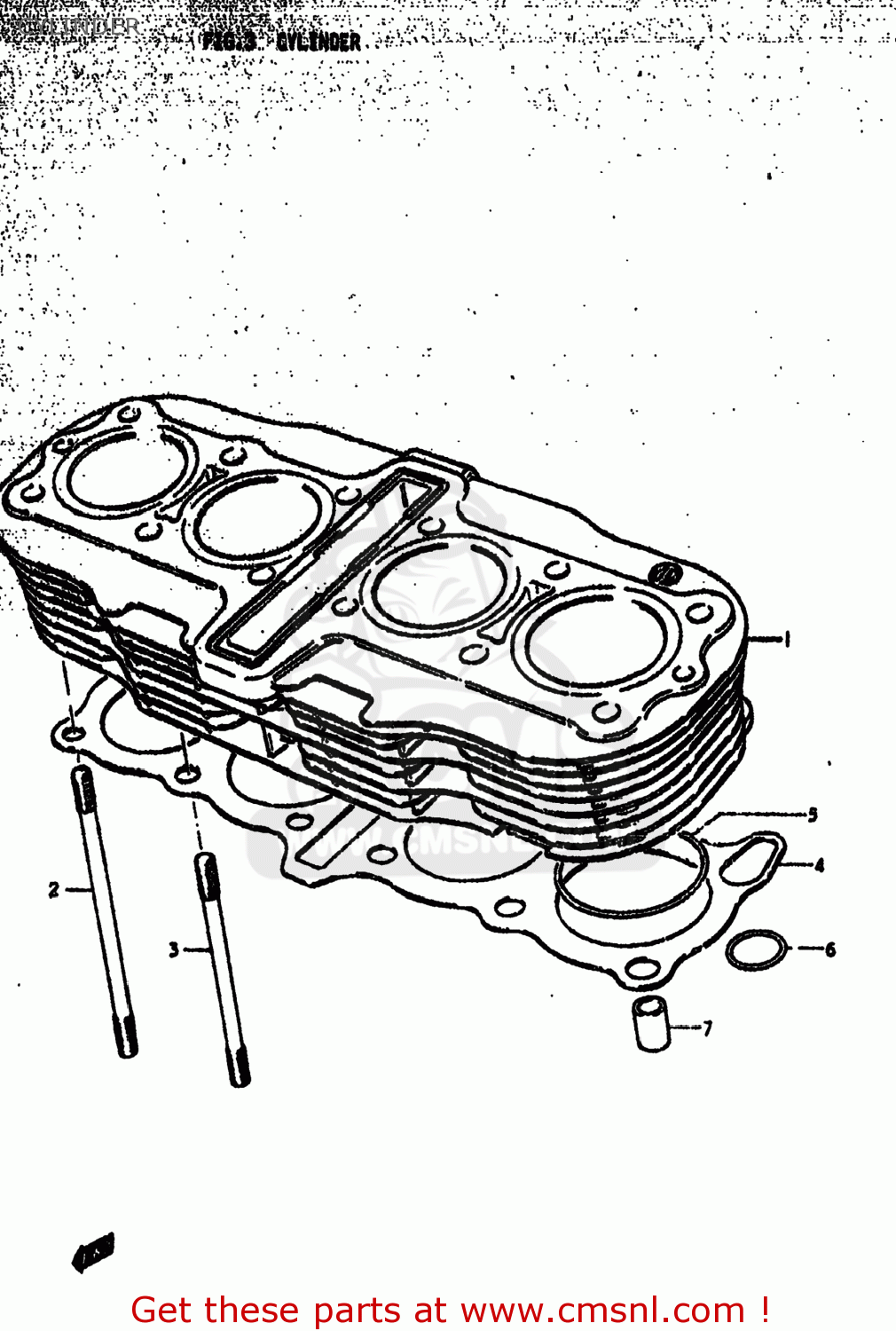

Cylinder diagram GS750EC 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1121045001
ref: 1-1
11210-45003

CYLINDER

€ 492.50

1-2

1121045002
ref: 1-2
11210-45003

CYLINDER

€ 492.50

2-1

0910810019
ref: 2-1
09108-10027

STUD

€ 12.00

2-2

0910810027
ref: 2-2

BOLT,STUD

€ 12.00

3-1

0910810020
ref: 3-1
09108-10112

STUD

€ 9.00

3-2

0910810028
ref: 3-2
09108-10112

STUD

€ 9.00

4-1

1124145080
ref: 4-1
11241-45110-H17

GASKET,CYLINDER (MCA)

€ 12.50

4-2

1124145082
ref: 4-2
11241-45110-H17

GASKET,CYLINDER (MCA)

€ 12.50

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

0920613001
ref: 7
04211-13189

PIN

€ 2.50
