RH HANDLE SWITCH (GS750B)
GS750EC 1977 (B) USA (E03)

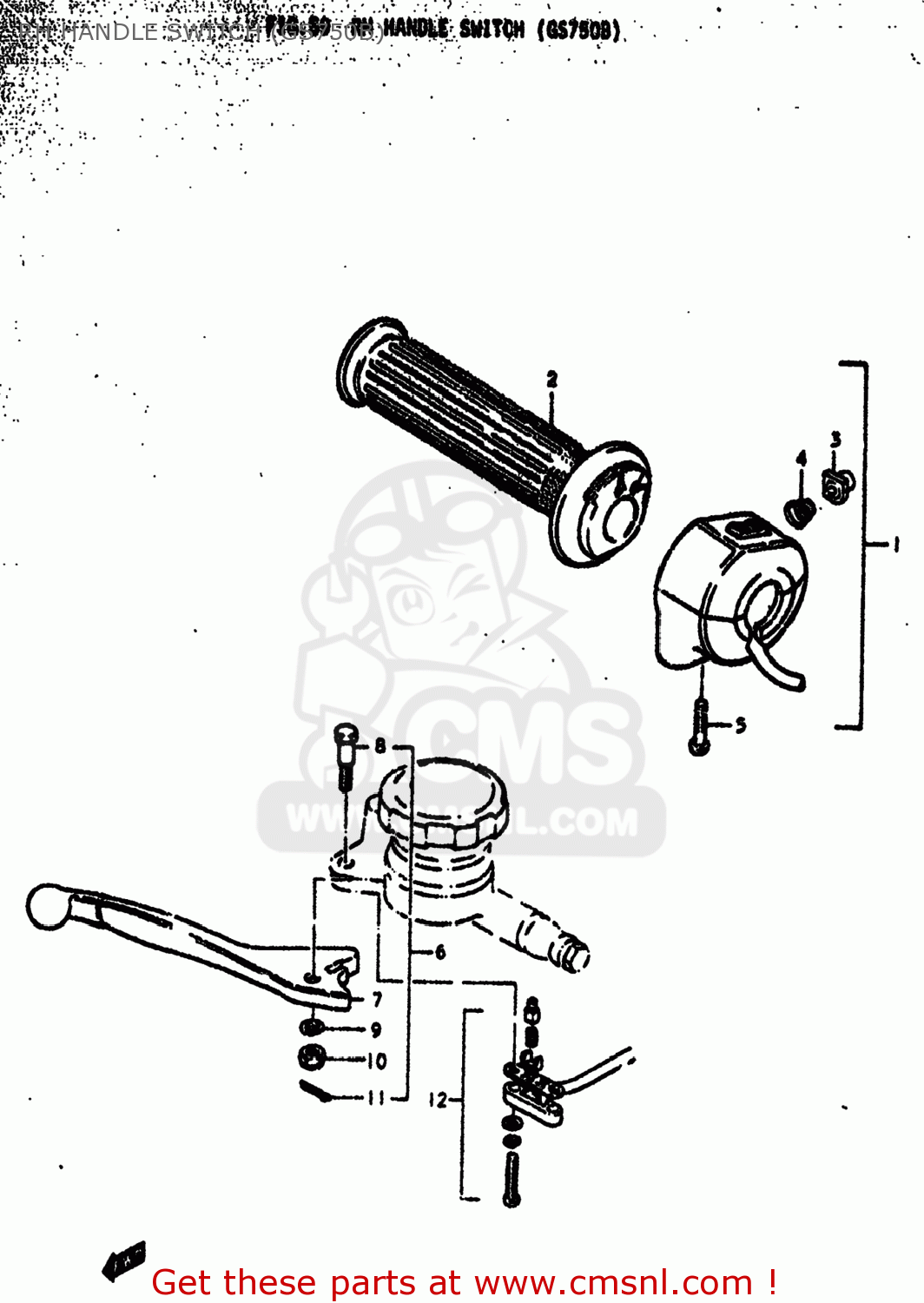

Rh handle switch (gs750b) diagram GS750EC 1977 (B) USA (E03)
RH HANDLE SWITCH (GS750B) GS750EC 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5710045600
ref: 1
GRIP ASSEMBLY,THROTTLE
€ 120.00
2
5711045600
ref: 2
57110-34601
GRIP,THROTTLE
€ 27.50
3
5737001311
ref: 3
BUTTON
€ 4.00
4
5738201311
ref: 4
SPRING
€ 3.00
5
0211105257
ref: 5
02112-05257
SCREW
€ 2.00
6
5730045010
ref: 6
LEVER ASSEMBLY,BRAKE
€ 58.50
7
5742045010
ref: 7
LEVER,BRAKE
€ 30.50
8
5743118620
ref: 8
57431-18621
BOLT,LEVER
€ 8.00
9
0832121068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
5743311010
ref: 10
NUT,LEVER FITTNG
€ 5.50
11
0411116158
ref: 11
04111-1620A
COTTER PIN
€ 2.00
12
5746033700
ref: 12
SWITCH ASSY,STOP
€ 38.50
