CRANKCASE
GS750N 1977 (B) USA (E03)

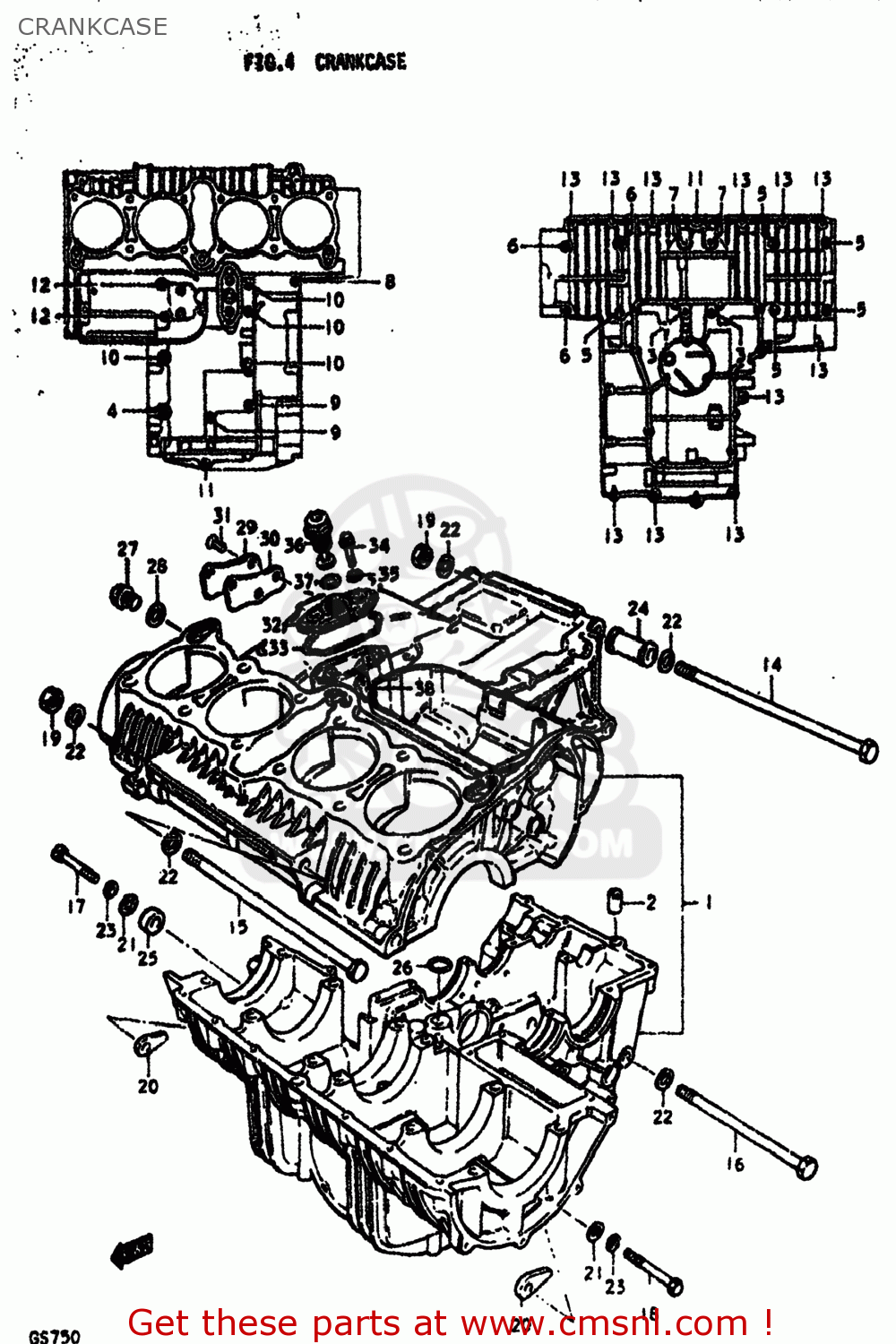

Crankcase diagram GS750N 1977 (B) USA (E03)
CRANKCASE GS750N 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130045810
ref: 1
CRANKCASE SET
€ 723.50
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308020
ref: 3
09103-08106
BOLT
€ 8.00
4
0151708958
ref: 4
01550-08957
BOLT (8X95)
€ 3.50
5
0151708908
ref: 5
01550-08907
BOLT 8X90
€ 3.50
6
0151708658
ref: 6
01550-08657
BOLT 8X65
€ 3.00
7
0151708608
ref: 7
01550-08607
BOLT
€ 3.50
8
0910306020
ref: 8
09103-06060
BOLT 6X100
€ 2.50
9
0151706908
ref: 9
01550-06907
BOLT (6X90)
€ 2.00
10
0151706808
ref: 10
01550-06807
BOLT (6X80)
€ 3.00
11
0151706558
ref: 11
01550-06557
BOLT
€ 2.50
12
0151706458
ref: 12
01550-06457
BOLT,UNDER
€ 2.50
13
0151706408
ref: 13
01550-06407
BOLT
€ 2.50
14
0910110010
ref: 14
09101-10010-XC0
BOLT 10X250
€ 49.50
15
0910010108
ref: 15
BOLT 10X235
€ 8.50
16-1
0910010092
ref: 16-1
41189-17X00
BOLT 10X160
€ 28.50
16-2
0910010078
ref: 16-2
BOLT(10X165)
€ 10.50
17
0110710658
ref: 17
01500-1065B
BOLT 10X65
€ 4.00
18
0110710558
ref: 18
01500-1055A
BOLT 10X55
€ 3.50
19
0915910011
ref: 19
NUT
€ 3.00
20
0915910020
ref: 20
NUT
€ 7.50
21
0916010005
ref: 21
WASHER(10.5X20X3.2)
€ 2.00
22
0832211108
ref: 22
08322-01107
WASHER
€ 2.50
23
0832121108
ref: 23
08321-01107
LOCK WASHER
€ 2.00
24-1
0918010046
ref: 24-1
11610-44010
SPACER
€ 12.00
24-2
1161045000
ref: 24-2
11610-44010
SPACER,ENGINE MOUNT
€ 12.00
25
0918010051
ref: 25
SPACER (10.2X24X11)
€ 6.00
26
0928013001
ref: 26
O RING(D:3.2,ID:12.9)
€ 4.00
27
0924714012
ref: 27
09247-14026
PLUG (14X12)
€ 3.50
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
29
1139445000
ref: 29
CAP,OIL GALLERY
€ 6.50
30
1149745000
ref: 30
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
31
0212206168
ref: 31
02122-06167
SCREW
€ 2.00
32
1644545000
ref: 32
HOUSING,OIL PRESSURE SWITCH
€ 28.00
33
1644845000
ref: 33
O RING,PRESSURE SWITCH HOUSING
€ 10.50
34
0151706258
ref: 34
01550-06257
BOLT
€ 2.50
35
0916806009
ref: 35
09168-06023
GASKET (NAS)
€ 2.00
36
3782045050
ref: 36
37820-45061
SWITCH ASSEMBLY
€ 30.00
37
0928019001
ref: 37
O RING(D:1.9,ID:18.8)
€ 1.50
38
3127145000
ref: 38
31271-45001
GROMMET,STARTING MOTOR
€ 5.50
