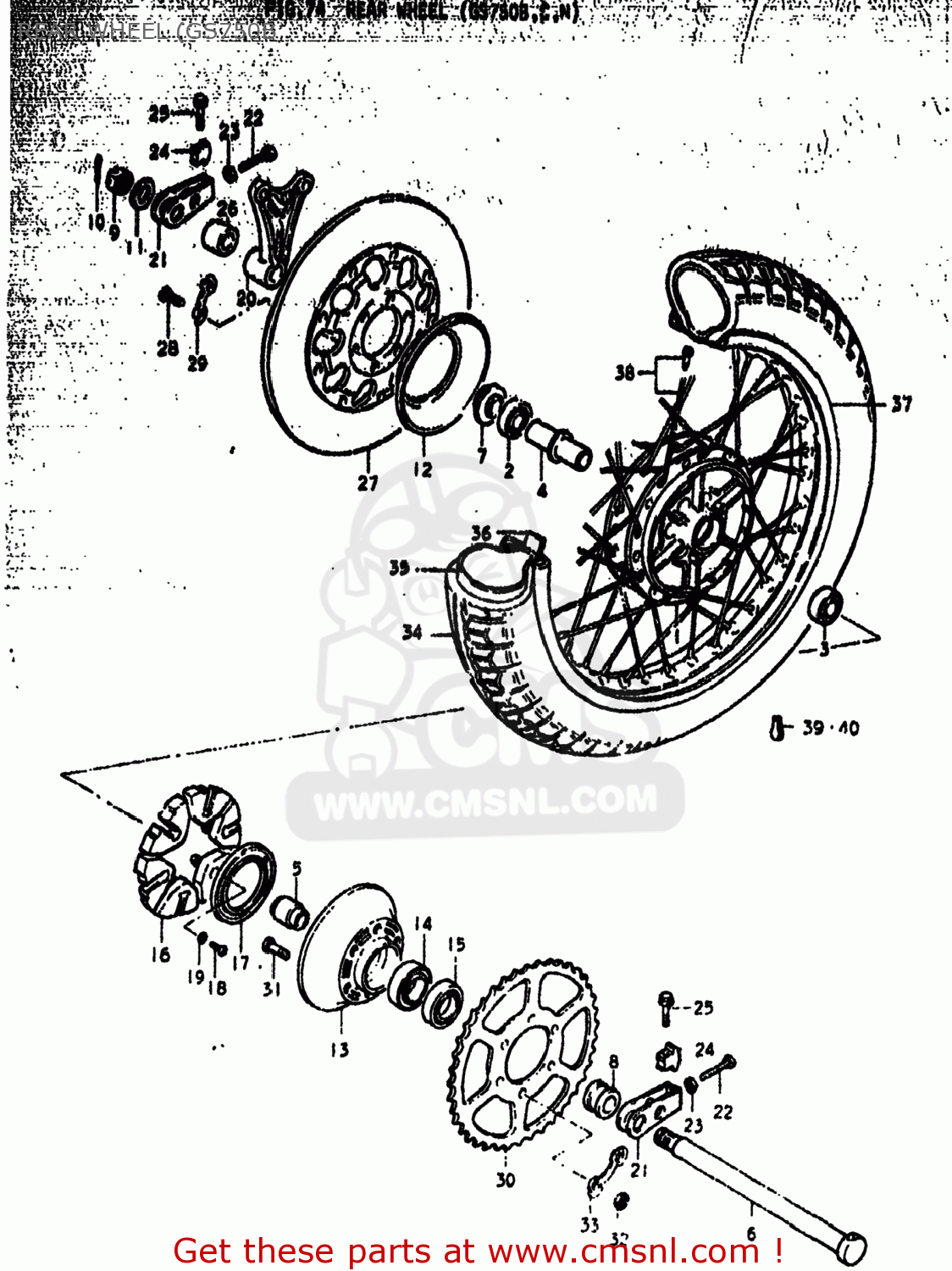

REAR WHEEL (GS750B

ref

part #

description

quantity

1-1

6411045000
ref: 1-1
64110-45001

DRUM,REAR HUB

€ 520.00

1-2

6411045001
ref: 1-2

DRUM,REAR HUB

€ 520.00

2-1

0812362040
ref: 2-1
08123-62047

BEARING

€ 17.00

2-2

0812362047
ref: 2-2

BEARING

€ 17.00

3-1

0814362040
ref: 3-1
09262-20042

BEARING, LH

€ 21.00

3-2

0814362047
ref: 3-2
09262-20042

BEARING, LH

€ 21.00

4

6473045000
ref: 4

SPACER,REAR HUB BEARING

€ 15.50

5

6473331000
ref: 5
64733-3100V

SPACER,REAR HUB BEARING

€ 20.00

6

6471137000
ref: 6

AXLE,REAR

€ 49.00

7-1

6474045000
ref: 7-1
64740-45002

SPACER,REAR AXLE

€ 15.00

7-2

6474045001
ref: 7-2
64740-45002

SPACER,REAR AXLE

€ 15.00

8

0918020054
ref: 8

SPACER(20X33X28.3)

€ 13.00

9

0831431188
ref: 9
08314-3118A

NUT 18MM

€ 5.00

10

0411140308
ref: 10
04111-4030A

PIN,COTTER

€ 1.50

11

0916019008
ref: 11

WASHER(19X34X4)

€ 3.00

12

6417145000
ref: 12

COVER,REAR WHEEL HUB

€ 10.00

13

6461131000
ref: 13
64611-31003

DRUM,REAR SPROCKET MOUNT

€ 140.00

14-1

0811363054
ref: 14-1
09262-25073

BEARING

€ 21.50

14-2

0811363057
ref: 14-2
09262-25073

BEARING

€ 21.50

15

0928533001
ref: 15

SEAL,OIL(33X62X7)

€ 20.00

16

6465131000
ref: 16
64651-31001

ABSORBER,REAR HUB SHOCK

€ 9.50

17

6467145000
ref: 17

PLATE,REAR HUB SHOCK ABSORBER

€ 11.00

18

0211205108
ref: 18
02112-05107

SCREW

€ 2.00

19

0832121058
ref: 19
08321-0105A

LOCK WASHER

€ 2.00

20-1

6972145000
ref: 20-1

BRACKET,REAR CALIPER

€ 36.00

20-2

6972147010
ref: 20-2
69721-47011

BRACKET,REAR CALIPER

€ 29.00

20-3

6972147011
ref: 20-3

BRACKET,RR,CALIPER

€ 29.00

21

6141031000
ref: 21
61410-31001

ADJUSTER,CHAIN

€ 50.00

22

0910408006
ref: 22
09104-08034

BOLT

€ 3.00

23

0831012088
ref: 23
08310-00087

NUT

€ 2.00

24

6143331000
ref: 24
61433-3100V

SUPPORTER,CHAIN ADJUST

€ 22.50

25

0151708406
ref: 25
01550-0840A

BOLT,FRONT

€ 3.50

26

0918020060
ref: 26

SPACER(20X38X12)

€ 6.50

27-1

5921037001
ref: 27-1

DISC,BRAKE

€ 227.00

27-2

5921018401
ref: 27-2
59210-18402

DISC,BRAKE

€ 208.50

28

0910008094
ref: 28

BOLT(8X30)

€ 2.50

29

0916908016
ref: 29

WASHER

€ 3.50

30

6451145000
ref: 30
64511-45001

SPROCKET,REAR

€ 82.00

31

0911910002
ref: 31
09105-10001

BOLT

€ 3.50

32

0831012108
ref: 32
08310-00107

NUT

€ 2.50

33

0916910007
ref: 33

WASHER

€ 7.50

34-1

6510045610
ref: 34-1
65100-45035

TIRE

€ 85.50

34-2

6510045035
ref: 34-2

TIRE

€ 85.50

35

6520015011
ref: 35
65200-49015

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

36

6526115010
ref: 36
55261-11010

PROTECTOR,WHEEL,INNER

€ 3.50

37

6531115021
ref: 37

RIM,WHEEL

€ 170.50

38-1

6530037811
ref: 38-1
65300-45811

SPOKE SET,REAR

€ 81.50

38-2

6530045810
ref: 38-2
65300-45811

SPOKE SET,REAR

€ 81.50

39

5541111000
ref: 39
55411-26G00

BALANCER,WHEEL (B)

€ 4.50

40

5541211000
ref: 40
55413-41F00

BALANCER,WHEEL (30G)

€ 8.00

all assemblies
