AIR CLEANER

GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

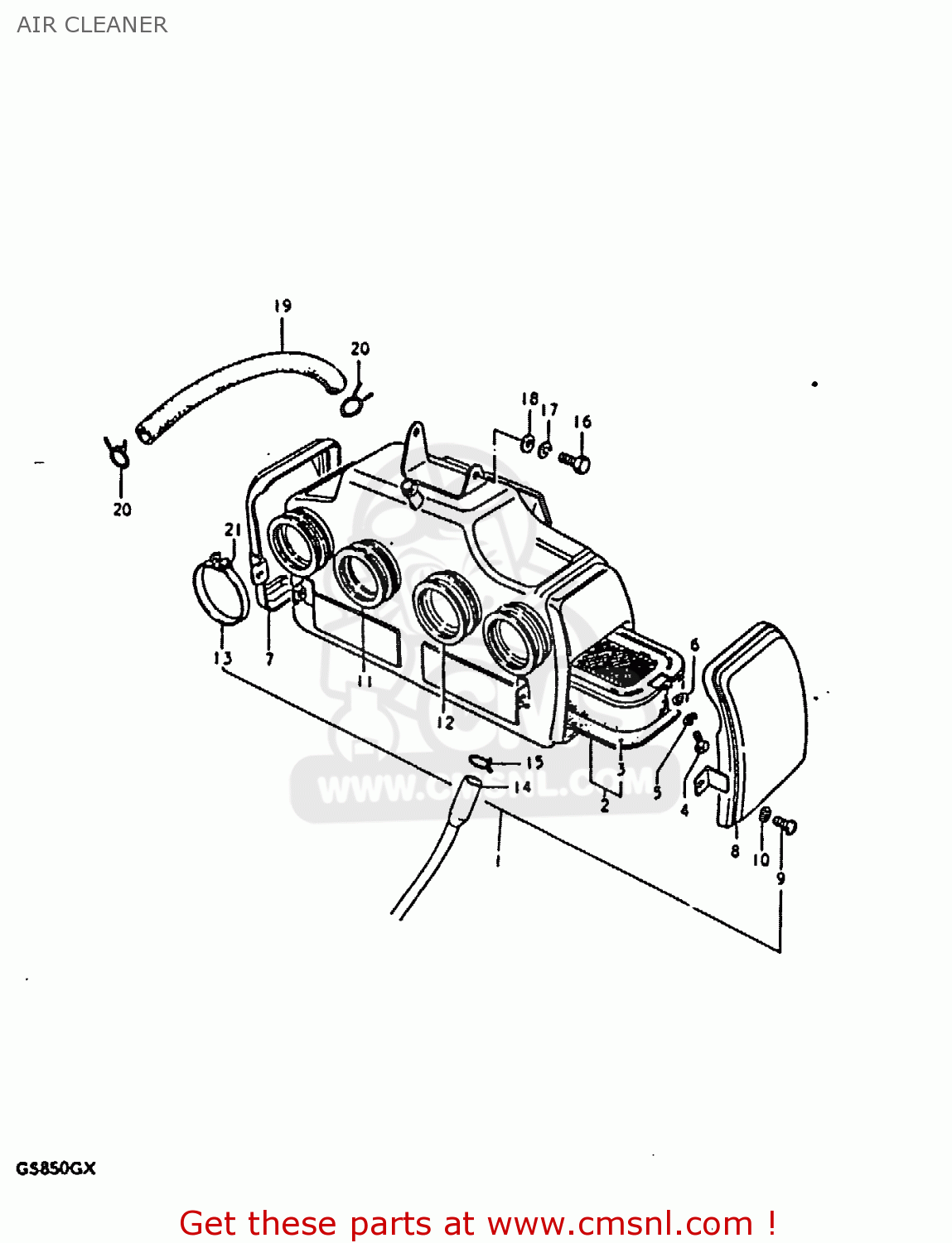

Air cleaner diagram GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

AIR CLEANER GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

AIR CLEANER GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

prices are in EUR

ref

part #

description

quantity

1

1370045030
ref: 1

CLEANER ASSEMBLY,AIR

€ 255.50

2

1378045010
ref: 2

FILTER ASSY,AIR CLEANER

€ 67.50

3

1378145010
ref: 3

FILTER

€ 37.50

4

0211205108
ref: 4

SCREW

€ 2.00

5

0832121058
ref: 5

LOCK WASHER

€ 2.00

6

0832221058
ref: 6

WASHER

€ 2.50

7

1374145030
ref: 7
TO 13741-45020

CAP,AIR CLEANER

€ 54.00

8

1374245030
ref: 8
TO 13742-45020

COVER, LH

€ 54.00

9

0211205108
ref: 9

SCREW

€ 2.00

10

0832221058
ref: 10

WASHER

€ 2.50

11

1388145030
ref: 11

HOSE,R

€ 24.00

12

1388245030
ref: 12

HOSE,L

€ 17.00

13

0940258206
ref: 13

CLAMP

€ 5.00

14-1

1372945010
ref: 14-1

1372945010

14-2

1372945011
ref: 14-2

1372945011

15-1

1372645010
ref: 15-1

1372645010

15-2

1372645011
ref: 15-2

1372645011

16

0110706128
ref: 16

BOLT

€ 2.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0832211068
ref: 18

WASHER 6MM

€ 2.00

19

0934311001
ref: 19

HOSE

€ 30.00

20

0940115301
ref: 20

CLIP

€ 2.50
