CYLINDER HEAD COVER

GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

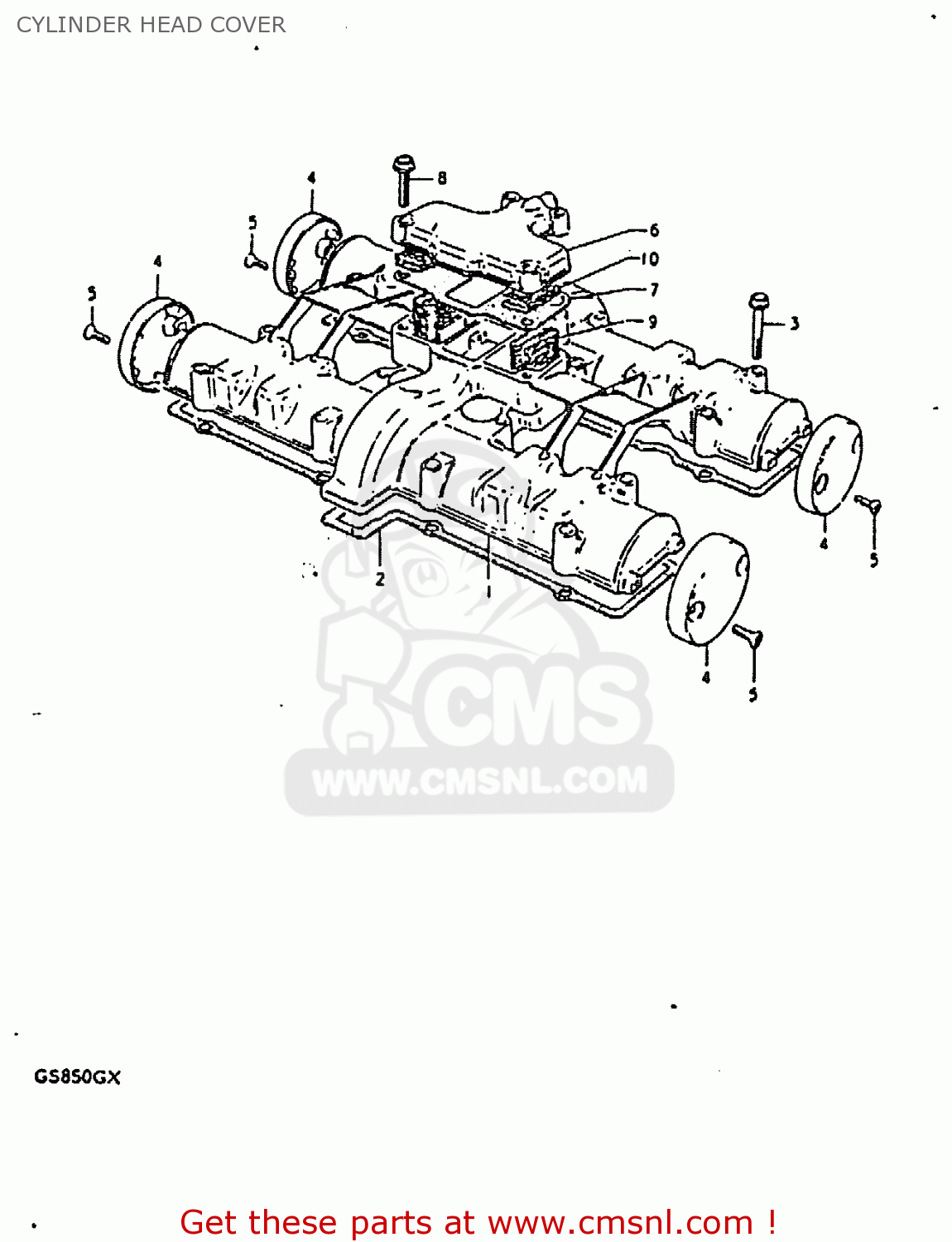

Cylinder head cover diagram GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

prices are in EUR

ref

part #

description

quantity

1117145000
ref: 1

COVER,CYLINDER HEAD

€ 270.50

1117345002
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 227.50

0151706408
ref: 3

BOLT

€ 2.50

4-1

1117445000
ref: 4-1
MODEL T

CAP,CYLINDER HEAD COVER

€ 38.00

4-2

1117449000
ref: 4-2
MODEL X

CAP,CYLINDER HEAD COVER

€ 38.00

0213205127
ref: 5

SCREW 5X12

€ 2.50

1117645010
ref: 6

COVER,BREATHER

€ 32.50

1117745000
ref: 7

GASKET (MCA)

€ 9.00

0151706258
ref: 8

BOLT

€ 2.50

1118645000
ref: 9

COVER,BREATHER

€ 5.50

1118745000
ref: 10

SEPARATOR,OIL BREATHER

€ 6.50
