CRANKCASE

GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

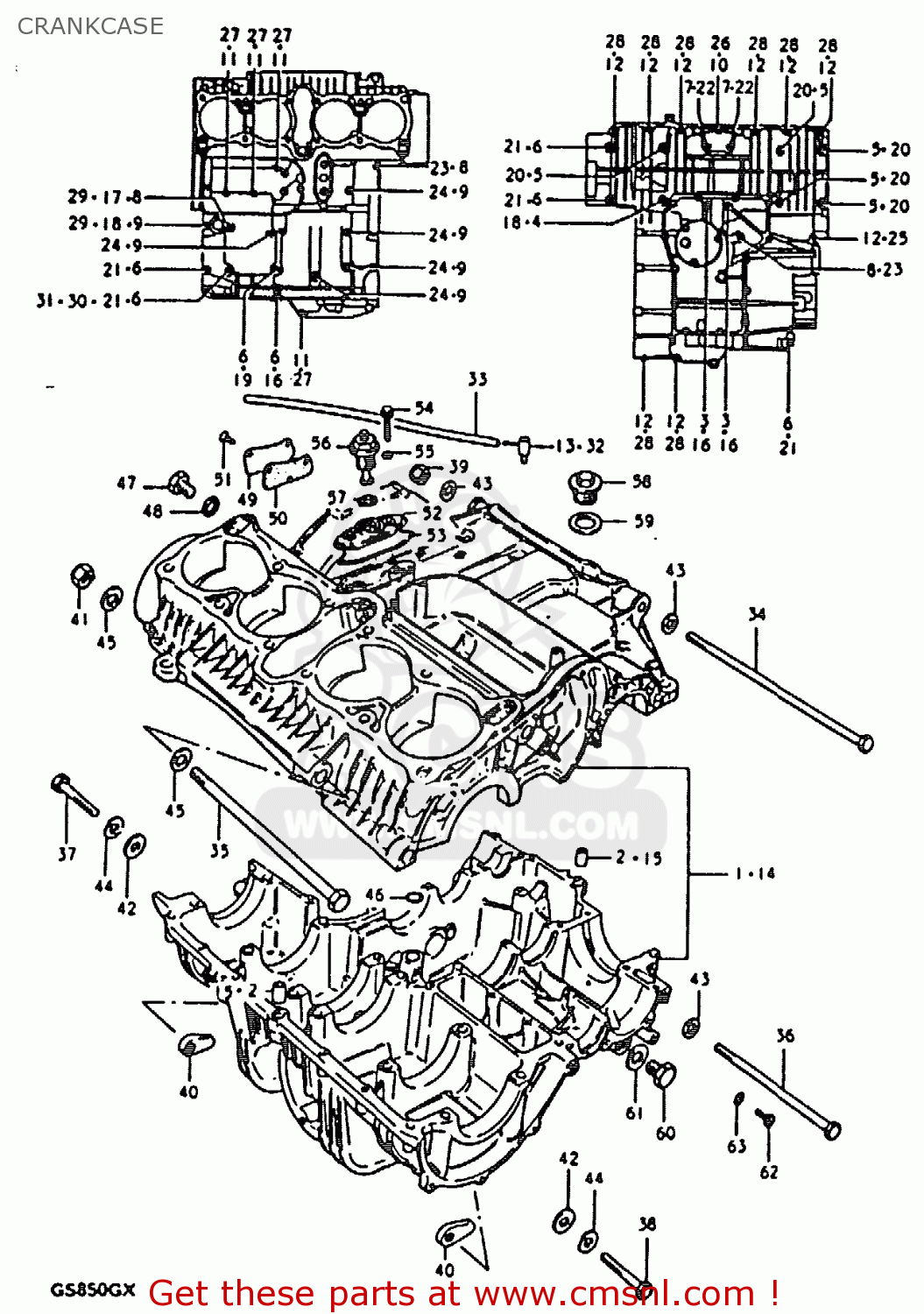

Crankcase diagram GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

CRANKCASE GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39
CRANKCASE GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39
CRANKCASE GS850G 1981 (X) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39
prices are in EUR
ref
part #
description
quantity
1
1130045821
ref: 1
MODEL T, TO 11300-45
CRANKCASE SET
€ 1,308.50
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0910308020
ref: 3
BOLT
€ 8.00
4
0910308009
ref: 4
BOLT
0910308009
€ 5.00
5
0151708908
ref: 5
BOLT 8X90
€ 3.50
6
0151708658
ref: 6
BOLT 8X65
€ 3.00
7
0151708608
ref: 7
BOLT
€ 3.50
8
0151706908
ref: 8
BOLT (6X90)
€ 2.00
9
0151706758
ref: 9
BOLT (6X75)
€ 2.50
10
0151706508
ref: 10
BOLT ,6X50
€ 2.00
11
0151706458
ref: 11
BOLT,UNDER
0151706458
€ 2.50
12
0151706358
ref: 12
BOLT 6X35
0151706358
€ 2.50
13
2482145100
ref: 13
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
14
1130045822
ref: 14
MODEL T, X
CRANKCASE SET
€ 1,308.50
15
0920613001
ref: 15
PIN
0920613001
€ 2.50
16
0910308020
ref: 16
BOLT
€ 8.00
17
0910308046
ref: 17
BOLT
€ 0.00
18
0910308009
ref: 18
BOLT
0910308009
€ 5.00
19
0910308023
ref: 19
BOLT
€ 3.00
20
0151708908
ref: 20
BOLT 8X90
€ 3.50
21
0151708658
ref: 21
BOLT 8X65
€ 3.00
22
0151708608
ref: 22
BOLT
€ 3.50
23
0151706908
ref: 23
BOLT (6X90)
€ 2.00
24
0151706758
ref: 24
BOLT (6X75)
€ 2.50
25
0151706558
ref: 25
BOLT
€ 2.50
26
0151706508
ref: 26
BOLT ,6X50
€ 2.00
27
0151706458
ref: 27
BOLT,UNDER
0151706458
€ 2.50
28
0151706358
ref: 28
BOLT 6X35
0151706358
€ 2.50
29
0831311088
ref: 29
NUT
0831311088
€ 2.50
30
0831616088
ref: 30
NUT
0831616088
€ 2.50
31
0916808008
ref: 31
GASKET 8.2X14X1 (NAS)
0916808008
€ 1.00
32
2482145100
ref: 32
BPLUG,BEVEL GEAR BREATHER
2482145100
€ 7.00
33
0934302016
ref: 33
HOSE
€ 12.00
34
0910010074
ref: 34
BOLT 10X270
0910010074
€ 15.50
35
6121139000
ref: 35
FROM 09100-12022
SHAFT,REAR SWING ARM
6121139000
€ 15.00
36
0910010078
ref: 36
BOLT(10X165)
0910010078
€ 10.50
37
0110710608
ref: 37
BOLT 10X60
€ 3.50
38
0110710508
ref: 38
BOLT (10X50)
€ 7.00
39
0915910011
ref: 39
NUT
0915910011
€ 3.00
40
0915910020
ref: 40
NUT
0915910020
€ 7.50
41
0831921128
ref: 41
NUT 12MM
0831921128
€ 4.00
42
0916010005
ref: 42
WASHER(10.5X20X3.2)
0916010005
€ 2.00
43
0832211108
ref: 43
WASHER
€ 2.50
44
0832121108
ref: 44
LOCK WASHER
0832121108
€ 2.00
45
0832211126
ref: 45
WASHER
€ 2.00
46
0928013001
ref: 46
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
47
0924714012
ref: 47
PLUG (14X12)
0924714012
€ 3.50
48
0916814004
ref: 48
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
49
1139445000
ref: 49
CAP,OIL GALLERY
1139445000
€ 6.50
50
1149745000
ref: 50
GASKET,OIL GALLERY (MCA)
1149745000
€ 13.00
51
0212206168
ref: 51
SCREW
0212206168
€ 2.00
52
1644545000
ref: 52
HOUSING,OIL PRESSURE SWITCH
1644545000
€ 28.00
53
1644845000
ref: 53
O RING,PRESSURE SWITCH HOUSING
1644845000
€ 10.50
54
0151706258
ref: 54
BOLT
0151706258
€ 2.50
55
0916806009
ref: 55
GASKET (NAS)
0916806009
€ 2.00
56
3782045050
ref: 56
SWITCH ASSEMBLY
3782045050
€ 30.00
57
0928019001
ref: 57
O RING(D:1.9,ID:18.8)
0928019001
€ 1.50
58
0924720002
ref: 58
PLUG
0924720002
€ 4.50
59-1
0916820001
ref: 59-1
MODEL T
GASKET (NAS)
€ 1.50
59-2
0916820004
ref: 59-2
MODEL X
GASKET
€ 1.50
60
0924714014
ref: 60
PLUG
€ 5.50
61
0916814004
ref: 61
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
62
0912806004
ref: 62
SCREW(6X10)
0912806004
€ 1.50
63
0916806009
ref: 63
GASKET (NAS)
0916806009
€ 2.00
