CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3)

GSF1200 BANDIT 2003 (K3) USA (E03)

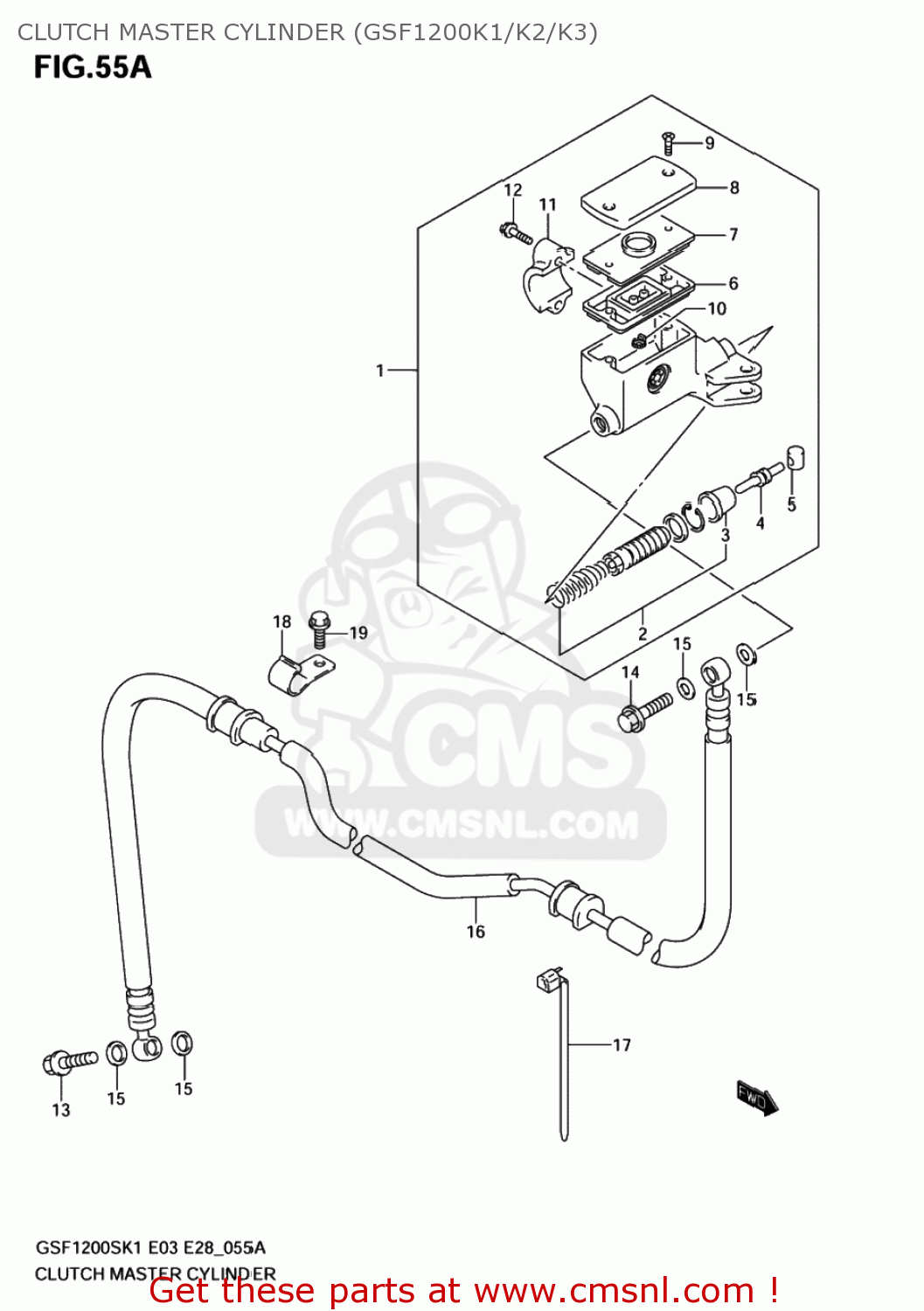

Clutch master cylinder (gsf1200k1/k2/k3) diagram GSF1200 BANDIT 2003 (K3) USA (E03)

CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200 BANDIT 2003 (K3) USA (E03)
CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200 BANDIT 2003 (K3) USA (E03)
CLUTCH MASTER CYLINDER (GSF1200K1/K2/K3) GSF1200 BANDIT 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5980032F00
ref: 1
CYLINDER ASSY,
€ 292.50
2
5980008810
ref: 2
PISTON & CUP SET
5980008810
€ 36.50
3
5966644300
ref: 3
BOOT
5966644300
€ 6.00
4
5987138A00
ref: 4
PUSH ROD
5987138A00
€ 6.50
5
5989208A00
ref: 5
BUSH
5989208A00
€ 5.50
6
5966749460
ref: 6
5966749460
7
5966841C00
ref: 7
PLATE,DIAPHRAGM
5966841C00
€ 8.00
8
5966910G00
ref: 8
CAP
5966910G00
€ 19.00
9
6968949300
ref: 9
SCREW
6968949300
€ 1.50
10
5966432F00
ref: 10
PROTECTOR
5966432F00
€ 7.50
11
5967132F00
ref: 11
HOLDER
5967132F00
€ 17.00
12
5967502FA0
ref: 12
BOLT(6X22)
5967502FA0
€ 3.00
13
0936010041
ref: 13
09360-10061
BOLT UNION
€ 6.50
14
0936010042
ref: 14
09360-10062
BOLT UNION
0936010042
€ 5.00
15
0916110009
ref: 15
WASHER(10X15X1.5)
0916110009
€ 2.00
16
5991032F00
ref: 16
59910-32F11
HOSE, CLUTCH
€ 160.00
17
0940714403
ref: 17
CLAMP(L:125)
0940714403
€ 2.50
18
5991532F00
ref: 18
CLAMP,CLUTCH HOSE NO.1
€ 5.00
19
0154706123
ref: 19
01547-0612B
BOLT
0154706123
€ 2.00
