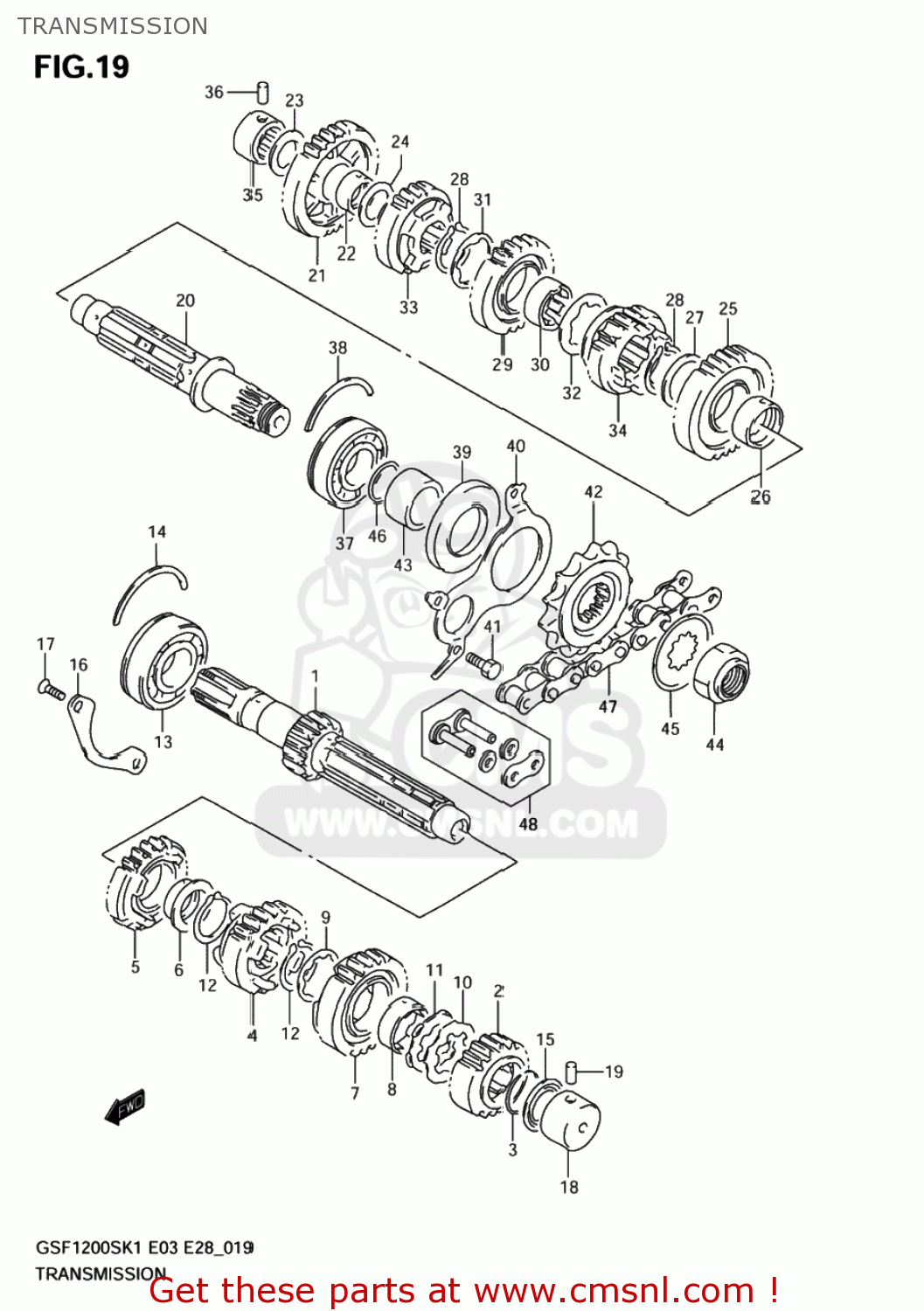

TRANSMISSION

ref

part #

description

quantity

1

2412140C21
ref: 1

SHAFT,COUNTER(NT:13)

€ 260.50

2

2422140C00
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 79.50

3

0938025013
ref: 3

CIRCLIP

€ 3.00

4

2423148B02
ref: 4
24231-48B10

GEAR,3RD DRIVE

€ 174.50

5

2424148B10
ref: 5
24241-48B50

GEAR,FOURTH DRIVE (NT:22)

€ 162.00

6

0930125001
ref: 6
24322-19F00

BUSHING

€ 12.50

7

2425148B02
ref: 7
24251-48B30

GEAR,FIFTH DRIVE (NT:23)

€ 145.50

8

2425248B00
ref: 8

BUSH,5TH DRIVE GEAR

€ 18.00

9

0916725021
ref: 9

WASHER,LOCK

€ 3.00

10

0916725013
ref: 10

WASHER,LOCK

€ 2.50

11

0916925001
ref: 11

WASHER

€ 2.00

12

0938025003
ref: 12

RING,SNAP

€ 3.00

13

0926225051
ref: 13
09262-25105

BEARING(25X62X17)

€ 59.50

14

0939062012
ref: 14

C RING

€ 5.00

15

0928520006
ref: 15

SEAL,OIL(20X31.2X2.7)

€ 7.00

16

2474127A00
ref: 16

RETAINER,CNTR SHAFT BEARING

€ 7.00

17

0912606011
ref: 17

SCREW(6X12)

€ 2.00

18

0926320049
ref: 18

BEARING(20X34X17.5)

€ 58.00

19

0422107129
ref: 19

PIN

€ 1.50

20

2413140C21
ref: 20

SHAFT,DRIVE

€ 233.00

21

2431148B20
ref: 21

GEAR,1ST DRIVEN(NT:31)

€ 109.00

22

2431202F00
ref: 22

BUSH

€ 19.50

23

0918120251
ref: 23

SHIM(20X34X1)

€ 3.00

24

0918122223
ref: 24

SHIM(22X34X1)

€ 3.00

25

2432148B10
ref: 25

GEAR,2ND DRIVEN(NT:31)

€ 132.50

26

0930028002
ref: 26

BUSH(28X32X11)

€ 15.50

27

0918128167
ref: 27

SHIM(28X36X1)

€ 5.00

28

0833131286
ref: 28
08331-3128A

CIRCLIP

€ 2.50

29

2433148B03
ref: 29
24331-48B30

GEAR,THIRD DRIVEN (NT:25)

€ 130.50

30

2433248B01
ref: 30

BUSH,3RD DRIVEN GEAR

€ 28.50

31

0916728001
ref: 31

WASHER,LOCK

€ 3.00

32

0916728008
ref: 32

WASHER,LOCK

€ 6.00

33

2434106B01
ref: 33
24341-06B30

GEAR,FOURTH DRIVEN (NT:23)

€ 136.00

34

2435148B06
ref: 34

GEAR,5TH DRIVEN(NT:21)

€ 132.00

35

0926320040
ref: 35

BEARING(20X34X20)

€ 42.50

36

0422107209
ref: 36

PIN

€ 1.50

37

0926725011
ref: 37

BEARING(25X62X21.6)

€ 136.00

38

0939062012
ref: 38

C RING

€ 5.00

39

0928334005
ref: 39

SEAL,OIL(34X62X6)

€ 14.50

40

2475140C01
ref: 40

RETAINER,DRIVE SHAFT OIL SEAL

€ 7.00

41

0150006123
ref: 41
01500-0612A

BOLT

€ 2.00

42

2751017C10
ref: 42

SPROCKET,ENGINE(NT:15)

€ 67.00

43

0918025100
ref: 43

SPACER(25X34X19)

€ 23.50

44

0915920004
ref: 44

NUT

€ 12.00

45

0916725019
ref: 45

WASHER,LOCK

€ 2.50

46

0928025001
ref: 46

O RING(D:1,ID:24.5)

€ 2.50

47

2760024F10110
ref: 47
27600-24F50-112

CHAIN ASSEMBLY RK GB50GSVZ

€ 234.50

48

2762024F00
ref: 48

JOINT SET,DRIVE CHAIN

€ 16.50
